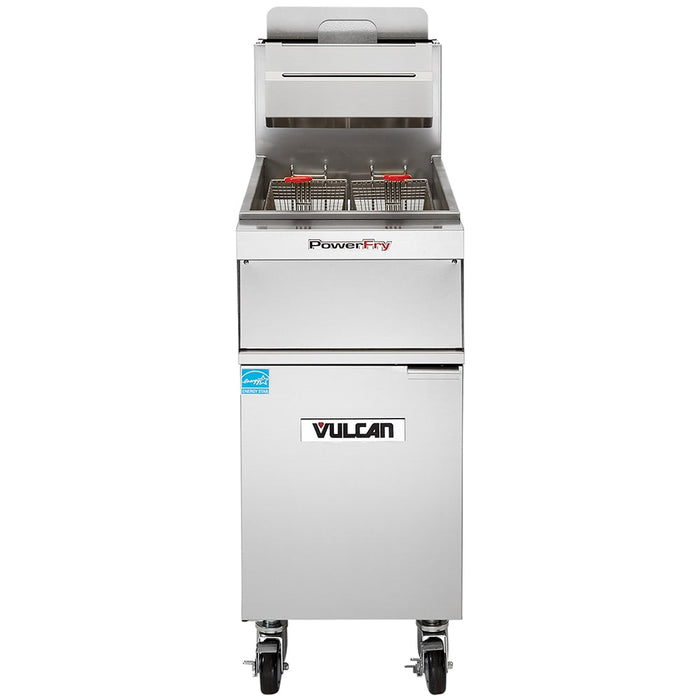

Vulcan 1TR45AF Gas Fryer - (1) 50 Lb Vat, Floor Model, Liquid Propane
The Vulcan 1TR45AF PowerFry3® fryer has a stainless steel fry tank with a capacity of 45-50 pounds. Two fry baskets are included to fry two batches of product at once, and it adjusts from 200 to 390 degrees Fahrenheit to suit different applications. It idles to maintain the cooking temperature while saving energy, and the ThreePass® heat transfer system increases cooking efficiency. To extend the life of the oil and lower the BTUs, the unit uses a SoftStart® ignition system. A tank brush and clean-out rod simplify cleaning, and the unit can be moved on 6-inch adjustable casters. Two of the casters lock to hold the unit in place while cooking.
A KleenScreen PLUS® filtration system is built into the Vulcan 1TR45AF PowerFry3 fryer to ensure oil does not transfer flavors from previous batches. The filter pan is made of stainless steel and has a 70-pound capacity. With the 1/3 horsepower motor and pump, the frying compound is circulated at 8 gallons per minute. These parts are activated with a one-touch push button switch. When oil is draining, the gas burners automatically shut off through the interlock switch.
- Heated by propane
- 45-50 lb. oil capacity in the stainless steel fry tank
- Twin fry baskets for preparing 2 batches at the same time
- Solid state control system adjusts from 200-390 degrees F
- Idles at 4,318 BTU to maintain temperature while saving energy
- ThreePass heat transfer system increases cooking efficiency
- SoftStart ignition system extends oil life and lowers BTUs
- Hi-limit shut-off turns the gas valve off and extinguishes the pilot if shortening gets too hot
- Stainless steel cabinet is heavy duty for consistent use
- 2 of (4) 6-in. adjustable casters lock in place
- Comes with a tank brush for removing debris
- Clean-out rod enables users to carefully stir hardened shortening above the cold zone where it can melt
- 70,000 BTU
- Overall dimensions: 15 1/2 in. W x 30 1/8 in. D x 50 1/4 in. H
- 70-lb. capacity, seamless, stainless steel filter pan
- Stainless steel mesh screen filters from both sides
- Motor and pump circulate the compound at 8 gal. per min.
- One-touch push button engages motor and pump
- Drain valve interlock switch automatically turns off gas burners when oil is draining
- 115 V/60 Hz/1 ph, 6 A, 1/3 HP
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 70000 |
| Capacity (lbs) | 50 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 50 |
| Oil Capacity/Fryer (lb) | 50 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Built In Filter |
| Special Features | Casters Included - Uninstalled |
| Special Features | High Efficiency |
| Special Features | Melt Cycle |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 15.5 |
| Weight | 230.00 |
