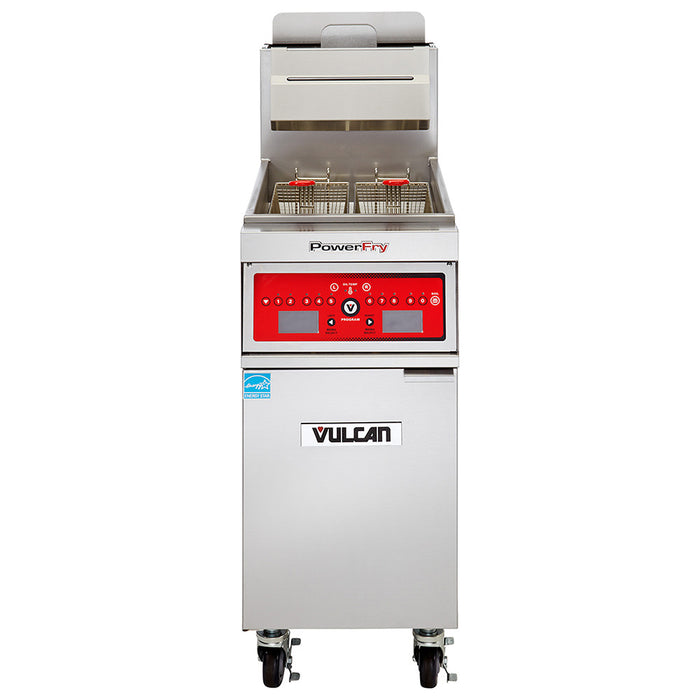

Vulcan 1TR45C Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas
The Vulcan 1TR45C gas fryer has a vat that can support 45 to 50 pounds of oil, which can be heated to temperatures between 200 and 390 degrees Fahrenheit. Its body features a stainless steel construction and measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high. To simplify transportation, it rests on four 6-inch casters, two of which can be locked for stability during use. It comes with two 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high frying baskets that feature plastic coated handles.
Powered by natural gas, the Vulcan 1TR45C PowerFry3® fryer comes with several features to create high-quality fried chicken, onion rings, or donuts. Its ThreePass® heating system offers three melt cycles to accommodate various shortening types, and it increases the heat transfer area to maximize efficiency. Its SoftStart® electronic ignition system outputs 35,000 BTU per hour during startup, while its maximum output is 70,000 BTU; when idle, it lowers output to only 4,318 BTU per hour.
- Part of the PowerFry3 series
- 45-50-lb. capacity
- Temperature range: 200-390 degrees F
- Freestanding unit with 1 frypot
- Stainless steel cabinet and fry tank
- Includes twin baskets with plastic handles
- SoftStart ignition system minimizes scorching risks and outputs only 35,000 BTU per hour
- Energy-efficient ThreePass heat transfer system extends oil life
- Electronic matchless ignition
- Three melt modes
- Outputs 4,318 BTU per hour when idle
- Hi-limit shutoff prevents overheating
- (4) 6-in. adjustable casters (2 locking)
- Includes tank brush and clean-out rod
- 1 1/4 in. full port ball-type drain valve
- 36 1/4-in. working height
- Programmable
- Digital character display
- Stores 10 menu timers with product name and cook time
- Offers offline programming with USB (software included)
- Can display compensating time or actual time and temperatures in Fahrenheit or Celsius
- ThreePass heat transfer mechanism
- Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
- Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
- NG powered
- 70,000 BTU output
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 70000 |
| Capacity (lbs) | 50 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 50 |
| Oil Capacity/Fryer (lb) | 50 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 15.5 |
| Weight | 230.00 |
