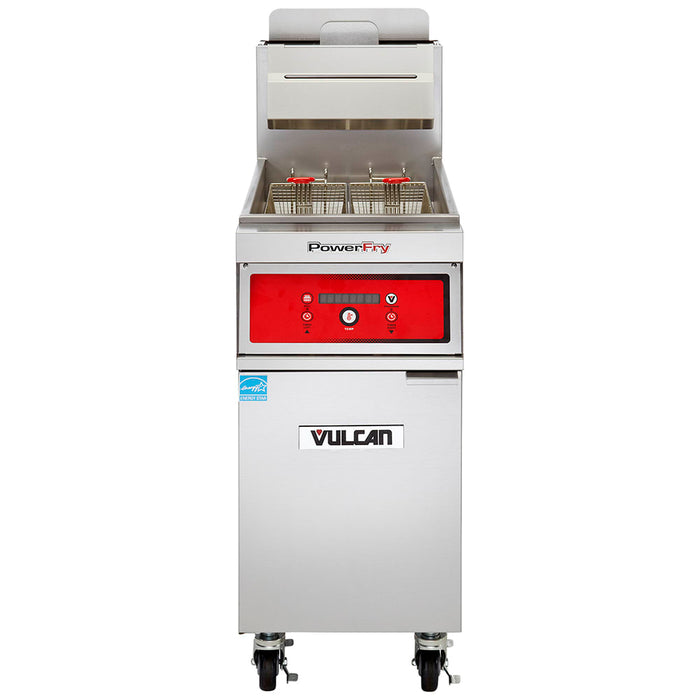

Vulcan 1TR45DF Gas Fryer - (1) 50 Lb Vat, Floor Model, Liquid Propane
Designed for evenly frying okra, onion rings, dumplings, or other breaded foods, the Vulcan 1TR45DF PowerFry3® fryer is fueled by liquid propane and has a total output of 70,000 BTU per hour. Its SoftStart® electronic ignition lowers energy expenditure to 35,000 BTU during startup to prevent oil from scorching, and when idle, it outputs only 4,318 BTU. Operators can set temperatures between 200 and 390 degrees Fahrenheit with the digital display, and the unit's ThreePass® heat transfer system boasts 60.9 percent cooking efficiency with 72 percent thermal efficiency. Its KleenScreen PLUS® filtration system removes particles and food waste from the oil by filtering it through two sides, and the unit's three melt modes can accommodate various types of shortening.
The Vulcan 1TR45DF propane fryer's body is constructed of stainless steel, including its cabinet base and 50-pound-capacity vat. To reduce the risk of operator injury, its fryer baskets have plastic-coated handles, and because this fryer sits on four 6-inch adjustable casters, it's simple to transport; two casters can be locked into place to stop the unit from moving. This unit features solid-state digital controls that can display temperatures in Celsius or Fahrenheit and can track compensating or actual time to account for temperature fluctuations. Overall, it measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high and offers staff a 36 1/4-in. working height.
- Part of the PowerFry3 series
- 45-50-lb. capacity vat
- Temperature range: 200-390 degrees F
- Stainless steel fry tank and cabinet
- Twin baskets with plastic handles
- (4) 6-in. adjustable casters (2 locking)
- Three melt modes
- KleenScreen PLUS filtration system filters oil from two sides
- Outputs 4,318 BTU per hour when idle to conserve energy
- Hi-limit shutoff prevents overheating
- Includes tank brush and clean-out rod
- 36 1/4-in. working height
- 1 1/4 in. full port ball-type drain valve
- Digital display with two countdown timers
- Auto boil-out mode
- Can cook with compensating time or actual time
- Offers Fahrenheit or Celsius temperature readings
- ThreePass heat transfer mechanism
- Dimensions and Utilities
- Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
- Overall Dimensions: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
- 70,000 BTU output
- LP powered
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 70000 |
| Capacity (lbs) | 50 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 50 |
| Oil Capacity/Fryer (lb) | 50 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 15.5 |
| Weight | 230.00 |
