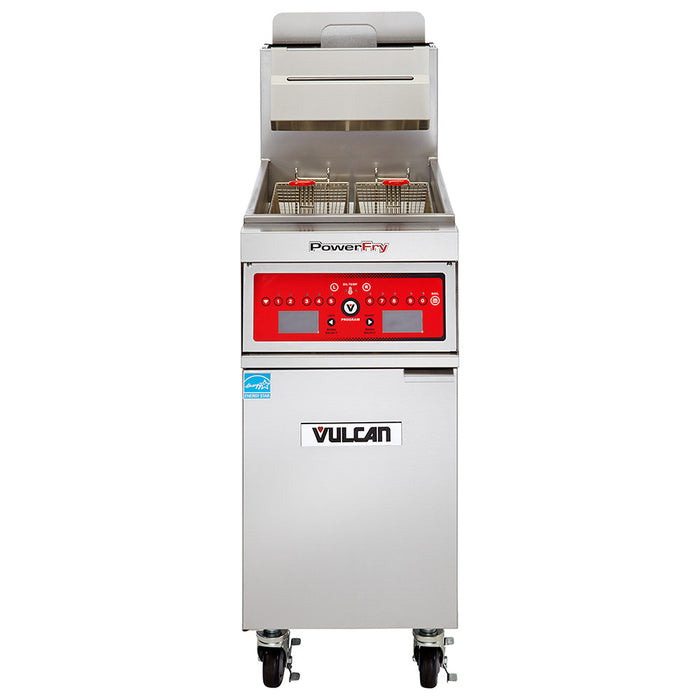

Vulcan 1TR65A Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

SKU 1TR65A-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$10,666.00
$10,666.00 - $10,666.00
Current price $10,666.00

For frying mozzarella sticks, chicken, fries, and other breaded foods, the Vulcan 1TR65A PowerFry3® gas fryer can accommodate 70 pounds of oil in its 19 1/2-inch-wide by 14-inch-deep vat. Operators can set the unit's temperature from 200 to 390 degrees Fahrenheit with the solid-state analog knob control located behind the door. For simple startup, this gas-powered fryer features an electronic ignition, and staff can select fat-melt modes to heat solid shortening. To save energy and extend oil life, its SoftStart® ignition system quickly heats oil with half of the unit's maximum BTUs per hour, and then to maintain an idle temperature, it only outputs 5,083 BTUs per hour. The ThreePass® heat transfer system uniformly distributes heat within the cooking oil to reduce recovery times and gas usage. At the maximum production rate, the flue doesn't exceed 750 degrees Fahrenheit. If unit temperature surpasses the set temperature range, the unit will automatically shut off for user safety.

The Vulcan 1TR65A commercial gas fryer is a 21-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall freestanding unit positioned on four 6-inch castersa€”two of which can be locked to ensure the unit remains stable during use. For user comfort, it provides a 36 1/4-inch working height. Two fryer baskets come with this fryer to secure products in place during the frying process, and their plastic-coated handles reduce the risk of heat transfer. For lasting durability, the cabinet and fry tank are made of stainless steela€”a durable, rust-resistant metal that can simply be wiped clean. This unit features a 1 1/4-inch port ball-type drain valve, a tank brush, and a clean-out rod to further ease cleaning.

  • Part of Vulcan's PowerFry3 series
  • 70-lb. vat capacity
  • Freestanding configuration
  • 36 1/4-in. working height
  • Stainless steel cabinet and fry tank
  • Positioned on (4) 6-in. adjustable casters (2 with locks)
  • Electronic matchless ignition
  • Solid-state analog knob control behind door
  • Operating temperature control: 200-390 degrees F
  • Selectable fat-melt modes
  • SoftStart ignition system outputs 40,000 BTUs per hour at startup
  • High-efficiency ThreePass heat transfer system for energy-saving oil heating
  • Maintains idle temperature with 5,083 BTUs per hour
  • Flue temperature remains below 750 degrees F at maximum production rate
  • Hi-limit shutoff
  • Includes 2 fryer baskets with plastic-coated handles
  • 1 1/4-in. port ball-type drain valve
  • Comes with tank brush and clean-out rod
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 80,000 BTU

  • Tank: 19 1/2 in. W x 14 in. D
  • Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
  • Powered by LP gas
  • 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 80000
Capacity (lbs) 70
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 70
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 237.00
