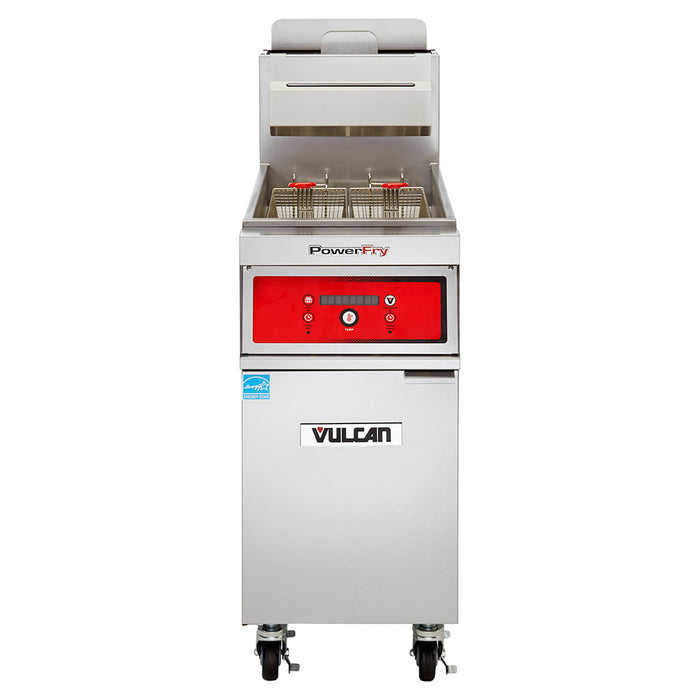

Vulcan 1TR65AF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane
The Vulcan 1TR65AF fryer outputs 80,000 BTUs per hour and is ideal for serving high volumes of deep fried chicken, okra, or fish. It's fueled by liquid propane and features an electronic ignition system for simple operation. To adjust temperatures between 200 and 390 degrees Fahrenheit, it's equipped with a solid-state analog knob control and user-selectable melt modes. When idle, it uses just 5,083 BTU per hour to maintain cooking temperature, and during startup, the SoftStart® ignition system uses 40,000 BTU an hour to prevent scorching and conserve energy. Its KleenScreen PLUS® filtration system prolongs oil life by filtering oil through two sides of a filtration screen, and its ThreePass® heat transfer system provides 72 percent thermal efficiency and 60.9 percent cooking efficiency for evenly cooked product.
Designed to fit most kitchens, the Vulcan 1TR65AF liquid propane fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high and rolls on four 6-inch casters, two of which lock for stability. Its vat holds 65 to 70 pounds of oil and accommodates two twin baskets with plastic-coated handles to reduce heat transfer to employees' hands. To withstand high-intensity kitchens, its cabinet and fry tank are constructed of stainless steel, which is durable and corrosion-resistant. Between oil changes, it can be cleaned with the auto boil-out mode and the included tank brush and clean-out rod.
- Part of the PowerFry3® series
- 65-70-lb. capacity
- Temperature range: 200-390 degrees F
- Freestanding configuration
- Stainless steel cabinet and fry tank
- Metal twin baskets feature plastic-coated handles
- (4) 6-in. adjustable casters (2 locking)
- KleenScreen PLUS filtration system filters oil through double-sided fabric screen
- 1 1/4-in. full port ball-type drain valve
- Solid-state analog knob control behind door
- User-selectable melt cycles for various shortening types
- ThreePass heat transfer system
- SoftStart® electronic ignition system minimizes scorching risks and outputs only 40,000 BTU per hour
- Outputs 5,083 BTU per hour when idle while preserving cooking temperatures
- Hi-limit shutoff prevents overheating
- Includes tank brush and clean-out rod
- 36 1/4-in. working height
- Fry tank: 19 1/2 in. W x 14 in. D
- Twin Baskets: 9 1/4 in. W x 13 1/4 in. D x 6 in. H
- Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
- 80,000 BTU output
- LP gas powered
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 380.00 |
