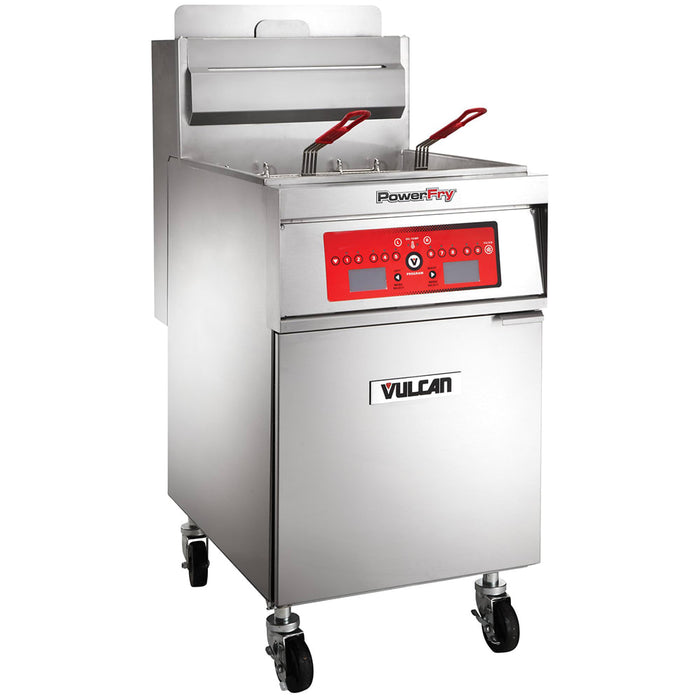

Vulcan 1TR65C Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

SKU 1TR65C-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$12,737.00
$12,737.00 - $12,737.00
Current price $12,737.00

Ideal for frying fish sticks, french fries, mozzarella sticks, and chicken for medium- and high-traffic establishments, the Vulcan 1TR65C PowerFry3® commercial gas fryer's 19 1/2-inch-wide by 14-inch-deep frypot can accommodates 70 pounds of cooking oil. Its twin fryer baskets keep product in place as they're lowered into the frypot and lifted from the oil. Each basket's handle is coated in plastic to minimize heat transfer and enhance user safety. So staff can work at a comfortable 36 1/4-inch cooking height, this unit measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall. Because it's fitted with smooth-rolling casters, it can be wheeled out of the way for cleaning or maintenance; two of the casters can be locked to secure the unit in place during use. The cabinet and frypot are made of stainless steel for long-term corrosion resistance and durability.

Operators can set the Vulcan 1TR65C floor-model natural gas fryer's temperature from 200 to 390 degrees Fahrenheit using the digital temperature controls. Users can program 10 menu timers, eliminating the need to repeatedly set specific timers for commonly ordered foods. Employees can even program menu items offline through a USB interface. To prolong oil life and save energy, this unit features a SoftStart® ignition system that outputs half of the unit's maximum BTUs per hour when initially heating cooking oil. Its ThreePass® heat transfer system effectively distributes heat throughout the oil to yield 72 percent thermal efficiency and 60 percent cooking efficiency. When the unit is operating at its maximum production rate, its flue doesn't exceed temperatures hotter than 750 degrees Fahrenheit. For simple cleanup, this unit features a 1 1/4-inch port ball-type drain valve, a tank brush, and a clean-out rod.

  • Part of the PowerFry3 series
  • Vat capacity: 70 lbs.
  • Electronic ignition
  • SoftStart ignition system outputs 40,000 BTUs per hour when initially heating oil
  • High-efficiency ThreePass heat transfer system uniformly distributes heat
  • Outputs 5,083 BTUs per hour to maintain warm temperatures
  • Flue temperature doesn't exceed 750 degrees F at maximum production rate
  • Hi-limit shutoff
  • Freestanding model
  • 36 1/4-in. working height
  • Durable, corrosion-resistant stainless steel cabinet and frypot
  • Positioned on (4) 6-in. adjustable casters (2 with locks)
  • Twin fryer baskets with plastic-coated handles
  • 1 1/4-in. port ball-type drain valve
  • Tank brush and clean-out rod included
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 80,000 BTU

  • Operating temperature control: 200-390 degrees F
  • Digital temperature display
  • Programmable computer controls with digital display
  • 10 menu options
  • USB interface facilities offline programming (software included)
  • 3 melt modes

  • Tank: 19 1/2 in. W x 14 in. D
  • Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
  • Powered by natural gas
  • 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
  • 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 80000
Capacity (lbs) 70
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 70
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 237.00
