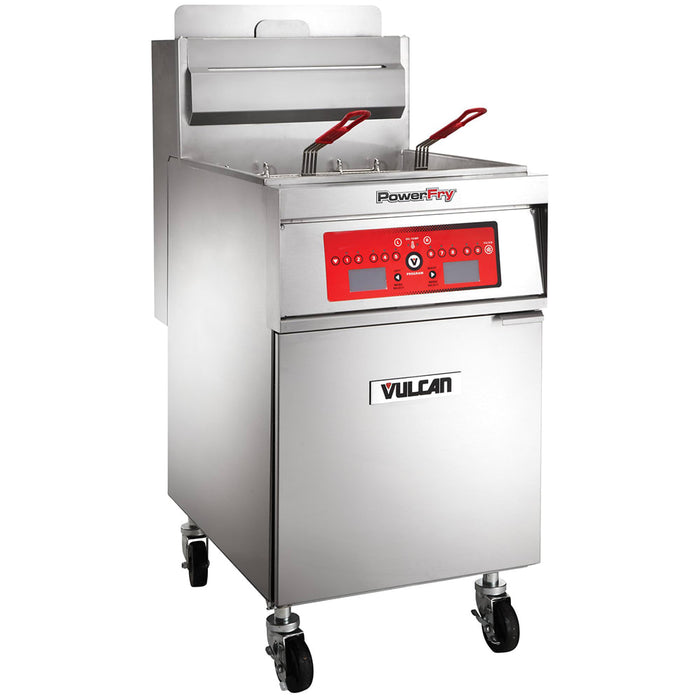

Vulcan 1TR65CF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

SKU 1TR65CF-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$21,082.00
$21,082.00 - $21,082.00
Current price $21,082.00

To simplify operation, the Vulcan 1TR65CF PowerFry3® gas fryer features electronic ignition, three melt modes, and programmable computer controls with a digital character display. Users can set 10 timers for 10 frequently made menu items, and the screen will display the product name and cook time. Staff can also use a USB interface to program menu items offline. The unit's temperature can be set from 200 to 390 degrees Fahrenheit, and a digital display provides an accurate readout so operators can ensure contents are cooked at the correct temperature.

This commercial freestanding fryer initiates the SoftStart® ignition mechanism when it begins to heat oil, outputting 40,000 BTUs per hour to save energy and extend the oil's life. Its ThreePass® system evenly distributes heat throughout the oil, yielding 60 percent cooking efficiency and 72 percent thermal efficiency and maintaining a flue temperature lower than 750 degrees Fahrenheit. To maintain oil temperatures, this system only outputs 5,083 BTUs per hour. The KleenScreen PLUS® filtration system helps operators save on oil costs by extending the oil life. Users can simply drain oil, press the filter button, and add oil as necessary.

To complement existing back-of-house equipment, the Vulcan 1TR65CF gas fryer's cabinet and frypot are made of strong, corrosion-resistant stainless steel. This 21-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall unit provides a comfortable 36 1/4-inch working height and is positioned on four 6-inch castersa€”two of which can be locked when the unit needs to be secured in place. The 19 1/2-inch-wide by 14-inch-deep fry tank accommodates between 65 and 70 pounds of oil and comes with twin fry baskets to secure breaded products in place during frying. To reduce the risk of heat transfer, the fryer baskets' handles are coated with plastic.

  • Part of the PowerFry3 collection
  • Fry tank capacity: 70 lbs. of oil
  • Freestanding model with 36 1/4-in. working height
  • Stainless steel cabinet and frypot
  • Positioned on (4) 6-in. adjustable casters (2 can be locked)
  • Electronic matchless ignition
  • SoftStart ignition system outputs 40,000 BTUs upon startup
  • High-efficiency ThreePass heat transfer system
  • Maintains idle temperature outputting 5,083 BTUs per hour
  • Flue temperature remains below 750 degrees F at maximum production rate
  • Hi-limit shutoff
  • Integrated KleenScreen PLUS filtration system
  • Includes twin fryer baskets with plastic-coated handles
  • 1 1/4-in. port ball-type drain valve
  • Includes tank brush and clean-out rod
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 80,000 BTU

  • Programmable computer controls with digital character display
  • 10 menu timers
  • USB interface enables offline programming
  • Operating temperature control: 200-390 degrees F
  • Temperature display in Fahrenheit or Celsius
  • 3 melt modes

  • Tank: 19 1/2 in. W x 14 in. D
  • Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
  • Powered by LP gas
  • 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
  • 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 80000
Capacity (lbs) 70
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 70
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 380.00
