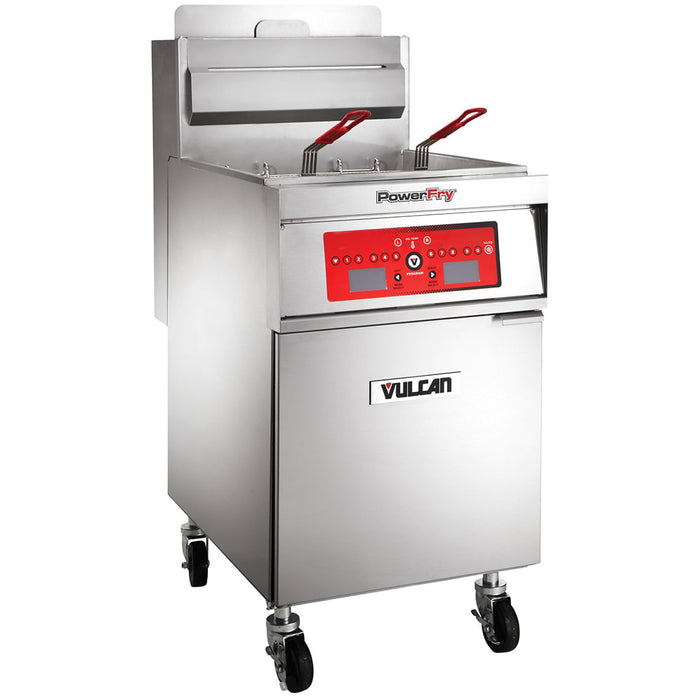

Vulcan 1TR65CF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

SKU 1TR65CF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$21,082.00
$21,082.00 - $21,082.00
Current price $21,082.00

Powered by natural gas, the Vulcan 1TR65CF commercial fryer can output 80,000 BTUs per hour. Designed to enhance energy efficiency, this unit features a SoftStart® ignition system that outputs 40,000 BTUs per hour when initially heating cooking oil, and its high-efficiency ThreePass® heat transfer system evenly distributes heat throughout the cooking oil to reduce recovery times and yield 60 percent cooking efficiency and 72 percent thermal efficiency. Once oil has reached the set temperature, the fryer outputs 5,083 BTUs per hour to maintain temperature. To simplify operation, it features 10 programmable menu timers, and users can set temperatures from 200 to 390 degrees Fahrenheit. A digital display provides an accurate readout of temperatures so users can ensure products are cooked at the right temperature. To extend oil life, this unit is built with a KleenScreen PLUS® filtration system, which filters oil with the push of a button.

The Vulcan 1TR65CF PowerFry3® freestanding gas fryer's 19 1/2-inch-wide by 14-inch-deep frypot accommodates as much as 70 pounds of oila€”great for cooking fries, chicken, fish sticks, or mozzarella sticks in medium- to high-volume establishments. Included fryer baskets ease inserting and removing product, and their plastic-coated handles reduce the risk of heat transfer. Both the fry tank and cabinet are made of rust- and corrosion-resistant stainless steel to withstand repeated back-of-house use and simplify cleaning. Overall, this unit measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall and features a 36 1/4-inch working height. So the unit can be repositioned with ease, it's mounted on 6-inch castersa€”two of which can be locked to ensure stability during use.

  • Part of the PowerFry3 line
  • Vat can hold 70 lbs. of oil
  • Freestanding unit
  • Comfortable 36 1/4-in. working height
  • Cabinet and fry tank made of durable stainless steel
  • Unit mounted on (4) 6-in. adjustable casters (2 locking)
  • Electronic matchless ignition
  • SoftStart ignition system outputs 40,000 BTUs to extend oil life and save energy
  • ThreePass heat transfer system uniformly distributes heat throughout oil
  • Maintains idle temperature outputting 5,083 BTUs per hour
  • Flue temperature remains below 750 degrees F at maximum production rate
  • Hi-limit shutoff
  • Simple-to-use integrated KleenScreen PLUS filtration system
  • Twin fryer baskets with plastic-coated handles
  • Includes tank brush and clean-out rod
  • 1 1/4-in. port ball-type drain valve
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 80,000 BTU

  • Programmable computer controls with digital character display
  • 10 menu timers
  • USB interface enables offline programming
  • Operating temperature control: 200-390 degrees F
  • Digital temperature display in Celsius or Fahrenheit
  • 3 melt modes

  • Tank: 19 1/2 in. W x 14 in. D
  • Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
  • Powered by natural gas
  • 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
  • 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 80000
Capacity (lbs) 70
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 70
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 380.00
