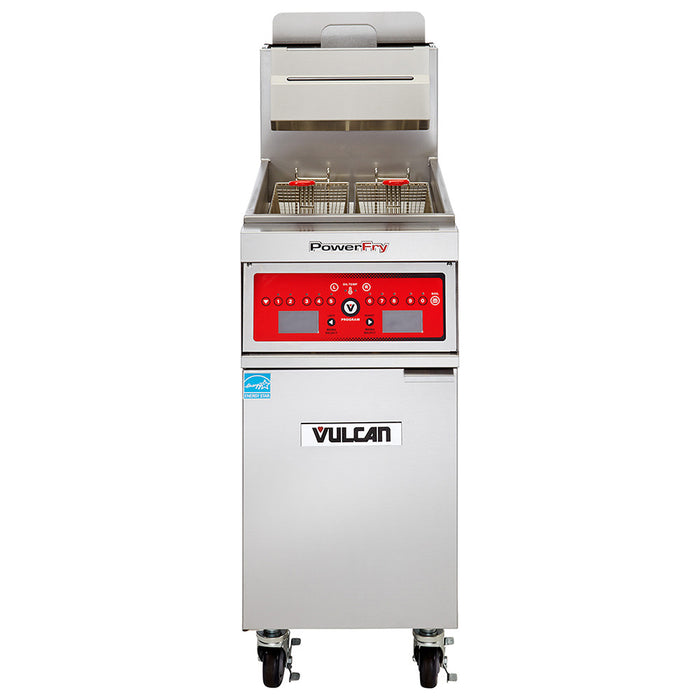

Vulcan 1TR65D Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane
The Vulcan 1TR65D freestanding commercial gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall and features a 19 1/2-inch-wide by 14-inch-deep frypot that accommodates the two included fryer baskets. Operators can fry okra, pickles, chicken, or mozzarella sticks in the frypot once they're placed in the fryer baskets. To enhance user safety, both baskets' handles are coated with plastic to minimize heat transfer risk. Its stainless steel frypot and cabinet resist rust, corrosion, dents, and scratches to survive high-volume back-of-house use. Because it's positioned on four 6-inch casters, it can be moved out of the way as needed, and two of the casters can be locked for stability during cooking.
To melt solid shortening, the Vulcan 1TR65D LP-gas-powered fryer features three melt modes, which slowly warms the unit upon startup. This unit also features a SoftStart® ignition system that quickly heats oil while only outputting 40,000 BTUs. As part of the PowerFry3® series, this unit is built with a high-efficiency ThreePass® heat transfer system, which evenly distributes heat throughout the oil to minimize cold spots, reduce recovery time, and provide 60 percent cooking efficiency and 72 percent thermal efficiency. Staff can set temperatures from 200 to 390 degrees Fahrenheit with the solid-state controls, and a digital display provides an accurate temperature readout. To monitor frying, the control system includes two countdown timers. When this unit needs to be cleaned, oil can be drained from the 1 1/4-inch port ball-type drain valve, and the tank can be cleaned with the included tank brush and clean-out rod.
- Featured in the PowerFry3 line
- 70-lb. oil capacity
- Freestanding model with 1 frypot
- 36 1/4-in. working height
- Stainless steel cabinet and frypot
- Positioned on (4) 6-in. adjustable casters (2 can be locked)
- Electronic matchless ignition
- SoftStart ignition system outputs 40,000 BTUs per hour upon startup
- ThreePass heat transfer system efficiently harnesses energy for even heating
- Maintains idle temperature by outputting 5,083 BTUs per hour
- Flue temperature doesn't exceed 750 degrees F at maximum production rates
- Hi-limit shutoff mechanism
- Includes 2 fryer baskets with plastic-coated handles
- 1 1/4-in. port ball-type drain valve
- Includes tank brush and clean-out rod
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 80,000 BTU
- Operating temperature control: 200-390 degrees F
- Temperature display
- Users can cook with compensating time or actual time
- 3 melt modes
- 2 countdown timers
- Auto boil-out mode
- Tank: 19 1/2 in. W x 14 in. D
- Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
- Powered by LP gas
- 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
- 3/4-in. OD rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 237.00 |
