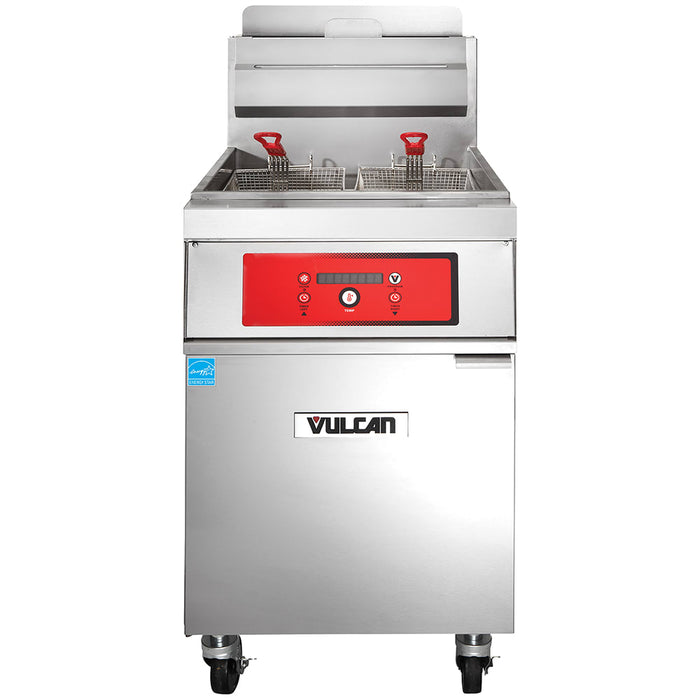

Vulcan 1TR65D Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas
The Vulcan 1TR65D PowerFry3® freestanding gas fryer operates with natural gas and can output 80,000 BTUs per hour. Its 19 1/2-inch-wide by 14-inch-deep frypot accommodates 70 pounds of oil, and to make use of solid shortening, it features three melt cycles. Its SoftStart® ignition system outputs 40,000 BTUs per hour while initially heating cooking oil, and the ThreePass® heat transfer system effectively distributes heat to reduce cook times and yield 60 percent cooking efficiency and 72 percent thermal efficiency. To maintain oil temperatures, this unit only outputs 5,083 BTUs per hour. Users can set temperatures from 200 to 390 degrees Fahrenheit outputting the solid-state temperature controls, and a digital display provides an accurate readout of oil temperature. Twin fryer baskets are included to simplify submerging products into oil and lifting them once they're fried. For enhanced user safety, these baskets' handles are coated in plastic to minimize heat transfer.
The Vulcan 1TR65D commercial gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall and establishes an ergonomic 36 1/4-inch working height. This unit is positioned on four 6-inch casters that provide smooth mobility for repositioning. When it must be secured in place, two of the casters can be locked. Both the cabinet and frypot are made of durable, rust- and corrosion-resistant stainless steel to prolong its service life through high-volume back-of-house use. To simplify cleaning, this unit is built with a 1 1/4-inch port ball-type drain valve and includes a clean-out rod and tank brush.
- Part of the PowerFry3 series
- 70-lb. vat capacity
- High-efficiency model
- Freestanding with 1 frypot
- 36 1/4-in. working height
- Durable, corrosion-resistant stainless steel cabinet and frypot
- Positioned on (4) 6-in. adjustable casters (2 can be locked)
- Electronic matchless ignition
- SoftStart ignition system outputs 40,000 BTUs per hour upon startup
- ThreePass heat transfer system harnesses energy for even heating
- Maintains idle oil temperature by outputting 5,083 BTUs per hour
- Flue temperature doesn't exceed 750 degrees F at maximum production rates
- Hi-limit shutoff mechanism
- Twin fryer baskets with plastic-coated handles
- 1 1/4-in. port ball-type drain valve
- Includes tank brush and clean-out rod
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 80,000 BTU
- Operating temperature control: 200-390 degrees F
- Temperature display
- 3 melt modes
- 2 countdown timers
- Auto boil-out mode
- Users can cook with compensating time or actual time
- Tank: 19 1/2 in. W x 14 in. D
- Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
- Powered by natural gas
- 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
- 3/4-in. OD rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 237.00 |
