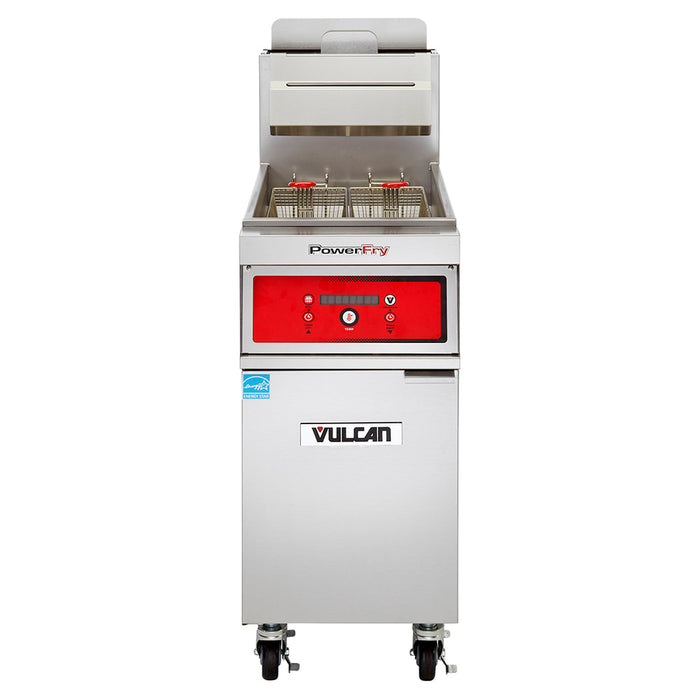

Vulcan 1TR65DF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane
As part of the PowerFry3® series, the Vulcan 1TR65DF LP gas fryer can reduce energy usage while enhancing efficiency. At startup, the SoftStart® ignition system quickly heats oil while only outputting 40,000 BTUsa€”half of BTUs it can output in an hour. Its ThreePass® heat transfer system harnesses energy to uniformly distribute heat throughout the oil for consistent results and to reduce lag times during recovery. When the fryer is maintaining idle temperatures, it only outputs 5,083 BTUs per hour. Operators can adjust unit temperature from 200 to 390 degrees Fahrenheit with an accurate temperature control. So users can monitor its temperature at a glance, it's built with a digital display. To simplify operation, it features three melt modes, an auto boil-out mode, and two countdown timers. Because this unit is equipped with KleenScreen PLUS® filtration, users can simply press a button to initiate filtration and extend oil's service life.
The Vulcan 1TR65DF commercial fryer is a freestanding unit measuring 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall. Its 36 1/4-inch working height enhances user comfort, while its casters provide smooth mobility. Two of the casters can be locked to ensure the fryer remains stable during use. Its 19 1/2-inch-wide by 14-inch-deep frypot accommodates 70 pounds of oil and comes with twin fryer baskets to secure chicken strips, mozzarella sticks, and fish sticks during place when lowering the baskets into the oil and lifting it. For added safety, the baskets' handles are plastic coated to eliminate heat transfer.
- Part of the PowerFry3 line
- Fry tank capacity: 70 lbs.
- High efficiency
- Freestanding model with 36 1/4-in. working height
- Rigid stainless steel cabinet and frypot
- Positioned on (4) 6-in. adjustable casters (2 can be locked)
- Electronic matchless ignition
- Operating temperature control: 200-390 degrees F
- Digital temperature display
- Users can cook with compensating time or actual time
- 3 melt modes
- 2 countdown timers
- Auto boil-out mode
- SoftStart ignition system outputs half of maximum BTUs per hour upon startup
- ThreePass heat transfer system
- Maintains idle temperature outputting 5,083 BTUs per hour
- Flue temperature remains below 750 degrees F at maximum production rate
- Hi-limit shutoff
- KleenScreen PLUS filtration system operates with the push of a button
- Twin fryer baskets with plastic-coated handles
- 1 1/4-in. port ball-type drain valve
- Includes tank brush and clean-out rod
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 80,000 BTU
- Tank: 19 1/2 in. W x 14 in. D
- Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
- Powered by LP gas
- 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
- 3/4-in. OD rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 380.00 |
