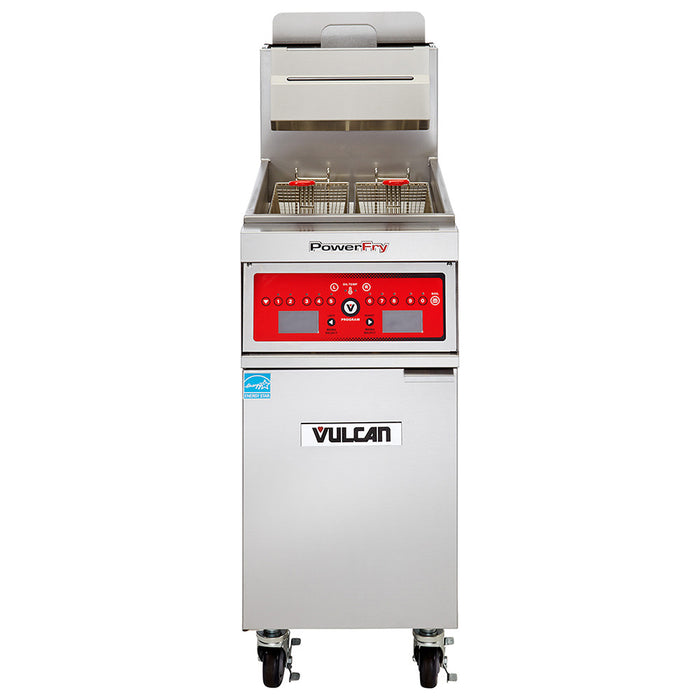

Vulcan 1TR85C Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane

SKU 1TR85C-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$13,293.00
$13,293.00 - $13,293.00
Current price $13,293.00

As part of the PowerFry3® series, the Vulcan 1TR85C commercial gas fryer is ideal for medium- to high-volume operations because it operates with the ThreePass® heat transfer system. This mechanism uses heat exchange tubes to transfer heat from the burners to the cooking oil for quick and efficient frying. When initially warming up, its SoftStart® mechanism slowly raises oil temperature, minimizing the risk of scorching oil while outputting 45,000 BTUs per hour to conserve energy. At a maximum, this fryer only outputs 5,575 BTUs per hour to maintain idle temperatures. By using the programmable computer controls, operators can set 10 menu timers and modify oil temperatures from 200 to 390 degrees Fahrenheit. The digital display provides a readout of menu items, cook times, and temperatures so staff can ensure the correct setting has been initiated. To accommodate solid shortening, this control system features three melt modes.

The Vulcan 1TR85C floor model fryer features a 19 1/2-inch-wide by 18 1/4-inch-deep frypot that accommodates 90 pounds of oila€”great for frying chicken, fish, okra, pickles, and more. Included twin fryer baskets secure foods in place as they're cooked, and to enhance user safety when lifting the baskets from hot oil, these pieces feature plastic-coated handles that minimize heat transfer. To simplify cleaning, this unit is built with a 1 1/4-inch port ball-type drain valve and includes a tank brush and clean-out rod. For lasting durability and corrosion resistance, the cabinet and fry tank are made of stainless steel. Its 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall body establishes a comfortable 36 1/4-inch working height. Because it's fitted with four 6-inch casters, it can be moved out of the way when the floor requires cleaning; two of these casters can be locked to ensure the unit remains stable during use.

  • Part of Vulcan's PowerFry3 series
  • 90-lb. vat capacity
  • Freestanding model
  • 36 1/4-in. working height
  • Corrosion-resistant stainless steel cabinet and fry tank
  • Mounted on (4) 6-in. adjustable casters (2 with locks)
  • Electronic matchless ignition
  • SoftStart ignition system gradually raises oil temperature upon startup
  • ThreePass heat transfer system yields 60 percent cooking efficiency and 72 percent thermal efficiency
  • Energy-saving idle temperature setting outputs 5,575 BTUs per hour
  • Flue temperature doesn't exceed 750 degrees F at maximum production rate
  • Hi-limit shutoff
  • 2 fryer baskets with plastic-coated handles
  • 1 1/4-in. port ball-type drain valve
  • Includes tank brush and clean-out rod
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 90,000 BTU

  • Programmable computer controls with digital character display
  • 10 menu timers
  • USB interface enables offline programming
  • Operating temperature range: 200-390 degrees F
  • Temperature display in Fahrenheit or Celsius
  • 3 melt modes

  • Tank: 19 1/2 in. W x 18 1/4 in. D
  • Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
  • Powered by LP gas
  • Includes 120-volt cord and NEMA 5-15P plug
  • 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 90000
Capacity (lbs) 90
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 90
Oil Capacity/Fryer (lb) 90
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 267.00
