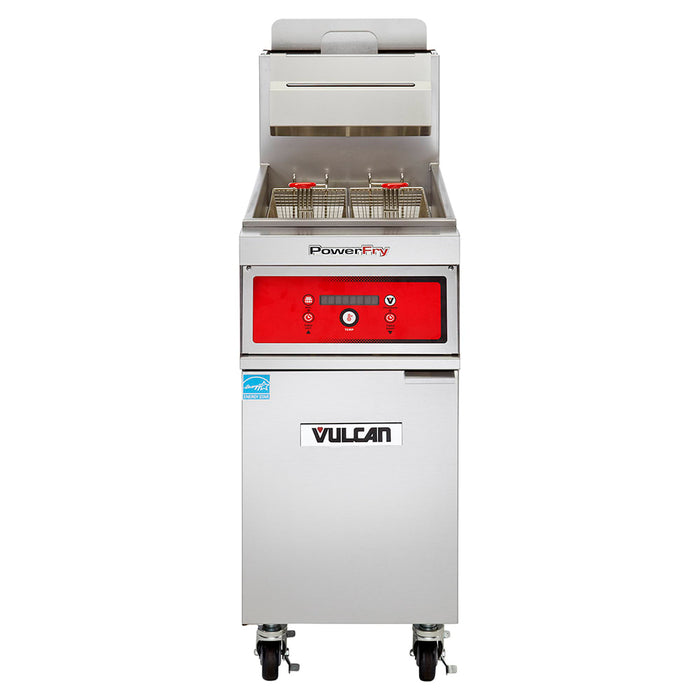

Vulcan 1TR85CF Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas
To save space and enhance employee comfort, the Vulcan 1TR85CF commercial fryer is a 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall freestanding unit with a 36 1/4-inch working height. Its stainless steel cabinet and frypot match other back-of-house equipment and provide lasting rust-, dent-, and scratch-resistant durability. This unit is fitted with four 6-inch casters that deliver smooth mobility when it needs to be moved for maintenance or cleaning; to ensure it remains stable during use, two of the casters include brakes. Its 19 1/2-inch-wide by 18 1/4-inch-deep frypot boasts a 90-pound oil capacity to accommodate chicken, fish, french fries, and vegetables for medium- and high-traffic settings. Twin fryer baskets come with the fryer to keep contents contained as they're fried, and to minimize burn risk, the baskets' handles are coated in plastic.
The fryer's programmable computer controls enable staff to set timers for 10 menu items to simplify preparing the fryer for commonly cooked items. For added flexibility, operators can upload menu items offline using a USB interface. Users can set temperatures from 200 to 390 degrees Fahrenheit and then monitor oil temperatures with the digital display. To accommodate different types of shortening and minimize damage to the frypots welded joints, it provides three melt mode options.
As part of the PowerFry3® series, this fryer features a ThreePass® heat transfer system, which uniformly distributes heat throughout the oil to minimize recovery times and yield 72 percent thermal efficiency and 60 percent cooking efficiency. The SoftStart® ignition system quickly heats oil while outputting 45,000 BTUs per hour to extend oil life. When maintaining idle temperatures, it outputs only 5,575 BTUs per hour to further conserve energy. To remove impurities and prolong oil life, this unit is equipped with the KleenScreen PLUS® filtration system, which can be activated with the press of a button.
- Featured in the PowerFry3 series
- 90-lb. oil capacity
- High efficiency
- Electronic matchless ignition
- ThreePass heat transfer system effectively harnesses energy
- SoftStart ignition system heats oil quickly and outputs 45,000 BTUs per hour
- Only outputs 5,575 BTUs per hour to maintain idle temperatures
- Flue temperature doesn't exceed 750 degrees F at maximum production rates
- Hi-limit shutoff mechanism
- KleenScreen PLUS filtration system can be started with push of a button
- Freestanding unit
- 36 1/4-in. working height
- Stainless steel cabinet and frypot
- (4) 6-in. adjustable casters (2 with locks)
- Twin fryer baskets with plastic-coated handles
- 1 1/4-in. port ball-type drain valve
- Includes tank brush and clean-out rod
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 90,000 BTU
- Programmable computer controls
- Digital character display
- 10 menu timers
- Operating temperature control: 200-390 degrees F
- 3 melt modes
- Can cook with compensating time or actual time
- Menu items can be programmed offline through USB interface (software included)
- Tank: 19 1/2 in. W x 18 1/4 in. D
- Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
- Powered by natural gas
- 120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
- 3/4-in. OD rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 90 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 90 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 420.00 |
