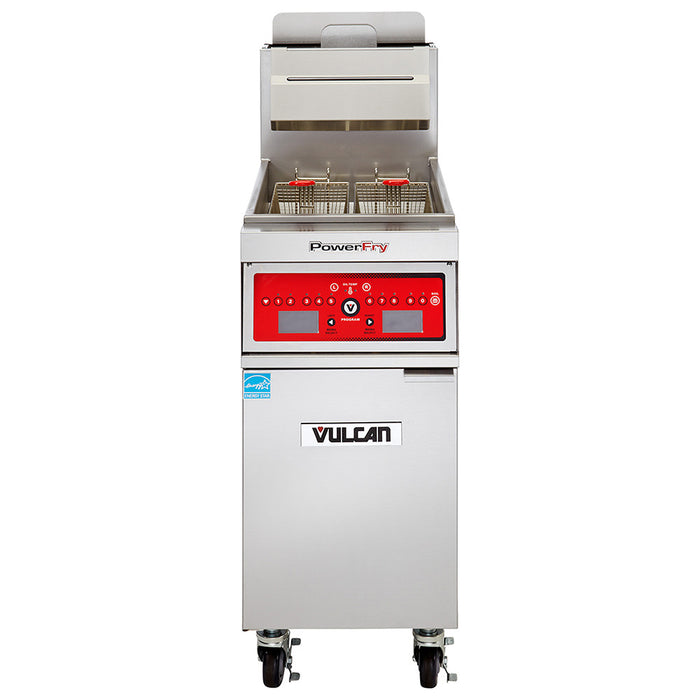

Vulcan 1TR85D Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane
To meet the demands of medium- and high-volume establishments, the Vulcan 1TR85D PowerFry3® high-efficiency gas fryer features a ThreePass® heat transfer system that effectively directs heat from the burners to the oil, resulting in quick cooking and recovery times. To minimize the risk of scorching oil, the SoftStart® ignition system gradually warms oil by outputting 45,000 BTUs. Operators can set oil temperatures between 200 and 390 degrees Fahrenheit with the solid-state digital controls; once oil reaches the desired temperature, the idle temperature setting only outputs 5,575 BTUs per hour to retain temperatures; the controls also enable employees to select from three melt modes, set two countdown timers, and initiate an auto boil-out mode.
The Vulcan 1TR85D commercial freestanding fryer's 19 1/2-inch-wide by 18 1/4-inch-deep frypot accommodates 90 pounds of cooking oila€”great for cooking mozzarella sticks, french fries, or chicken. Twin fryer baskets keep foods contained as they're inserted into the frypot and lifted from the oil. Their plastic-coated handles minimize heat transfer for staff safety. Because this unit is built with a 1 1/4-inch port ball-type drain valve, oil can be expelled with ease. Staff can thoroughly clean the frypot with the tank brush and clean-out rod. Overall, this corrosion-resistant stainless steel unit measures 21 inches wide by 34 3/8 inches deep by 47 1/8 inches tall and is positioned on four smooth-rolling, 6-inch-diameter casters to ease transport. To ensure stabilization during use, two of the casters can be locked.
- Part of the PowerFry3 series
- Frypot oil capacity: 90 lbs.
- Freestanding model with 1 vat
- 36 1/4-in. working height
- Rugged stainless steel cabinet and frypot resist corrosion
- Twin fryer baskets with plastic-coated handles
- Includes tank brush and clean-out rod
- 1 1/4-in. port ball-type drain valve
- Equipped with (4) 6-in. casters (2 locking)
- Electronic matchless ignition
- SoftStart ignition system slowly increases oil temperature at startup
- ThreePass mechanism yields 60 percent cooking efficiency and 72 percent thermal efficiency
- Idle temperature setting maintains set temperatures outputting 5,575 BTUs per hour
- Flue temperature doesn't exceed 750 degrees F at maximum production rate
- Hi-limit shutoff
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 90,000 BTU
- Operating temperature range: 200-390 degrees F
- Temperatures can be displayed in Fahrenheit or Celsius
- Cooks with compensating time or actual time
- 3 melt modes
- 2 countdown timers
- Automatic boil-out mode
- Tank: 19 1/2 in. W x 18 1/4 in. D
- Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
- Powered by LP gas
- Includes 120-volt cord and NEMA 5-15P plug
- 3/4-in. OD rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 90 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 90 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 267.00 |
