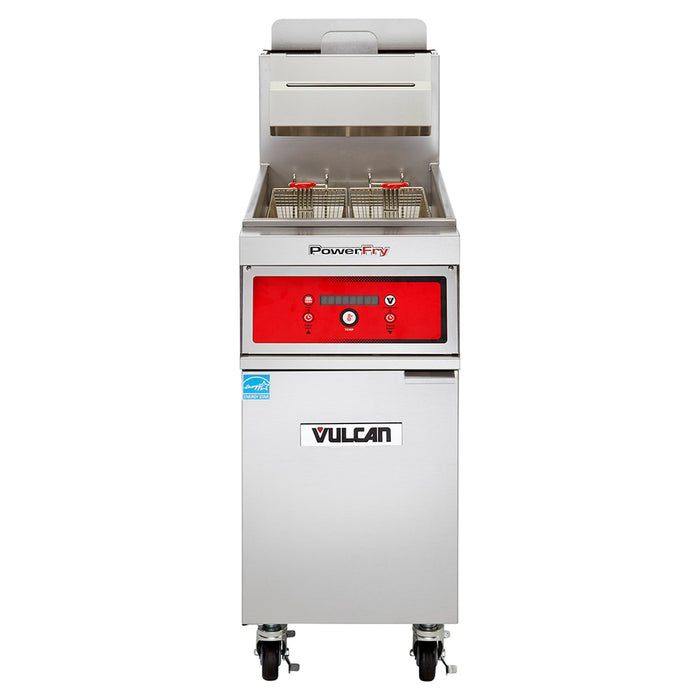

Vulcan 1TR85DF Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

SKU 1TR85DF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$20,677.00
$20,677.00 - $20,677.00
Current price $20,677.00

To fry chicken, fish, tofu, french fries, okra, and more, the Vulcan 1TR85DF commercial gas fryer features a 90-pound-capacity vat, which measures 19 1/2 inches wide by 18 1/4 inches deep. The two included fryer baskets secure food in place as it's lowered into the oil and removed from the frypot. To enhance user safety, the handles are coated in plastic to reduce heat transfer. This 21-inch-wide by 36 1/4-inch-deep by 47 1/8-inch-tall unit provides a 36 1/4-inch working height for comfort. Because it's equipped with four 6-inch castersa€”two of which can be lockeda€”it can be repositioned or transported as needed. For lasting durability, the cabinet and frypot are made of durable, corrosion-resistant stainless steel.

Its solid-state digital controls enable users to simply adjust temperatures from 200 to 390 degrees Fahrenheit. The SoftStart® mechanism gradually increases oil temperature by outputting 45,000 BTUs per hour to minimize the risk of scorching oil. To maximize heat transfer, this PowerFry3® unit features a ThreePass® system that efficiently directs heat from the burners to the oil to reduce cook and recovery times. When the fryer has achieved the desired temperature, staff can initiate the idle temperature setting to hold temperatures while saving energy. To heat solid shortening, users can select one of the three melt modes. Two countdown timers can be set to ensure products are cooked for an appropriate length of time.

To extend the Vulcan 1TR85DF freestanding fryer's oil life, the KleenScreen PLUS® filtration system includes a stainless steel mesh filter screen that filters out debris and particulates from two sides to achieve good-tasting oil. For simple operation, this system features a corresponding button to initiate a filtration cycle. Its drain valve interlock switch automatically turns off the burners when the drain valve is opened. Because its flow rate is 8 gallons per minute, it expedites the filtering time. To ease cleaning, it features a Boil Out By-Pass® mechanism that removes boil-out solution, and its lightweight pan can be removed and sanitized in a dishwasher.

  • Part of the PowerFry3 line
  • 90-lb. oil capacity
  • Electronic matchless ignition
  • SoftStart ignition system outputs 45,000 BTUs per hour to increase oil temperature slowly
  • ThreePass mechanism maximizes heat transfer
  • Idle temperature setting maintains set temperatures
  • Flue temperature doesn't exceed 750 degrees F at maximum production rate
  • Hi-limit shutoff
  • Freestanding configuration with 36 1/4-in. working height
  • Stainless steel cabinet and frypot
  • Includes 2 fryer baskets with plastic-coated handles
  • Includes tank brush and clean-out rod for cleaning
  • 1 1/4-in. port ball-type drain valve
  • Equipped with (4) 6-in. casters (2 locking)
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 90,000 BTU

  • Operating temperature range: 200-390 degrees F
  • Temperatures displayed in Fahrenheit or Celsius
  • Cooks with compensating time or actual time
  • 3 melt modes
  • 2 countdown timers
  • Auto boil-out mode

  • 1-touch button engages motor and pump
  • Stainless steel mesh filter screen filters from 2 sides
  • Dishwasher-safe, lightweight 1-piece filter pan with 110-lb. oil capacity
  • Boil Out By-Pass® mechanism removes boil-out solution
  • Drain valve interlock switch shuts off burners when drain valve is opened
  • 8-GPM motor and pump
  • Hands-free oil-return tube

  • Tank: 19 1/2 in. W x 18 1/4 in. D
  • Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
  • 6 A, 1/3 HP
  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • Powered by natural gas
  • 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 90000
Capacity (lbs) 90
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 90
Oil Capacity/Fryer (lb) 90
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 420.00
