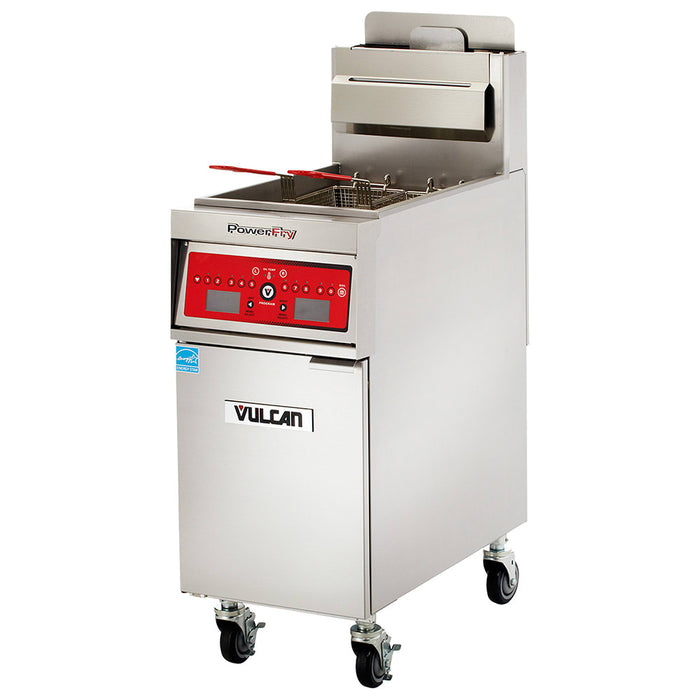

Vulcan 1VK45CF Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

SKU 1VK45CF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$23,306.00
$23,306.00 - $23,306.00
Current price $23,306.00

To streamline operation, the Vulcan 1VK45CF PowerFry5® commercial gas fryer is equipped with programmable computer controls. Employees can adjust temperatures from 200 to 390 degrees Fahrenheit, upload 10 menu timers directly on the unit or via a USB software, and choose from three melt cycles. Its 14-inch-wide by 14-inch-deep frypot accommodates 50 pounds of oil, and because it's built with the FivePass® heat transfer system, heat is evenly distributed to expedite cooking and reduce recovery times. To minimize the risk of scorching oil, its SoftStart® ignition system causes the unit to output 35,000 BTUs per hour so oil is gradually heated. The idle temperature setting maintains desired temperatures while only outputting 4,251 BTUs per hour to conserve energy.

Staff can simply lower foods into the vat using the twin fryer baskets. To reduce the risk of heat transfer for employee safety, the baskets' handles are coated in plastic. During frying, sediment can settle in the V-shaped cold zone beneath the burners. Because this area is cooler than the top section of the frypot, debris is less likely to burn, which could impact the oil's taste. This fryer features the KleenScreen PLUS® filtration system, which uses a stainless steel mesh filter screen to filter out particles from two sides, further prolonging oil's life. Operators can activate a filtration cycle with the push of a button, and the pump and motor's 8-gallon-per-minute flow rate expedites the filtration process. The 18-gauge stainless steel filter pan can hold 70 pounds of fry compound, and for thorough sanitization after use, it can be run through a dishmachine cycle.

The Vulcan 1VK45CF freestanding commercial fryer measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches tall to save space in compact kitchens. While its 36 1/4-inch working height enhances employee comfort, its four 6-inch casters simplify transport. Two of the casters can be locked to ensure the unit remains stable during frying. For lasting durability and corrosion resistance, the cabinet and frypot are made of stainless steel. This fryer is built with a 1 1/4-inch full-port ball-type drain valve and comes with a tank brush and clean-out rod to ease cleaning.

  • Part of the PowerFry5 line
  • Frypot capacity: 50 lbs.
  • Electronic matchless ignition
  • SoftStart ignition system gradually warms oil
  • FivePass mechanism uniformly distributes heat throughout cooking oil for efficiency
  • Idle temperature setting maintains set temperatures
  • Flue temperature doesn't exceed 500 degrees Fahrenheit at the unit's maximum production rate
  • Hi-limit shutoff
  • Freestanding model with 36 1/4-in. working height
  • Stainless steel cabinet and frypot
  • Twin fryer baskets built with plastic-coated handles
  • Tank brush and clean-out rod included for cleaning
  • 1 1/4-in. port ball-type drain valve
  • (4) 6-in. casters (2 casters can be locked)
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 70,000 BTU

  • Programmable computer controls
  • Digital character display
  • Operating temperature range: 200-390 degrees F
  • Temperature display in Fahrenheit or Celsius
  • 10 menu timers
  • USB interface with software for offline programming
  • 3 melt modes

  • Stainless steel mesh filter screen filters from 2 sides
  • Filtration area: 270-350 sq. in.
  • 1-touch button activates motor and pump
  • Drain valve interlock switch
  • 8-GPM flow rate for motor and pump
  • Boil Out By-Pass® mechanism eliminates boil-out solution
  • Hands-free oil-return tube
  • Dishwasher-safe, lightweight 1-piece filter pan

  • Tank: 14 in. W x 14 in. D
  • Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
  • 7 A, 1/3 HP
  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • Powered by natural gas
  • 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 70000
Capacity (lbs) 50
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 50
Oil Capacity/Fryer (lb) 50
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 15.5
Weight 230.00
