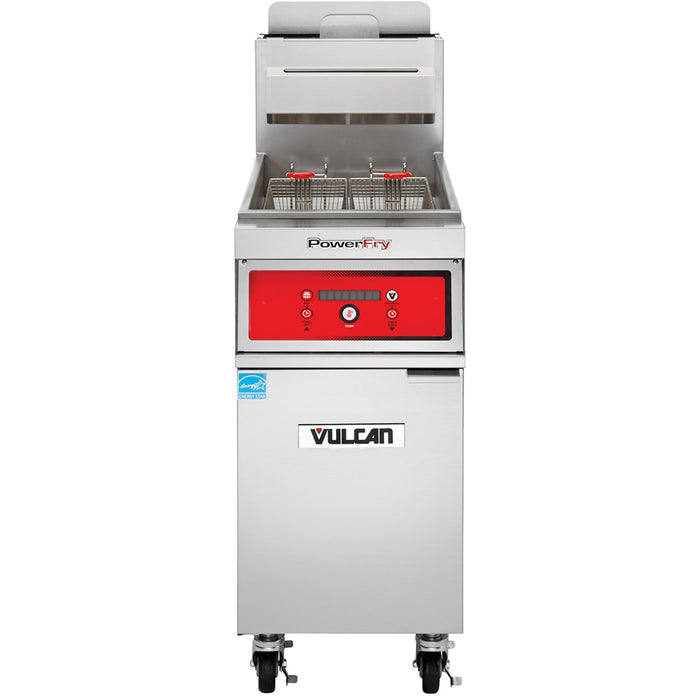

Vulcan 1VK45DF Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

SKU 1VK45DF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$20,820.00
$20,820.00 - $20,820.00
Current price $20,820.00

The Vulcan 1VK45DF gas fryer sports one vat capable of holding 50 pounds of oil to produce high volumes of fried chicken, onion rings, and french fries. It utilizes a KleenScreen PLUS® filtration system to remove food debris and particulates, extending the efficiency of each batch of oil. This unit includes two 6 1/2-inch wide by 13 1/4-inch-deep by 6-inch-high twin baskets, each with a plastic-coated handle to protect hands from extreme heat. This unit can be set to a temperature between 200 and 390 degrees Fahrenheit using the integrated solid-state digital control that provides three melt modes. To ease use during operation, it has two countdown timers and an auto-boil mode; with its Five Pass&trade ignition, it produces energy-efficient heat transfer, yielding 66 percent cooking and 78 percent thermal efficiency.

Overall, the Vulcan 1VK45DF NG gas fryer measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high. For simple cleaning and increased durability, its cabinet and fry tank is constructed of stainless steel. Furthermore, its 1 1/4-inch full port ball type drain valve ensures efficient dispersal of oil from the 14-inch-wide by 14-inch-deep fry tank. For easy placement on level or irregular floors, it's mounted on four 6-inch adjustable casters, two of which can be locked in place to stop the unit from moving while in use.

  • Part of the PowerFry5® series
  • 50-lb. frypot
  • Twin baskets featuring plastic coat handles
  • Electronic SoftStart® ignition slowly warms oil to prevent scorching
  • Stainless steel cabinet and fry tank
  • Set of (4) 6-in. adjustable casters (2 swivel & 2 non-locking)
  • Establishes 36 1/4 in. working height
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • FivePass® heat transfer system
  • Freestanding unit
  • Hi-limit shutoff
  • 1 1/4-in. full port ball type drain valve
  • 70,000 BTU

  • Electronic ignition
  • Temperature control: 200-390 degrees F
  • Displays in Fahrenheit or Celsius
  • 3 melt modes
  • 2 countdown timers
  • Auto-boil out mode
  • Cooks with compensating time or actual time

  • Push-button activated motor and pump
  • Drain valve interlock switch shuts off burners during oil draining
  • 18-ga. stainless steel filter pan with 70-lb. capacity
  • Stainless steel mesh filter screens from 2 sides to create 270-sq-in. filter area
  • Motor and pump circulate oil at 8 GPM
  • Oil-return tube is hands free

  • Fry tank: 14 in. W x 14 in. D
  • Fry basket:(2) 6 1/2 in. W x 13 1/4 in. D x 6 in. H
  • Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
  • 7.0 A, 1/3 HP
  • 115 V/60 HZ/1 ph, cord with NEMA 5-15P plug
  • Powered by natural gas

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 70000
Capacity (lbs) 50
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 50
Oil Capacity/Fryer (lb) 50
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 15.5
Weight 230.00
