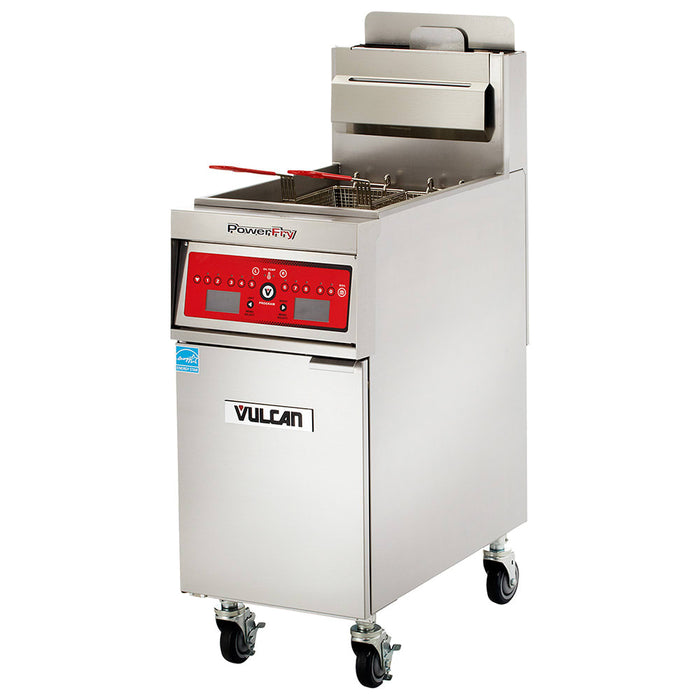

Vulcan 1VK65AF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane
The Vulcan 1VK65AF gas fryer can hold up to 70 pounds of oil and features a KleenScreen® filtration system to extend the oil life over time. This system is push-button activated, and its motor and pump circulate oil at 8 gallons per minute. To establish a filter area of 270 square inches, it features a stainless steel mesh screen that filters from two sides. This unit can be set to a specific temperature between 200 and 390 degrees Fahrenheit using the solid-state analog controls. For use with solid shortening, these controls include user-selectable fat-melt modes. It boasts a SoftStart® ignition system that slowly warms oil to prevent scorching, while the FivePass® heat system evenly distributes heat to oil to yield 78 percent thermal efficiency and 68 percent cooking efficiency.
Overall, the Vulcan 1VK65AF gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high. This heavy-duty unit is made of stainless steel and boasts a 19 1/2-inch-wide by 14-inch-deep fry tank that resists corrosion and residue left from grease and oil. To streamline cleaning after operation, its 1 1/4-inch full port ball type drain valve helps hasten oil removal, while the included tank brush and clean-out rod enable precise cleaning. For efficient transportation and mobility on any floor surfaces, it sits on a set of four 6-inch adjustable casters. Once it reaches an ideal location, two of its wheels can be locked to ensure stability during operation.
- Part of the Power Fry® series
- 70-Ib. oil capacity
- Twin baskets feature plastic-coated handles
- Energy saving SoftStart ignition system
- FivePass® system evenly transfers heat
- Stainless steel frypot and cabinet
- (4) 6-in. adjustable casters
- 1 1/4-in. full port ball type drain valve
- Hi-limit shutoff mechanism
- Idle setting maintains set temperature using 4,802 BTUs per hour
- Working height of 36 1/4 in.
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 80,000 BTU
- Electronic ignition
- Can be set to temperatures between 200 and 390 degrees F
- Fat-melt mode is user selected
- Behind cabinet door
- Stainless steel mesh filter works from 2 sides to establish a 270-sq.-in. filter area
- Tank brush and clean out rod
- Drain valve interlock shuts off burners during oil draining
- Motor and pump circulate oil at 8 GPM
- Hands-free oil-return tube
- Motor and pump are button activated
- Stainless steel oil pan sports 110-lb capacity
- Fry tank: 19 1/2 in. W x 14 in. D
- Fry basket:(2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
- Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
- 7 A, 1/3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by liquid propane
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 380.00 |
