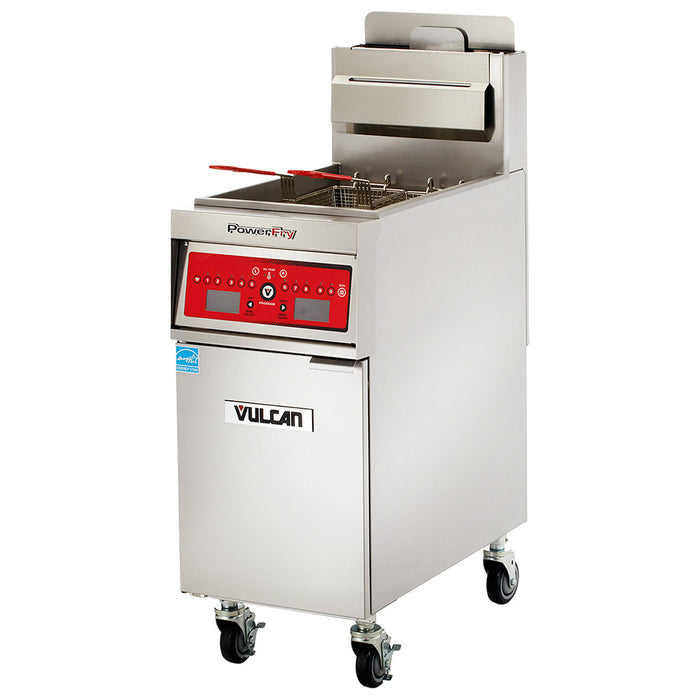

Vulcan 1VK65AF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

SKU 1VK65AF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$20,958.00
$20,958.00 - $20,958.00
Current price $20,958.00

For frying breaded chicken breasts, legs, and wings, the Vulcan 1VK65AF gas fryer features a 19 1/2-inch-wide by 14-inch-deep frypot and includes two 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch-high fry baskets. This frypot can hold 70 pounds of oil, and because of the integrated KreenScreen PLUS® filtration, oil quality is extended over time. This fryer unit maintains temperatures between 200 and 390 degrees Fahrenheit and is operated with solid-state analog controls that feature user-selected melt cycles, ensuring heating elements don't overheat during long periods of operation.

While this fryer outputs 80,000 BTUs per hour, it sports a FivePass® heat transfer system that promotes even heating for efficient, high-quality cooking. Its SoftStart® ignition system slowly warms oil at startup, extending the life over frequent use with lower BTU output and energy use. Once it reaches the set temperature, it features a mode that maintains the temperature while outputting just 4,802 BTUs per hour.

The Vulcan 1VK65AF gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high and is made of stainless steel for additional durability and corrosion resistance. Great for thriving in greasy environments, this unit integrates a 1 1/4-inch full-port ball type drain valve to quickly remove dirty oil; it also features a tank brush and clean-out rod to aid in the cleaning process. To maneuver this fryer with ease, it stands on a set of four 6-inch casters, two of which lock to stabilize the unit during use.

  • Part of the Power Fry® series
  • Frypot can hold 70 lbs. of oil
  • Twin baskets feature plastic-coated handles
  • FivePass system evenly disperses heat
  • SoftStart ignition slowly heats oil to reduce risk of scorching
  • Frypot and cabinet made of stainless steel
  • 1 1/4-in. full port ball type drain valve
  • 2 of (4) 6-in. adjustable casters feature locks
  • Hi-limit shutoff mechanism
  • 36 1/4-in. working height
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 80,000 BTU

  • Electronic ignition
  • Temperature range: 200-390 degrees F
  • User-selectable fat-melt modes
  • Located behind cabinet door

  • Stainless steel mesh filter filters from 2 sides for a 270-sq.-in. filter area
  • Push-button activated motor and pump
  • 110-lb oil capacity filter pan is made of stainless steel
  • Pump and motor circulate oil at 8 GPM
  • Oil-return tube enables hands-free use
  • Drain valve interlock switch shuts down burners when oil drains

  • Fry tank: 19 1/2 in. W x 14 in. D
  • Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
  • Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
  • 7 A, 1/3 HP
  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • Operates with natural gas
  • 1 1/4-in. NPT common rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 80000
Capacity (lbs) 70
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 70
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 380.00
