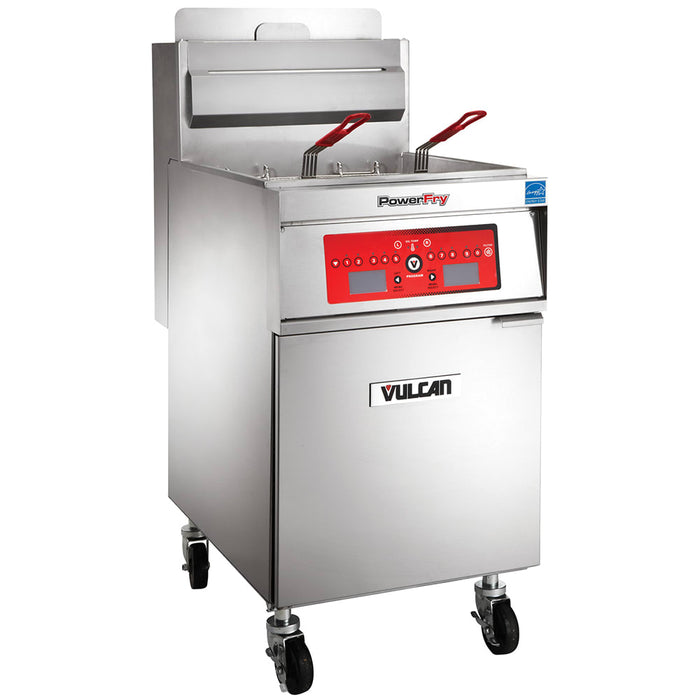

Vulcan 1VK65CF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas
The Vulcan 1VK65CF gas fryer features a 19 1/2-inch-wide by 14-inch-deep fry tank that holds 70 pounds of oil and features the KleenScreen PLUS® filtration system to enhance efficiency. This filtration system features a two-side stainless steel mesh filter that creates a filter area of 270 square inches, while the 8-gallon-per-minute motor and pump are activated with the simple push of a button. To assist with cooking while ensuring employee safety, this tank can fit two 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch-high baskets, both of which sport plastic handles to reduce the risk of heat transferring to employee hands. Its temperature can be set between 200 and 390 degrees Fahrenheit using the computer controls, which also feature three fat melting modes and ten menu timers that display product names and cook times; these can be programmed offline using the USB interface.
Overall, the Vulcan 1VK65CF fryer outputs 80,000 BTUs, though it saves energy with a SoftStart® ignition system, which slowly heats oil using 35,000 BTUs per hour, and FivePass® heat transfer system that yields 78 percent thermal efficiency. This gas fryer measures 21 inches wide by 30 1/8 inches deep 47 1/8 inches high and is constructed of durable, corrosion-resistant stainless steel. For adept cleaning after intensive use, employees can utilize its 1 1/4-inch full-port ball drain valve, tank brush, and clean-out rod. Set on four 6-inch adjustable casters, it can be maneuvered on irregular or smooth surfaces, and two of these casters lock the unit in place when stabilization is needed.
- Part of the Power Fry® series
- 70-lb-capacity frypot
- Twin baskets with coating of plastic on handles for user safety
- SoftStart ignition system slowly warms oil for energy efficiency and burn prevention
- FivePass efficient system evenly disperses heat
- Frame, cabinet, and frypot made of stainless steel
- 1 1/4-in. full-port ball type drain valve
- 2 of (4) 6-in. adjustable casters feature locks for stabilization
- 36 1/4-in. working height
- Hi-limit shutoff
- Idle setting keeps set temperature at just 4,802 BTUs per hour
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 80,000 BTU
- Electronic ignition
- Operating temperature range: 200-390 degrees F
- 3 melting modes<
- Displays product name and cook times of 10 menu items
- Offline programming of menu items using USB interface
- Digital display in Fahrenheit or Celsius
- Can cook using compensating time or actual time
- Drain valve interlock turns off burners while oil drains
- Tank brush and clean-out rod included
- 8-GPM motor and pump are button activated
- Stainless steel oil pan features 110-lb. capacity
- Stainless steel mesh filter uses 2 sides to create 270-sq.-in. filter area
- Hands-free oil-return tube
- Fry tank: 19 1/2 in. W x 14 in. D
- Fry basket: (2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
- Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
- 7 A, 1/3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Operates with natural gas
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 380.00 |
