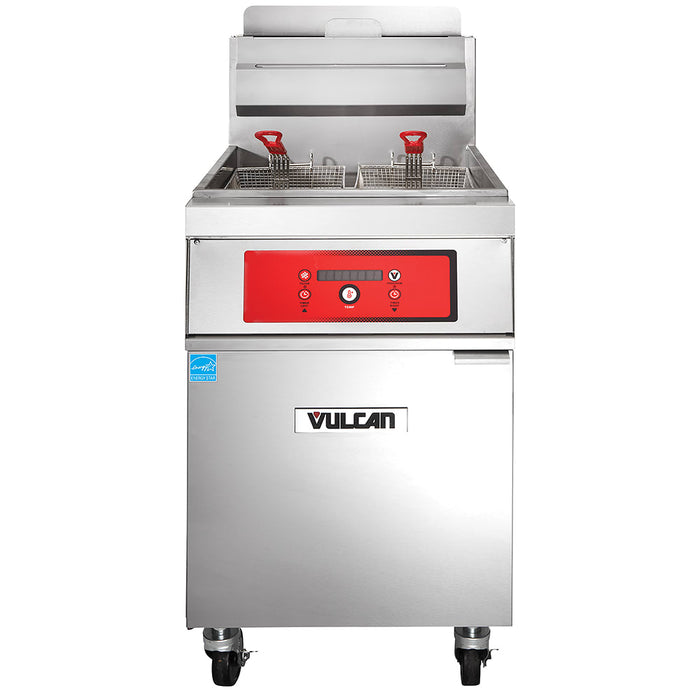

Vulcan 1VK65D Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

SKU 1VK65D-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$13,584.00
$13,584.00 - $13,584.00
Current price $13,584.00

The Vulcan 1VK65D gas fryer is straightforward to install in back-line diners and restaurant kitchens. Overall, it measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high, and because it sits on four 6-inch casters, it can be smoothly maneuvered when maintenance or cleaning underneath is necessary. Additionally, two of its casters come with locking mechanisms to keep the unit from shifting during use. Its 19 1/2-inch-wide by 14-inch-deep fry tank and cabinet are constructed of stainless steela€”a durable, corrosion-resistant metal ideal for heavy-grease settings. After multiple operation cycles, its integrated 1 1/4-inch full-port ball type drain valve, tank brush, and clean-out rod assist with cleaning and oil removal.

The Vulcan 1VK65D gas fryer vat holds 70 pounds of oil for cooking chicken, fish, and other breaded meats, and because it's part of the PowerFry5® series, this unit conserves energy to lower operation costs. Its FivePass® heat transfer system yields 68 percent cooking efficiency and 78 percent thermal efficiency, while its SoftStart® ignition system prolongs oil life by gradually warming oil at 35,000 BTUs per hour. Operators can control this fryer unit with solid-state digital control, which features three melt cycles and two countdown timers. This system lets operators set the temperature between 200 and 390 degrees Fahrenheit, and for safe use during cooking, the fryer features two 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch high baskets with plastic handles that protect users from heat transfer.

  • Part of the PowerFry5® series
  • 70-lb. oil capacity
  • Twin baskets with plastic coating on handles included
  • FivePass heat transfer mechanics evenly disperse heat
  • SoftStart ignition slowly brings oil to temperature to prevent scorching
  • Stainless steel construction
  • 1 1/4-in. full port ball type drain valve
  • (4) 6-in. adjustable casters (2 locking)
  • Tank brush and clean-out rod
  • Idle mode maintains set temperatures at reduced energy usage
  • Hi-limit shutoff mechanism
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 80,000 BTU

  • Electronic ignition
  • Temperature can be set between 200 and 390 degrees F
  • 3 melt cycles
  • 2 countdown timers
  • Automatic boil-out mode
  • Displays temperature in Fahrenheit or Celsius
  • Utilizes compensating time or actual time

  • Fry tank: 19 1/2 in. W x 14 in. D
  • Fry basket:(2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
  • Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
  • Liquid propane
  • 1 1/4-in. NPT common rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 80000
Capacity (lbs) 70
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 70
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 237.00
