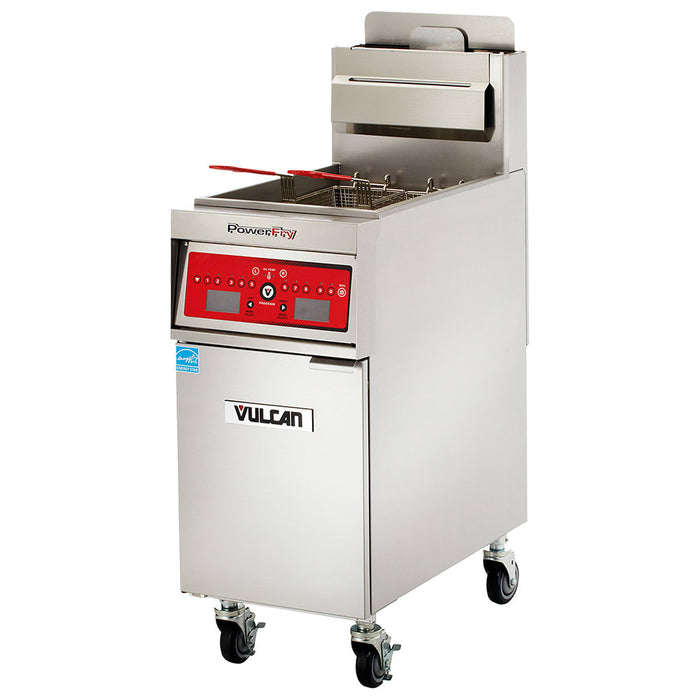

Vulcan 1VK65DF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas
The Vulcan 1VK65DF gas fryer promotes high-volume production while minimizing operational costs. While it outputs 80,000 BTUs overall, it also sports an electronic SoftStart® ignition that slowly warms oil upon startup to prevent burning and scorching, extending oil life. Its FivePass® heat transfer system produces 78 percent thermal efficiency and 68 percent cooking efficiency. It maintains set temperatures between 200 and 390 degrees Fahrenheit and comes with an integrated solid-state digital control system. This system features three possible melt cycles in addition to two countdown timers and an automatic boil-out mode.
The Vulcan 1VK65DF gas fryer vat measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high. Its 19 1/2-inch wide by 14-inch-deep fry tank accommodates 70 pounds of oil, and with KleenScreen PLUS® filtration, the oil maintains optimal conditions for longer periods to reduce refill costs. This unit's cabinet and tank are made of stainless steel for the durability needed to withstand intense use, rust, and corrosion over time. To ease cleaning processes, it has a 1 1/4-inch full-port ball drain valve, tank brush, and clean-out rod.
- Part of the PowerFry5® series
- 70-lb. oil capacity
- Includes twin baskets that utilize plastic-coated handles
- SoftStart ignition gradually warms oil
- Heat transfer system uses energy-conserving FivePass technology
- Stainless steel frame, cabinet, and frypot
- 1 1/4-in. full port ball type drain valve
- 2 of (4) 6-in. adjustable casters lock
- Hi-limit shutoff
- Uses 4,802 BTUs per hour to maintain set temperatures in idle mode
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 80,000 BTU
- Electronic ignition
- Temperature control range: 200-390 degrees F
- 3 melt cycles
- 2 countdown timers
- Automatic boil out mode
- Displays temperature in Fahrenheit and Celsius
- Cooks with compensating time or actual time
- 110-lb.-capacity stainless steel filter pan
- Stainless steel mesh filter creates filter area of 270 sq. in.
- Motor and pump are push-button activated
- 8-GPM pump and motor
- Shuts off burners during oil draining with drain valve interlock switch
- Hands-free oil-return tube
- Tank brush and clean-out rod
- Fry tank: 19 1/2 in. W x 14 in. D
- Fry Basket:(2) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
- Overall:21 in. W x 30 1/8 in. D x 47 1/8 in. H
- 7 A, 1/3 HP
- 115 V/60 Hz/ 1 ph, cord with NEMA 5-15P plug
- Natural gas
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 70 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 70 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 380.00 |
