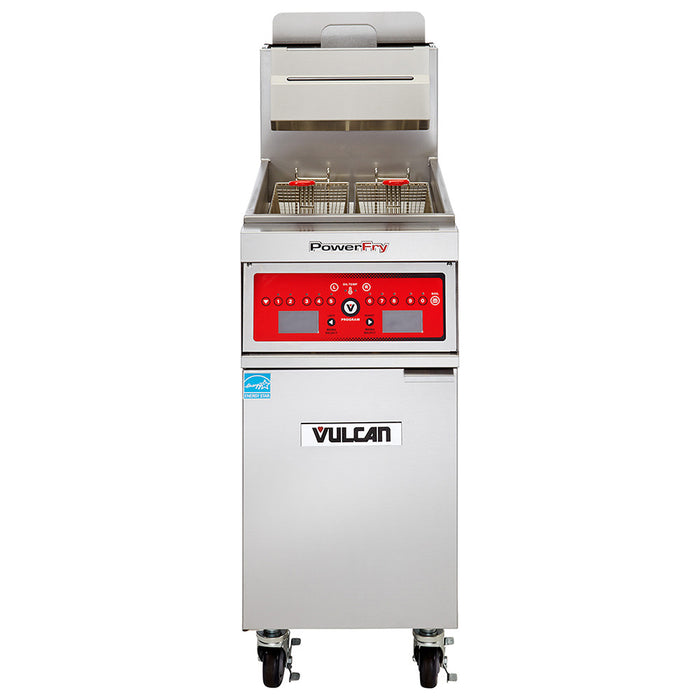

Vulcan 1VK85A Gas Fryer - (1) 90 Lb Vat, Floor Model, Liquid Propane
Mozzarella sticks, hush puppies, fish, and chicken can be fried in the Vulcan 1VK85A PowerFry5® freestanding gas fryer's 19 1/2-inch-wide by 18 1/4-inch-deep frypot, which has a 90-pound-capacity. Included twin baskets secure food in place as it's lowered into the pot, while the baskets' plastic-coated handles minimize heat transfer for user safety when lifting the baskets from oil. For ergonomic use, this 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall unit establishes a comfortable 36 1/4-inch working height. Its rust- and corrosion-resistant stainless steel cabinet and frypot are durable enough to endure high-volume, back-of-house use, and to simplify repositioning, it's fitted with four 6-inch casters, two of which can be locked to ensure stabilization during use.
Operators can adjust the Vulcan 1VK85A high-efficiency commercial fryer's temperature from 200 to 390 degrees Fahrenheit with the solid-state analog control knob located behind the door. When initially heating oil, the SoftStart® ignition system causes the unit to output 35,000 BTUs per hour to conserve energy, and the FivePass® heat transfer system evenly heats oil to minimize cold spots and expedite recovery times. Once the set temperature is reached, the idle temperature setting outputs 6,298 BTUs per hour to maintain the heat. If the unit's temperature gets hotter than the set temperature, it shuts off for user safety. To extend oil life, the frypot is built with a large V-shaped cold zone that collects sediment, minimizing the risk of debris burning and affecting oil taste. For simple cleanup, oil can be expelled from the 1 1/4-inch drain valve, while the tank and drain can be cleaned with the tank brush and clean-out rod.
- Part of the PowerFry5 series
- 90-lb. oil capacity
- SoftStart ignition system slowly increases oil temperature to reduce risk of scorching
- FivePass heat transfer system yields 65 percent cooking efficiency and 78 percent thermal efficiency
- Idle temperature setting maintains temperatures
- Flue temperature remains below 500 degrees F at maximum production rate
- Hi-limit shutoff mechanism
- Freestanding configuration with 36 1/4-in. working height
- Stainless steel cabinet and frypot
- V-shaped cold zone
- Twin fryer baskets with plastic-coated handles
- Includes tank brush and clean-out rod for cleaning frypot and drain
- 1 1/4-in. full-port ball-type drain valve
- (4) 6-in. adjustable casters (2 locking)
- 6-in. required clearance at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- 90,000 BTU
- Knob behind cabinet door
- Electronic ignition
- Operating temperature range: 200-390 degrees F
- User-selectable fat-melt modes
- Tank: 19 1/2 in. W x 18 1/4 in. D
- Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
- Powered by LP gas
- Includes 120-volt cord with NEMA 5-15P plug
- 1/2-in. ID and 3/4-in. OD rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 90 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 1 |
| Oil Capacity (lb) | 90 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 21 |
| Weight | 267.00 |
