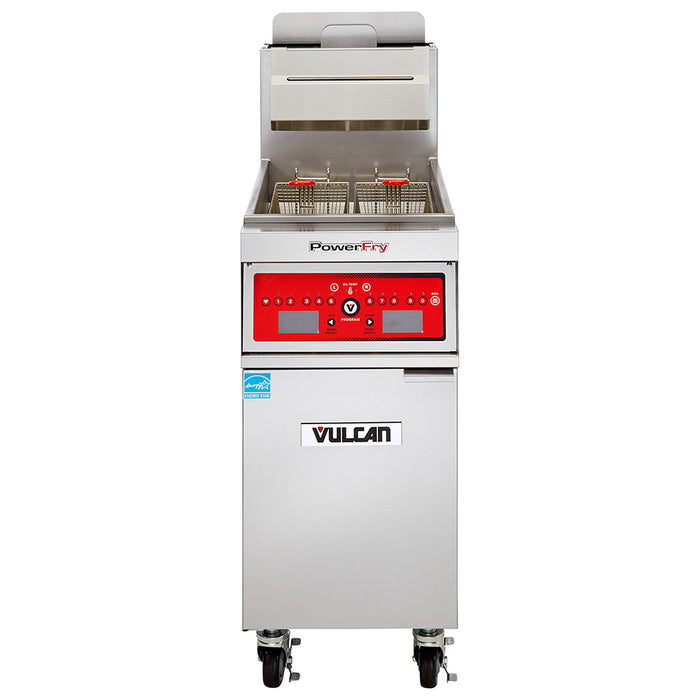

Vulcan 1VK85A Gas Fryer - (1) 90 Lb Vat, Floor Model, Natural Gas

SKU 1VK85A-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$12,804.00
$12,804.00 - $12,804.00
Current price $12,804.00

Powered by natural gas, the Vulcan 1VK85A PowerFry5® commercial gas fryer can output 90,000 BTUs per hour. To enhance energy efficiency, it features a FivePass® heat transfer system that evenly warms oil to eliminate cold spots, reduce cooking time, and expedite recovery time. For simple startup, this unit can be electronically ignited, and operators can adjust temperatures from 200 to 390 degrees Fahrenheit using the solid-state analog knob controls located behind the cabinet door. If using solid shortening, staff can select one of the fat-melt modes to streamline melting. The SoftStart® ignition system slowly heats oil initially to conserve energy; when it reaches the set temperature, the idle temperature setting causes the unit to output 6,298 BTUs per hour to maintain the required heat.

The Vulcan 1VK85A freestanding, energy-efficient fryer's 19 1/2-inch-wide by 18 1/4-inch-deep frypot accommodates 90 pounds of cooking oil. The two included baskets can be used simultaneously in the frypot to contain foods as they're fried, and for user safety, their handles are coated in plastic to minimize heat transfer. This 21-inch-wide by 34 3/8-inch-deep by 47 1/8-inch-tall unit's cabinet and frypot are made of resilient, rust- and corrosion-resistant stainless steel that can survive high-volume back-of-house use. For employee comfort, it provides a 36 1/4-inch working height. Its four 6-inch casters provide smooth mobility to ease repositioning; during use, two of the casters can be locked in place.

  • Part of the PowerFry5 line
  • Oil capacity: 90 lbs.
  • SoftStart ignition system minimizes scorching by slowly heating oil
  • FivePass heat transfer system evenly distributes heat throughout the oil
  • Idle temperature setting maintains temperatures by outputting just 6,298 BTUs per hour
  • Flue temperature doesn't exceed 500 degrees F at maximum production rate
  • Hi-limit shutoff mechanism
  • Freestanding
  • 36 1/4-in. working height
  • Stainless steel cabinet and frypot resists rust and corrosion
  • V-shaped cold zone
  • Twin fryer baskets sport plastic-coated handles
  • Includes tank brush and clean-out rod for cleaning frypot and drain
  • 1 1/4-in. full-port ball-type drain valve
  • (4) 6-in. adjustable casters (2 with brakes)
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • 90,000 BTU

  • Operating temperature range: 200-390 degrees F
  • Electronic ignition
  • User-selected fat-melt modes
  • Knob located behind cabinet door

  • Tank: 19 1/2 in. W x 18 1/4 in. D
  • Overall: 21 in. W x 34 3/8 in. D x 47 1/8 in. H
  • Powered by natural gas
  • Includes 120-volt cord with NEMA 5-15P plug
  • 1/2-in. ID and 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 90000
Capacity (lbs) 90
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 1
Oil Capacity (lb) 90
Oil Capacity/Fryer (lb) 90
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 21
Weight 267.00
