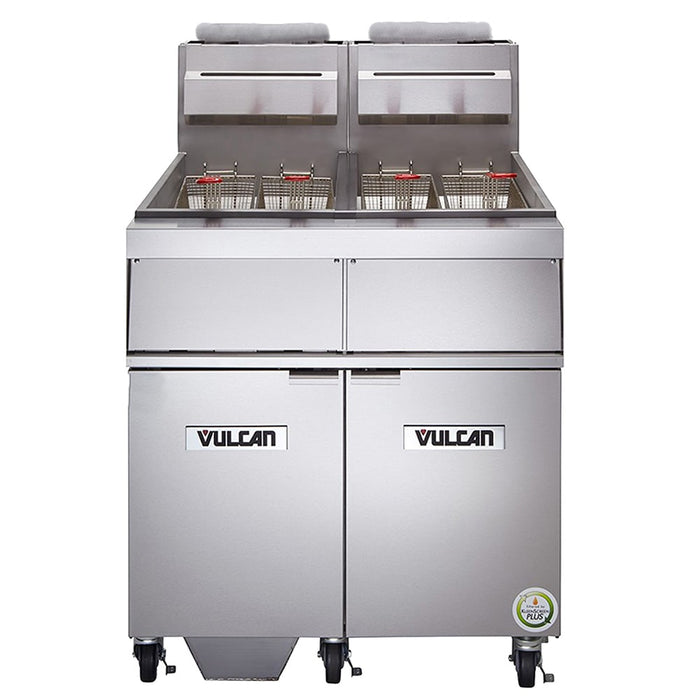

Vulcan 2GR85MF Gas Fryer - (2) 90 Lb Vats, Floor Model, Natural Gas
The Vulcan 2GR85MF natural gas fryer utilizes four heat exchanger tubes to evenly distribute heat throughout the oil vat. Staff can use the millivolt thermostat to adjust temperatures between 200 and 400 degrees Fahrenheit. This unit's high-limit shut-off system minimizes the risk of overheating, and to preserve oil taste and color, the KleenScreen PLUS® filtration system catches fine particulates. It features a stainless steel mesh screen that offers double-sided filtration and a pump and motor, which circulates oil at 8 gallons per-minute and is engaged with a push button. To ease cleaning, as much as 110 pounds of waste can be gathered in the stainless steel filter pan; the unit includes a 1 1/4-inch full-port, ball-type drain valve, a tank brush, and a clean-out rod. For safety, users should activate the combination gas and pilot shut-off valve before draining the oil, while the built-in Boil Out ByPass® system streamlines solution removal at the end of the boil-out process.
To withstand high-volume settings, the Vulcan 2GR85MF fryer is constructed of durable stainless steel. It has two vats with independent 85- to 90-pound capacities, two fry tanks, and one cabinet. Users can simply transport breaded goods to and from the fryer using the four fry baskets, which have handles coated in plastic to minimize heat transfer. So staff can transport the unit for cleaning or maintenance, it's attached to four adjustable casters; two of these casters lock to hold the unit in place when in use. Overall, this fryer measures 42 inches wide by 34 3/8 inches deep by 46 1/4 inches high and requires a ventilation system for operation.
- 85-90-lb. vat capacity
- 2 vats with 2 stainless steel fry tanks
- Stainless steel cabinet
- 4 fry baskets with plastic-coated handles
- 4 heat exchanger tubes
- Adjustable millivolt thermostat
- Temperature range: 200-400 degrees F
- Boil Out Bypass® removes boil-out solution without contacting the main drain line
- High-limit shut-off system reduces risk of overheating
- Combination gas and pilot shut-off valve
- 1 1/4-in. full-port, ball-type drain valve
- 4 adjustable casters (2 locking, 2 non-locking)
- Tank brush and clean-out rod included
- Ventilation system required
- 300,000 BTU
- 110-lb. filter pan capacity
- Stainless steel filter pan
- Kleenscreen Plus filtration system preserves oil color and taste
- Double-sided stainless steel filter mesh screen
- 1/3-HP motor and pump circulates oil at 8 GPM
- Pump and motor engaged by one-touch push button
- Overall: 42 in. W x 34 3/8 in. D x 46 1/4 in. H
- Powered by natural gas
- 6.0 A
- 115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
- 1 1/4-in. rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 150000 |
| Capacity (lbs) | 180 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 2 |
| Oil Capacity (lb) | 180 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | 2GR85M Series |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 42 |
| Weight | 688.00 |
