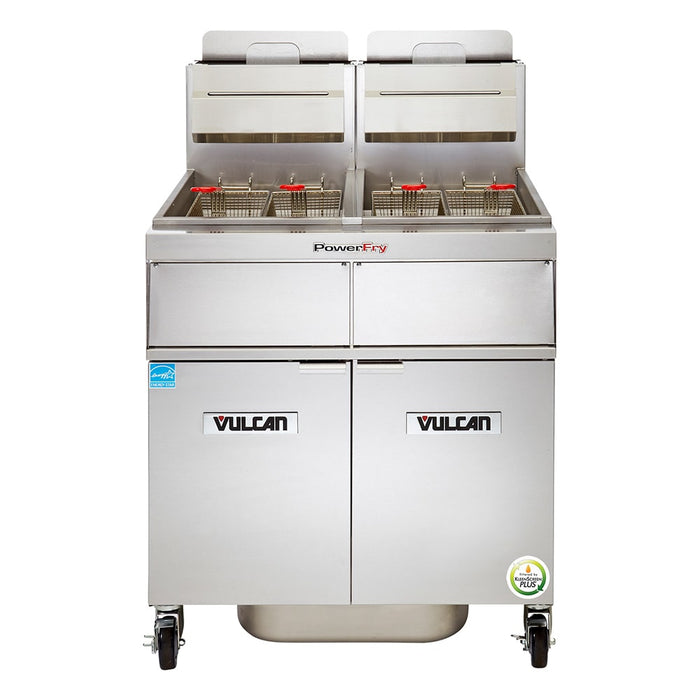

Vulcan 2TR65CF Gas Fryer - (2) 70 Lb Vats, Floor Model, Liquid Propane
The Vulcan 2TR65AF PowerFry3® high-efficiency fryer is a 42-inch-wide by 30 13/100-inch-deep by 47 1/4-inch-tall unit built with two frypots designed to hold 70 pounds of oil each. Each frypot includes twin fryer baskets to simplify lowering breaded foods into the vats and lifting them from the hot oil. To enhance user safety, each basket's handle is coated with plastic that doesn't transfer heat. For added employee comfort, this fryer provides a 36 1/4-inch working height. Both frypots and the cabinet are made of rugged stainless steel to withstand high-volume use, resist rust and corrosion in back-of-house settings, and simplify cleaning. Because it's fitted with four 6-inch casters, it's simple to transport for maintenance or cleaning; two casters include brakes for stabilization during use.
The frypots have corresponding computer controls that enable staff to adjust each tank from 200 to 390 degrees, set as many as 10 menu timers, program menu items, and initiate melt modes. When initially heating oil, the SoftStart® ignition system quickly increases oil temperature by outputting 40,000 BTUs per hour to conserve energy. The ThreePass® heat transfer system evenly distributes heat throughout the oil to yield 72 percent thermal efficiency and 60 percent cooking efficiency. Once the set temperature is reached, the idle temperature setting only outputs 5,083 BTUs per hour to maintain that generated heat. If temperatures exceed the set range, the hi-limit shutoff mechanism turns off the burners for user safety.
The Vulcan 2TR65AF commercial gas fryer's built-in KleenScreen PLUS® filtration system can be activated with the push of a button to eliminate hands-on tasks, and the drain valve interlock switch automatically shuts the burners off when the oil drains. Its pump and motor circulate oil at an 8-gallon-per-minute rate, while its stainless steel mesh filter screen removes particulates from two sides to establish a 270-square-inch filter area. The seamless 18-gauge stainless steel filter pan boasts a 110-pound oil capacity; this oil can be extracted from the unit with the lift handles when it needs to be emptied. To ease cleaning after use, it comes with a hands-free oil-return tube, tank brush, and clean-out rod.
- Part of Vulcan's PowerFry3 TR65 series
- (2) 70-lb. frypots
- ThreePass mechanism yields 72 percent thermal efficiency and 60 percent cooking efficiency
- SoftStart ignition mechanism quickly warms oil
- Energy-saving idle temperature setting maintains temperatures at just 5,083 BTUs per hour
- Flue temperature doesn't exceed 750 degrees F at maximum production rate
- Hi-limit shutoff mechanism
- Freestanding floor model with 36 1/4-in. working height and 2 batteries
- Rugged, rust- and corrosion-resistant stainless steel cabinet and frypots
- Twin fryer baskets (2 baskets per frypot) with plastic-coated handles
- Includes tank brushes and clean-out rods for cleaning
- 1 1/4-in. port ball-type drain valve
- (4) 6-in. adjustable casters (2 locking)
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- (2) 80,000 BTU
- Operating temperature range: 200-390 degrees F
- Digital character display in Fahrenheit or Celsius
- 10 menu timers display product name and cook time
- Items can be programmed offline using USB interface (software included)
- Electronic ignition
- Can cook with compensating time or actual time
- 3 melt modes
- Stainless steel mesh filter creates 270-sq.-in. filter area
- 1-touch button activates motor and pump
- Drain valve interlock switch shuts off burners when drain valve is opened
- Seamless 18-ga. stainless steel filter pan with 110-lb. oil capacity
- 8-GPM motor and pump
- Hands-free oil-return tube
- Tank brush and clean-out rod included
- 42 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
- 6 A, 1/3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by LP gas
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 140 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 2 |
| Oil Capacity (lb) | 140 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 42 |
| Weight | 696.00 |
