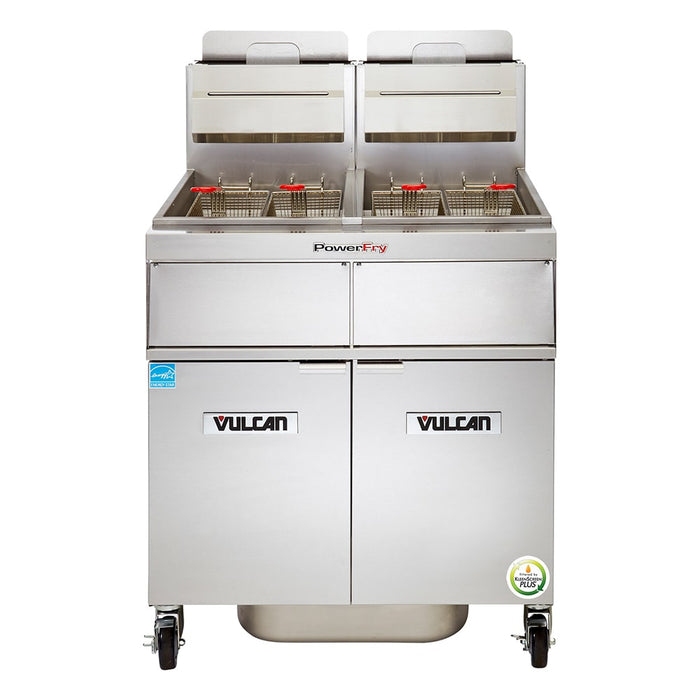

Vulcan 2TR65DF Gas Fryer - (2) 70 Lb Vats, Floor Model, Liquid Propane

SKU 2TR65DF-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$36,608.00
$36,608.00 - $36,608.00
Current price $36,608.00

To streamline operation, the Vulcan 2TR65DF freestanding gas fryer's digital solid-state controls feature an electronic ignition, temperature control from 200 to 390 degrees Fahrenheit, a digital temperature display in Fahrenheit or Celsius, three melt modes, two countdown timers, and an auto boil-out mode. Part of the PowerFry3® series, this unit is built with a ThreePass® heat transfer system that evenly distributes heat throughout the oil, yielding 72 percent thermal efficiency and 60 percent cooking efficiency. When initially heating oil, the SoftStart® ignition system outputs 40,000 BTUs per hour, prolonging oil life by quickly warming it with a reduced risk of scorching. Once the unit reaches the set temperature, it maintains the heat by only outputting 5,083 BTUs per hour to conserve energy. Overall, each of the frypots in this LP-gas-powered unit output 80,000 BTUs per hour.

Each frypot can hold 70 pounds of oila€”great for medium- and high-volume applications. Staff can load mozzarella sticks, french fries, dumplings, chicken, or chicken into each frypot's twin fryer baskets to secure them in place as they're submerged into the vat. To protect against burns, the baskets' handles are coated with plastic. This 42-inch-wide by 30 13/100-inch-deep by 47 1/4-inch-tall unit is constructed of durable stainless steel that resists rust and corrosion through rigorous use. To simplify cleaning and maintenance, it's positioned on four 6-inch casters that provide smooth mobility; two of these casters include locks for stabilization during use.

Employees can activate the Vulcan 2TR65DF high-efficiency commercial fryer's KleenScreen PLUS® filtration system with the press of a button. Its drain interlock switch automatically turns off the burners when the oil is draining, and the pump and motor circulate oil at an 8-gallon-per-minute rate. To filter out particulates, its stainless steel mesh filter screen filters from two sides, establishing a 270-square-inch filtration area. As much as 110 pounds of oil can be drained into the seamless stainless steel filtration pan, which is removable, and the tank and drain can be cleaned with the included tank brush and clean-out rod.

  • Featured in the PowerFry3 TR65 series
  • (2) 70-lb. fry tanks
  • Freestanding floor model with 2 batteries
  • 36 1/4-in. working height
  • Durable rust- and corrosion-resistant stainless steel cabinet and frypots
  • 2 fryer baskets with plastic-coated handles per frypot (4 total)
  • (4) 6-in. adjustable casters (2 locking)
  • ThreePass mechanism evenly distributes heat to enhance energy efficiency
  • SoftStart ignition mechanism quickly warms oil upon startup
  • Energy-saving idle temperature mode only outputs 5,083 BTUs per hour to maintain temperature
  • Flue temperature doesn't exceed 750 degrees F at maximum production rate
  • Hi-limit shutoff mechanism
  • 1 1/4-in. port ball-type drain valve
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • (2) 80,000 BTU

  • Electronic matchless ignition
  • Digital character display in Fahrenheit or Celsius
  • Operating temperature range: 200-390 degrees F
  • 3 melt modes
  • 2 countdown timers
  • Automatic boil-out mode
  • Can cook with compensating time or actual time

  • Motor and pump can be engaged with the push of a button
  • 2-sided stainless steel mesh filter establishes 270-sq.-in. filter area
  • Drain valve interlock switch automatically shuts off burners when drain valve is opened
  • Seamless 18-ga. stainless steel filter pan features 110-lb. oil capacity
  • 8-GPM motor and pump
  • Hands-free oil-return tube
  • Includes tank brushes and clean-out rods for cleaning

  • 42 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
  • 6 A, 1/3 HP
  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • Powered by LP gas
  • 1 1/4-in. NPT common rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 80000
Capacity (lbs) 140
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 2
Oil Capacity (lb) 140
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 42
Weight 696.00
