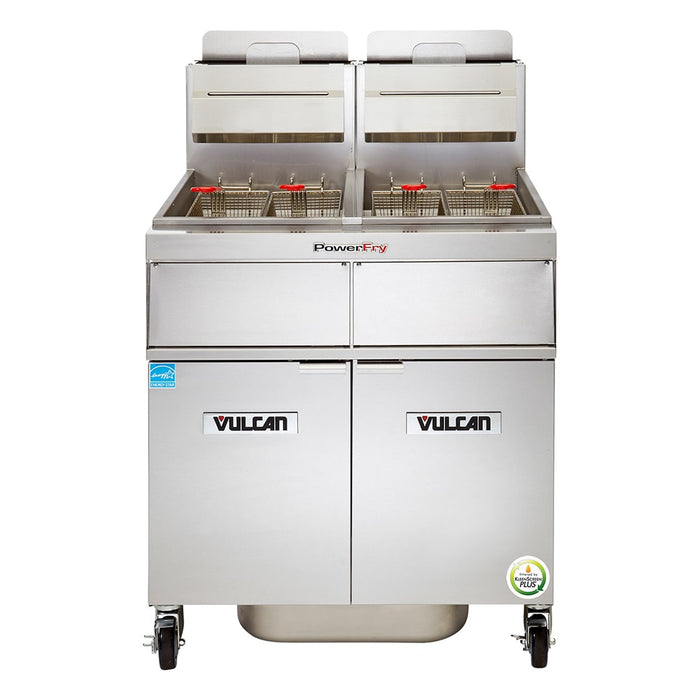

Vulcan 2TR85AF Gas Fryer - (2) 90 Lb Vats, Floor Model, Liquid Propane
The Vulcan 2TR85AF PowerFry3® high-efficiency, two-battery gas fryer is a 42-inch-wide by 34 19/50-inch-deep by 42 1/4-inch-tall freestanding unit featuring two 90-pound-capacity vats. To accommodate foods with different cooking requirements, each frypot has separate solid-state analog controls that let operators set a temperature between 200 and 390 degrees Fahrenheit and select one of the fat-melt modes. To minimize energy consumption during high-volume frying, it features an efficient ThreePass® heat transfer system that yields 72 percent thermal efficiency and 60 percent cooking efficiency. Its SoftStart® ignition system enables the unit to output 45,000 BTUs per hour rather than 90,000 BTUs per hour upon startup. Once the set temperature is reached, the idle temperature setting maintains this level by only outputting 5,575 BTUs per hour.
To streamline frying, both fryers come with two fryer baskets featuring plastic-coated handles for user safety. These baskets secure french fries, hush puppies, dumplings, tofu, chicken, and fish in place as they're submerged into and lifted from oil. To enhance staff comfort, this unit creates a 36 1/4-inch working height. Its cabinet and frypots are made of high-quality, rust- and corrosion-resistant stainless steel. To perform maintenance or clean the floor beneath the unit, the fryer can be moved smoothly because it's equipped with four 6-inch casters, two of which can be locked to keep the unit in place.
The Vulcan 2TR85AF freestanding gas fryer's KleenScreen PLUS® filtration system is built into a pull-out drawer configuration; for simple operation, this mechanism can be activated with the push of a button. The pump and motor circulate oil at an 8-gallon-per-minute rate, and the drain interlock switch automatically turns off the gas burners when oil is drained. Because its stainless steel mesh filter screen filters from two sides, it establishes a 270-square-inch filtration area. The seamless stainless steel filter pan can hold 110 pounds of oil and sports large lift handles users can grab during retrieval. To further minimize hands-on tasks, it features a hands-free oil-return tube that directs filtered oil back into the tank once the filter drawer is closed.
- Featured in the PowerFry3 TR85 collection
- (2) 90-lb. fry tanks
- 2-battery freestanding floor model
- ThreePass heat transfer system enhances energy efficiency
- SoftStart ignition mechanism outputs 45,000 BTUs per hour upon startup rather than 90,000 BTUs per hour
- Energy-saving idle temperature settings outputs 5,083 BTUs per hour while maintaining temperature
- Flue temperature doesn't exceed 750 degrees F at maximum production rate
- Hi-limit shutoff mechanism
- Rust- and corrosion-resistant stainless steel cabinet and frypots
- 4 fryer baskets with plastic-coated handles (2 per frypot)
- 36 1/4-in. working height
- (4) 6-in. adjustable casters (2 locking)
- 1 1/4-in. port ball-type drain valve
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- (2) 90,000 BTU
- Separate solid-state analog knob controls per fry tank
- Operating temperature range: 200-390 degrees F
- User-selectable fat-melt modes
- Electronic ignition
- Located behind cabinet door
- Built into a pull-out drawer at the base of the unit
- Push button activates motor and pump
- Stainless steel mesh filter can filter from 2 sides and creates 270-sq.-in. filter area
- Drain valve interlock switch
- Seamless 18-ga. stainless steel filter pan can hold 110 lb. of oil
- 8-GPM motor and pump
- Hands-free oil-return tube
- Tank brushes and clean-out rods included for cleaning
- 42 in. W x 34 19/50 in. D (54 1/2 in. D when doors are opened) x 47 1/4 in. H
- 6 A, 1/3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by LP gas
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 180 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 2 |
| Oil Capacity (lb) | 180 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry3® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 42 |
| Weight | 700.00 |
