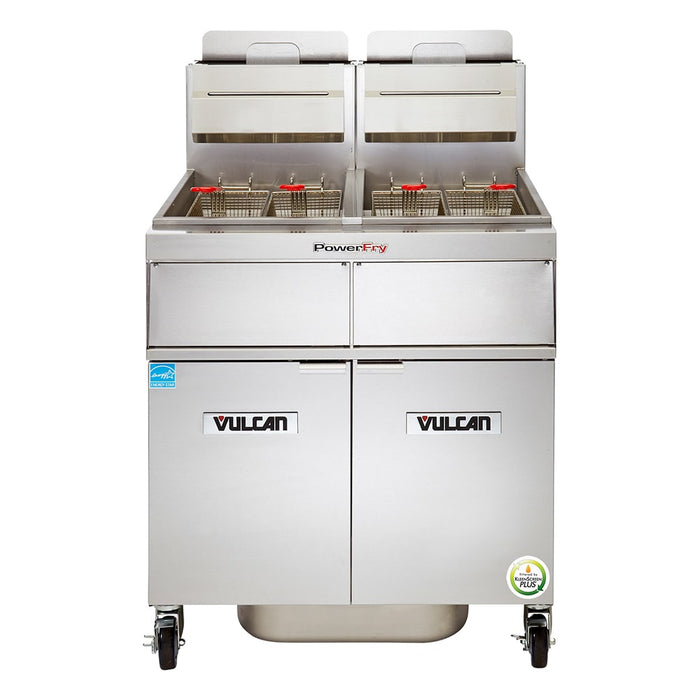

Vulcan 2TR85CF Gas Fryer - (2) 90 Lb Vats, Floor Model, Liquid Propane

SKU 2TR85CF-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$39,710.00
$39,710.00 - $39,710.00
Current price $39,710.00

The Vulcan 2TR85CF freestanding gas fryer is a 42-inch-wide by 34 19/50-inch-deep by 47 1/4-inch-tall unit built with two 90-pound-capacity frypotsa€”meaning various foods can be fried simultaneously. Both fry tanks include twin baskets to keep foods in place as they're lowered into the tanks and lifted from the oil. To protect users' hands, the handles are coated with plastic that minimizes heat transfer. Designed to endure high-volume back-of-house use, the cabinet and fry tanks are constructed of corrosion- and rust-resistant stainless steel. This two-battery unit is fitted with four 6-inch casters to simplify repositioning; because two of the casters include locks, it can remain secured in place during frying.

The fryer's computer controls enable users to set each frypot's temperature from 200 to 390 degrees Fahrenheit, choose to cook with compensating time or actual time, use 10 menu timers, select from three melt modes, and program menu items offline. Although this unit can output 90,000 BTUs per hour, its SoftStart® ignition system warms the oil, causing the unit to output just 45,000 BTUs per hour to reduce scorching risk. Its ThreePass® heat transfer system evenly guides heat throughout the oil to enhance efficiency, and to save energy, the idle temperature mode outputs 5,575 BTUs per hour to maintain the set temperature.

The Vulcan 2TR85CF high-efficiency commercial gas fryer's base houses a pull-out KleenScreen PLUS® filtration system, which is comprised of a 110-pound-capacity stainless steel filter pan, a stainless steel mesh filter screen, a suction tube, and a knurled knob that secures all components together. To activate the motor and pump, users can simply push a button for these components to circulate oil at an 8-gallon-per-minute rate. A drain interlock switch automatically turns off the gas burners as oil is draining for safety, and to create a 270-square-inch filtration area, its mesh screen filters particulates from two sides. Because the hands-free oil-return tube automatically adds filtered oil back to the unit once the filter drawer is closed, it eliminates the need to perform time-consuming hands-on tasks.

  • Part of the PowerFry3® TR85 series
  • 2-battery freestanding floor model
  • 2 fry tanks boasting 90-lb. capacities
  • ThreePass heat transfer system evenly disperses heat throughout oil
  • SoftStart ignition mechanism rapidly heats oil upon startup
  • Idle temperature mode outputs 5,575 BTUs per hour to maintain temperature
  • Flue temperature doesn't exceed 750 degrees F at maximum production rate
  • Hi-limit shutoff
  • Durable stainless steel cabinet and frypots
  • Each frypot includes twin fryer baskets with plastic-coated handles
  • 36 1/4-in. working height
  • 2 of (4) 6-in. adjustable casters include locks
  • 1 1/4-in. port ball-type drain valve
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • (2) 90,000 BTU

  • Corresponding controls for each fry tank
  • Operating temperature range: 200-390 degrees F
  • Digital character display can be set to Fahrenheit or Celsius
  • 10 menu timers display product name and cook time
  • Items can be programmed offline using a USB interface (software included)
  • Electronic ignition
  • Can cook with compensating time or actual time
  • 3 melt modes

  • Comprised of 110-lb.-capacity stainless steel filter pan, stainless steel mesh filter screen, suction knob, and knurled knob
  • Pull-out drawer assembly at fryer base
  • Push-button pump and motor activation
  • Oil is circulated at 8 GPM
  • Stainless steel mesh filter screen establishes 270-sq.-in. filter area
  • Drain valve interlock switch automatically turns off burners as oil is drained
  • Hands-free oil-return tube adds oil back to the tanks when drawer is closed
  • Tank brushes and clean-out rods included for cleaning

  • 42 in. W x 34 19/50 in. D (54 1/2 in. D when doors are opened) x 47 1/4 in. H
  • 6 A, 1/3 HP
  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • Powered by LP gas
  • 1 1/4-in. NPT common rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 90000
Capacity (lbs) 180
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 2
Oil Capacity (lb) 180
Oil Capacity/Fryer (lb) 90
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 42
Weight 700.00
