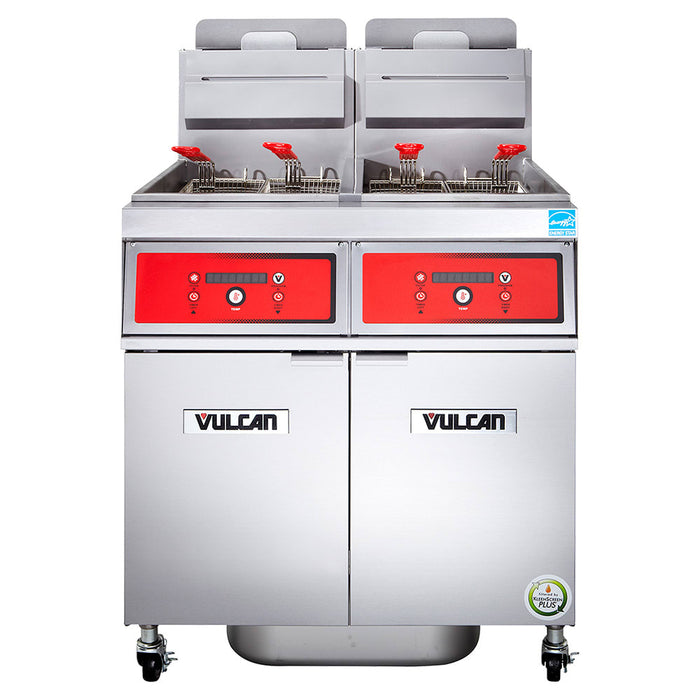

Vulcan 2VK45AF Gas Fryer - (2) 50 Lb Vats, Floor Model, Liquid Propane
Because it's part of the PowerFry5® series, the Vulcan 2VK45AF commercial gas fryer is built with an energy-efficient FivePass® heat transfer system that evenly distributes heat throughout oil to yield 78 percent thermal efficiency and 66 percent cooking efficiency. Its 50-pound frypots have separate solid-state analog knob controls that enable operators to set temperatures from 200 to 390 degrees Fahrenheit and initiate fat-melt modes. Once the temperature is set, the SoftStart® ignition system rapidly heats oil; the idle temperature setting only outputs 4,251 BTUs per hour to save energy while maintaining the set temperature. To maintain a comfortable kitchen environment, the flue temperature doesn't exceed 500 degrees Fahrenheit when the unit is operating at the maximum production rate.
The Vulcan 2VK45AF freestanding high-efficiency fryer's two fryers each include twin fryer baskets that keep breaded and battered contents contained during frying. To minimize the risk of heat transfer, their handles are plastic coated. The frypots and the cabinet are constructed of stainless steela€”a durable, rust- and corrosion-resistant metal that can simply be wiped clean. Its base features an integrated KleenScreen PLUS® filtration system on a pull-out drawer to promote frequent filtering; with the push of a button, this system automatically starts a filtration cycle, circulating 8 gallons of oil per minute. Its filter pan can hold 70 pounds of oil, and once the filter drawer is closed, the oil-return tube adds filtered shortening back into the frypots to streamline operation. Overall, this unit measures 31 inches wide by 30 13/100 inches deep by 47 1/4 inches tall and is mounted on four 6-inch casters that provide smooth mobility when repositioning is needed.
- Part of the PowerFry5 VK45 series
- 2-battery, freestanding floor model
- (2) 50-lb. frypots
- FivePass heat transfer system enhances efficiency by evenly distributing heat
- SoftStart ignition mechanism quickly warms oil
- Idle temperature mode outputs just 4,251 BTUs per hour to maintain heat
- Flue temperature doesn't exceed 500 degrees F at maximum production rate
- Hi-limit shutoff
- Stainless steel cabinet and frypots
- Includes 4 fryer baskets featuring plastic-coated handles (2 per frypot)
- Establishes 36 1/4-in. working height
- (4) 6-in. adjustable casters (2 with locks)
- 1 1/4-in. port ball-type drain valve
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- (2) 70,000 BTU
- Separate controls per fry tank
- Operating temperature range: 200-390 degrees F
- User-selectable fat-melt modes
- Electronic ignition
- Located behind cabinet doors
- Pull-out drawer assembly in the base of the fryer
- 70-lb.-capacity stainless steel filter pan
- Stainless steel mesh filter screen creates filter area from 270 to 350 sq. in.
- Activate filtration cycle with push of a button
- Pump and motor circulate oil at 8 GPM
- Drain valve interlock switch automatically turns off burners during oil draining
- Hands-free oil-return tube adds oil back to the tanks
- Tank brushes and clean-out rods included for cleaning
- 31 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
- 7 A, 1/3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by LP gas
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 70000 |
| Capacity (lbs) | 100 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 2 |
| Oil Capacity (lb) | 100 |
| Oil Capacity/Fryer (lb) | 50 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 31 |
| Weight | 530.00 |
