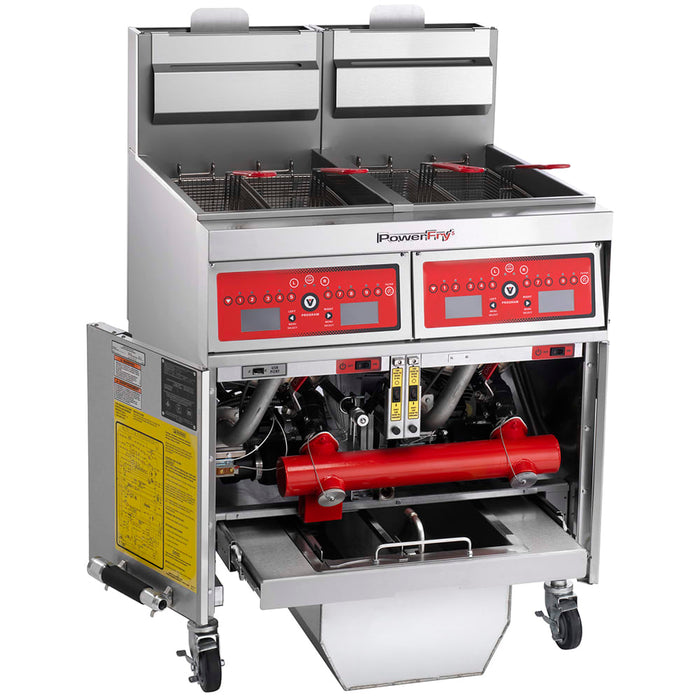

Vulcan 2VK45CF Gas Fryer - (2) 50 Lb Vats, Floor Model, Natural Gas
Sized to create a 36 1/4-inch working height, the Vulcan 2VK45CF freestanding commercial gas fryer measures 31 inches wide by 30 13/100 inches deep by 47 1/4 inches tall. Its two 50-pound-capacity frypots enable users to fry products with varying cooking requirement simultaneously without flavor transfer. Both fryers come with fryer baskets that contain contents as they're lowered in the vats, fried, and removed from the oil; for user safety, the baskets' handles are plastic coated. Designed to survive high-volume back-of-house use, this unit is constructed of durable, rust- and corrosion-resistant stainless steel. Its base is equipped with four 6-inch casters that provide smooth mobility, and two of these casters can be locked for stability during use.
Both frypots have independent computer controls that enable operators to set temperatures from 200 to 390 degrees Fahrenheit, initiate melt modes, and program as many as 10 menu timers. Digital displays provide accurate readouts so users can ensure fryers are set to the correct modes. To enhance this natural-gas-powered unit's energy efficiency, its FivePass® heat transfer system uniformly disperses heat throughout the oil, yielding 78 percent thermal efficiency and 66 percent cooking efficiency. When oil is initially heated, the SoftStart® ignition system quickly warms it to the desired temperature. Once the set temperature is reached, the idle temperature mode maintains the heat by outputting only 4,251 BTUs per hour.
To extend oil life and enhance its quality, the Vulcan 2VK45CF high-efficiency fryer's KleenScreen PLUS® filtration system can be activated with the push of a button. This system's motor and pump circulate oil at 8 gallons per minute, and 70 pounds of oil can be emptied into the stainless steel filter pan. To eliminate hands-on tasks, the oil-return tube adds filtered oil back in the frypots once the filter drawer is closed.
- Part of the PowerFry5 VK45 collection
- Freestanding unit with 2 batteries
- (2) 50-lb. frypots
- Frypots and cabinets made of stainless steel
- Includes 4 fryer baskets with plastic-coated handles (2 per frypot)
- 36 1/4-in. working height
- (4) 6-in. adjustable casters (2 with locks)
- FivePass heat transfer system yields 66 percent cooking efficiency and 78 percent thermal efficiency
- SoftStart ignition system quickly heats oil
- Idle temperature mode only outputs 4,251 BTUs per hour to maintain set temperature
- Flue temperature won't exceed 500 degrees F at maximum production rate
- Hi-limit shutoff
- 1 1/4-in. port ball-type drain valve
- 6-in. clearance required at sides and rear when placed near combustible construction
- 16-in. minimum clearance to adjacent open-top burner units
- (2) 70,000 BTU
- Operating temperature range: 200-390 degrees F
- Digital character display in Fahrenheit or Celsius
- 10 menu timers display product name and cook time
- Items can be programmed offline using a USB interface (software included)
- Electronic ignition
- Can cook with compensating time or actual time
- 3 melt modes
- Pull-out drawer assembly
- 70-lb.-capacity stainless steel filter pan
- Stainless steel mesh filter screen provides filtration area from 270 to 350-sq.-in.
- Filtration cycle is push-button activated
- Pump and motor circulate oil at 8 GPM
- Drain valve interlock switch automatically turns off burners during oil draining
- Hands-free oil-return tube adds oil back to the tanks
- Tank brushes and clean-out rods included for cleaning
- 31 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
- 7 A, 1/3 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by natural gas
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 70000 |
| Capacity (lbs) | 100 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 2 |
| Oil Capacity (lb) | 100 |
| Oil Capacity/Fryer (lb) | 50 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 31 |
| Weight | 530.00 |
