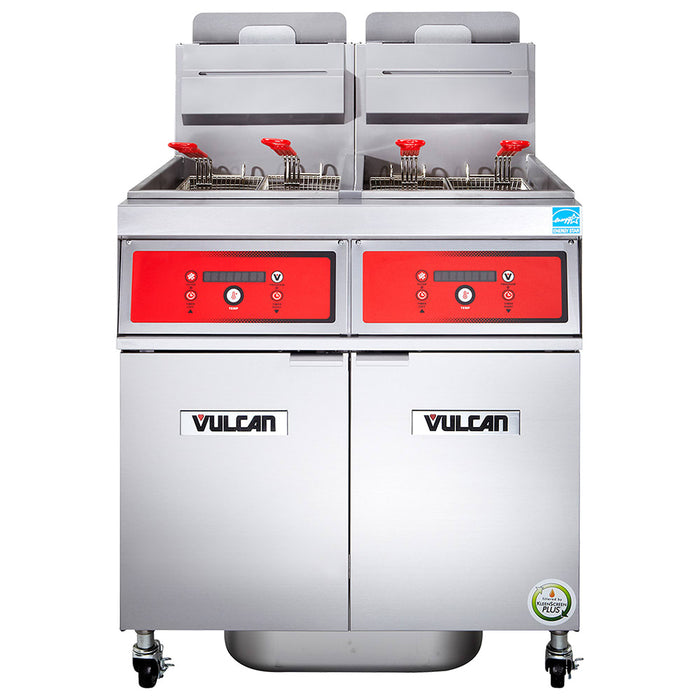

Vulcan 2VK65CF Gas Fryer - (2) 70 Lb Vats, Floor Model, Liquid Propane
When powered on, the Vulcan 2VK65CF gas fryer's SoftStart® ignition system starts at 70,000 BTU per hour and gradually increases to 160,000 BTUs; during off-peak hours, it sits in an idle state at 9,604 BTUs. Its FivePass® heat transfer system distributes heat evenly throughout the oil, providing a fast recovery after dropping in cold or frozen foods. For durability, the tank and cabinet are constructed of stainless steel. It's built with two vatsa€”each holds 65 to 70 poundsa€”and has twin fry baskets with plastic-coated handles to decrease heat transfer. The V-shaped cold zone collects sediment and can be cleaned easily with the clean-out rod. This freestanding model measures 42 inches wide by 30 1/8 inches deep by 47 1/8 inches high and is mounted on four 6-inch casters, two of which can be locked for stationary or mobile use.
Operators can comfortably use the Vulcan 2VK65CF PowerFry5® fryer because sits at a 36 1/4-inch working height. Its hi-limit shut off stops gas consumption when oil gets too hot to reduce fire risk. For simple operation, its programmable computer controls offer a digital character display, ten menu timers, and offline menu programming, which can be uploaded through a USB. It operates between 200 to 390 degrees and has three melt modes to accommodate solid shortening. Designed with the Kleenscreen Plus® filtration system, its stainless steel mesh filter screen filters from two sides and has a filter pan constructed of 18-gauge stainless steel.
- Part of the PowerFry5 VK65 series
- Vat capacity: (2) 65 to 70 lb.
- Freestanding with 2 batteries
- Cabinet and tank made of stainless steel
- FivePass heat transfer system evenly heats oil for fast recovery
- Yields 68 percent cooking and 78 percent thermal efficiency
- Plastic-coated handles on twin fry baskets
- 36 1/4-in. working height
- V-shaped cold zone collects sediment to prevent burning
- Hi-limit shut off stops gas intake when oil is too hot
- Included clean-out rod and tank brush ease cleaning
- (4) 6-in. adjustable casters (2 locking)
- SoftStart ignition system functions at 70,000 BTU/hr. during startup to extend oil life
- Idle rate: 9,604 BTU/hr.
- Overall output: 160,000 BTU/hr.
- 1 1/4-in. full-port ball-type drain valve
- 6-in. clearance is required at both sides and rear to combustible materials
- Requires 16-in. clearance to open-top burners
- Digital character display
- 10 menu timers display product name and cook times
- Offline menu programming can be uploaded through USB (software included)
- Temperature control between 200 to 390 degrees F
- Digital temperature display in Fahrenheit or Celsius
- Timers can be changed to actual or compensating time to accommodate temperature fluctuations
- 3 melt modes
- Drain-valve interlock switch automatically turns off gas burners if drain valve is opened
- Seamless 18-ga. stainless steel filter pan weighs 20 1/2 lbs. Frying compound capacity: 110 lb. 2. Stainless steel mesh filter screen filters from two sides
- 270-sq.-in. filter area
- 8 gal./min. pump
- One-touch push-button switch engages pump and motor
- 6-in. high-temperature discard hose
- Overall: 42 in. W x 30 1/8 in. D x 47 1/8 in. H
- LP gas
- 7 A, 1/3 HP
- 115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 80000 |
| Capacity (lbs) | 140 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 2 |
| Oil Capacity (lb) | 140 |
| Oil Capacity/Fryer (lb) | 70 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 42 |
| Weight | 696.00 |
