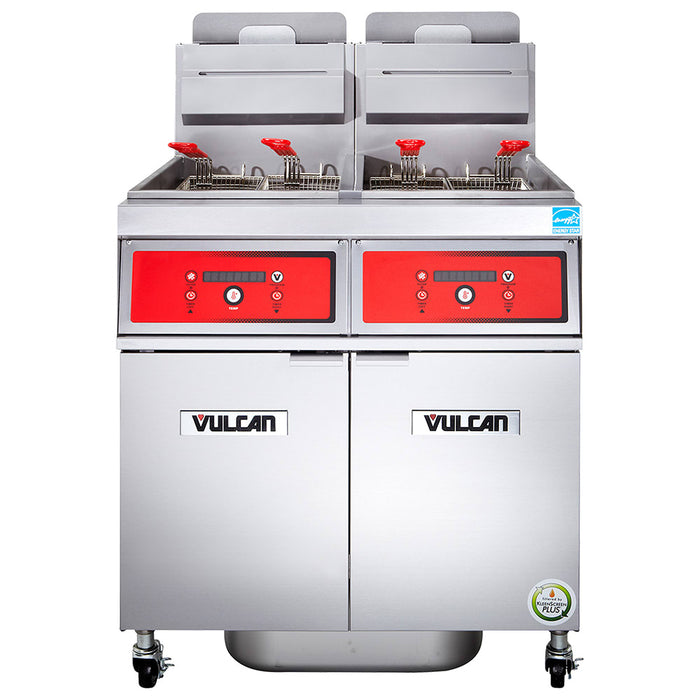

Vulcan 2VK85DF Gas Fryer - (2) 90 Lb Vats, Floor Model, Liquid Propane
The Vulcan 2VK85DF PowerFry5® fryer uses a FivePass® heat transfer system that evenly spreads heat throughout the oil, enabling fast recovery from cold and frozen foods. It yields 65 percent cooking and 78 percent thermal efficiency. The two vats each accommodate 85 to 90 pounds of oil for cooking large baskets and include twin fry baskets for simple product loading and unloading. This durable piece's cabinet and tank are constructed of stainless steel, while its V-shaped cold zone gathers sediment to prevent it from burning and affecting flavor. When the oil gets too hot, the hi-limit shut off will stop gas intake, reducing the fire risk. For comfortable use, it sits at a 36 1/4-inch working height.
Designed with the Kleenscreen Plus® filtration system, this unit prolongs its oil life while reducing the need for oil top offs. Its 1 1/4-inch drain valve features an interlock switch, automatically turning off the gas burners when draining. Its 20 1/4-pound filter pan is constructed of durable, 18-gauge stainless steel and a 270-square-inch stainless steel mesh screen. This screen filters sediment out of used oil, enabling reuse without flavor transfer. This filtration is activated by a one-touch push button and circulates oil at 8 gallons per minute; for simple cleaning, this model comes with a clean-out rod and tank brush.
Built with the SoftStart® ignition system, this unit starts at 90,000 BTUs per hour and slowly preheats to 180,000 degrees. When not in use, it maintains temperatures with 12,596 BTUs to reduce energy consumption. The temperature controls on this equipment maintain temperatures between 200 and 390 degrees Fahrenheit and includes an electronic ignition and two countdown timers. It offers three melt modes to liquify solid shortening to a usable consistency and an auto boil-out mode that simplifies cleaning. Overall, it measures 42 inches wide by 34 3/8 inches deep by 47 1/8 inches high and operates with liquid propane.
- Featured in the PowerFry5 VK85 line
- Vat capacity: (2) 85 to 90 lb.
- 2-battery setup
- Freestanding
- Tank and cabinet are rigid stainless steel
- FivePass heat transfer system heats oil evenly
- Yields 65 percent cooking and 78 percent thermal efficiency
- Twin fry baskets with plastic-coated handles
- V-shaped cold zone collects loose sediment
- Hi-limit shut off stops gas flow when oil gets too hot
- 36 1/4-in. working height
- 6-in. clearance from combustible construction is required at both sides and rear
- Must be placed at least 16-in. from open-top burners
- Includes clean-out rod and tank brush
- (4) 6-in. adjustable casters (2 locking)
- SoftStart ignition system operates with 90,000 BTU/hr. during startup to prolong oil life
- Idle rate: 12,596 BTU/hr.
- Overall output: 180,000 BTU/hr.
- 1 1/4-in. full-port ball-type drain valve
- Operates with temperatures between 200 and 390 degrees F
- Digital display shows temperature in Fahrenheit or Celsius
- Quick temperature recovery
- Electronic ignition
- 3 melt modes
- 2 countdown timers can use compensating or real time
- Auto boil-out mode eases cleaning
- Drain valve interlock switch automatically turns off gas burners if drain valve is opened
- 20 1/2-lb., seamless filter pan made of 18-ga. stainless steel
- 270-sq-in. stainless steel mesh filter screen filters from two sides
- Dishwasher-safe filter pan and screen
- Pan has lift handles and is placed on drawer slides 110-lb. frying compound capacity 2. Motor and pump circulates oil at 8 GPM
- One-touch push-button switch activates filter pump controls
- 6-in. high-temperature discard hose
- Overall: 42 in. W x 34 3/8 in. D x 47 1/8 in. H
- LP gas
- 7 A, 1/3 HP
- 115 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
- 1 1/4-in. NPT common rear gas connection
Specifications
| Manufacturer | Vulcan |
| Baskets | 2 |
| BTU per Fryer | 90000 |
| Capacity (lbs) | 180 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Number of Fry Pots | 2 |
| Oil Capacity (lb) | 180 |
| Oil Capacity/Fryer (lb) | 90 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PowerFry5® |
| Special Features | Casters Included - Uninstalled |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Fry Tank |
| Width (in) | 42 |
| Weight | 700.00 |
