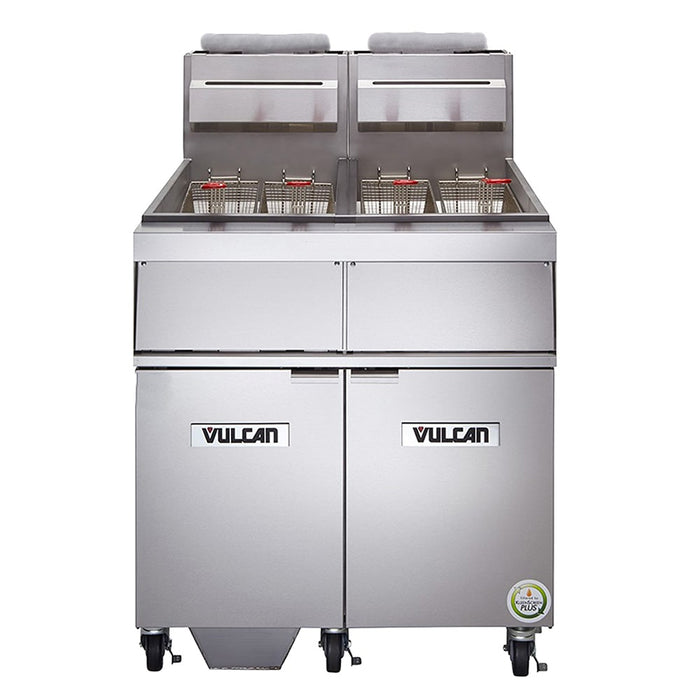

Vulcan 3GR45MF Gas Fryer - (3) 50 Lb Vats, Floor Model, Liquid Propane

SKU 3GR45MF-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$35,204.00
$35,204.00 - $35,204.00
Current price $35,204.00

Designed with three batteries, the Vulcan 3GR45MF gas fryer's vats each accommodate 45 to 50 pounds of oila€”great for frying breaded fish, chicken tenders, and fries in high-volume establishments. Its four heat exchanger tubes spread heat evenly throughout the oil; because it has a large heat transfer area, it's energy efficient. The durable stainless steel cabinet and tank endure rigorous use, while its twin fry baskets reduce user burns with plastic-coated handles. To collect loose sediment so it doesn't burn, the cold zone boasts a V-shaped design. This floor model's millivolt thermostat sets temperatures between 200 and 400 degrees Fahrenheit. It includes a tank brush, stainless steel crumb scoop, and a clean-out rod to streamline cleaning. It also sits on four 6-inch casters that ease mobility for maintenance and cleaning; two of these casters lock for stationary placement.

To reducet fire risks, the Vulcan 3GR45MF deep fryer has a hi-limit shut off that turns off the gas burners when oil reaches extreme temperatures. It operates with liquid propane, outputs 360,000 BTUs per hour, and features a combination gas shut-off valve and pilot safety system for enhanced safety. Operators can prolong the oil's life with the Kleenscreen Plus® filtration system, which filters oil through its 270-square-inch stainless steel mesh screen and recirculates it to be reused with minimal flavor transfer. The 18-gauge stainless steel filter pan weighs 20 1/2 pounds, is built with lift handles, and sits on drawer slides for simple handling. Its 1 1/4-inch ball-type drain valve includes an interlock switch that automatically powers off the gas burners when the valve is draining oil. For simplified tank cleaning, its Boil Out ByPass® the system enables employees to boil water and cleaning solution in the vat and then remove the liquids without interfering with other fryer parts; the pan and screen are also dishwasher safe.

  • Part of the GR series
  • 45- to 50-lb. capacity per vat
  • 3 batteries
  • Floor model
  • Stainless steel cabinet and tank
  • 4 heat exchanger tubes
  • V-shaped cold zone
  • 1 1/4-in. full-port, ball-type drain valve
  • Twin fry basket with plastic-coated handles
  • Millivolt thermostat control temperature range: 200 to 400 degrees F
  • Includes tank brush, stainless steel crumb scoop, and clean-out rod
  • (4) 6-in. casters (2 locking)
  • Hi-limit shut off
  • 360,000 BTU
  • Combination gas shut-off valve and pilot safety system

  • Drain valve interlock switch automatically turns off gas burners if drain valve is opened
  • 20 1/2-lb. seamless filter pan made of 18-ga. stainless steel
  • 270-sq-in. stainless steel mesh filter screen is double sided
  • Boil Out ByPass removes boil-out solution from vat
  • Dishwasher-safe filter pan and screen
  • Pan has lift handles and is placed on drawer slides 70-lb. frying compound capacity 2. Motor and pump circulate oil at 8 gallons per minute
  1. One-touch push-button switch activates filter pump controls
  2. High-temperature discard hose

  • Overall: 46 1/2 in. W x 30 1/8 in. D x 46 1/4 in. H
  • LP gas
  • 6 A, 1/3 HP
  • 120 V/60 Hz/1 ph, includes cord with NEMA 5-15P plug
  • 1/2-in. ID and 3/4-in. OD rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 120000
Capacity (lbs) 150
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 3
Oil Capacity (lb) 150
Oil Capacity/Fryer (lb) 50
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series 3GR45M Series
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 46.5
Weight 695.00
