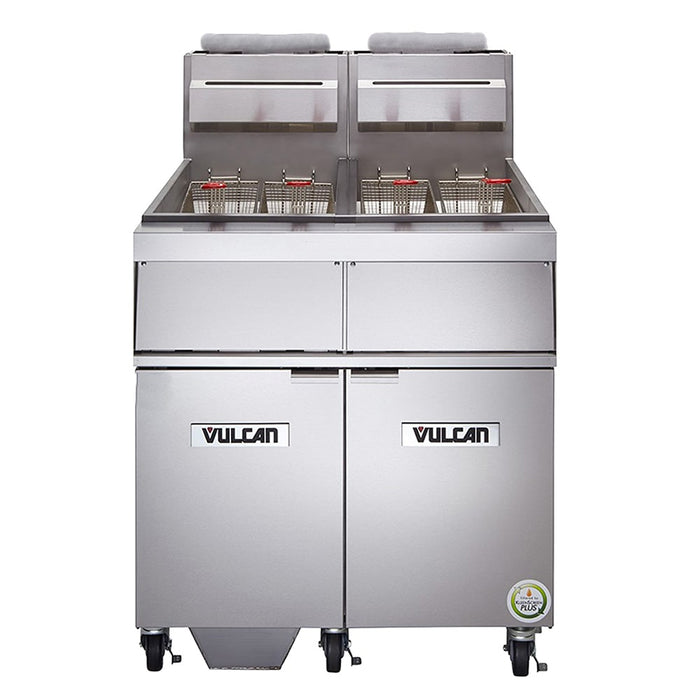

Vulcan 3GR65MF Gas Fryer - (3) 70 Lb Vats, Floor Model, Natural Gas

SKU 3GR65MF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$39,787.00
$39,787.00 - $39,787.00
Current price $39,787.00

For cooking breaded fish, chicken, and other meats, the Vulcan 3GR65MF gas fryer operates in a battery system design that features three total 70-pound-capacity vats. This unit boasts a temperature range from 200 to 400 degrees Fahrenheit and is operated with millivolt thermostat controls. To assist with high-volume production without sacrificing quality, its five heat tubes provide even heat exchange.

To maintain oil conditions after back-to-back frying and reduce premature refilling, it integrates a KleenScreen PLUS® filtration system that circulates frying compound at 8 gallons per minute once activated via its one-touch push button. This system's Boil Out ByPass® removes boil-out solution from the fry tanks without contacting the drain manifold, motor, pump, or filter pan. Designed for efficient filtering, its stainless steel mesh screen filters from two sides.

Overall, the Vulcan 3GR65MF floor model gas fryer measures 63 inches wide by 30 1/8 inches deep by 46 1/4 inches high. This heavy-duty unit's 19 1/4-inch-wide by 14-inch-deep fry tank and cabinet are constructed of stainless steel, which makes it ideal for withstanding heavy-grease kitchens. To aid in cleaning processes, operators can utilize Its 1 1/4-inch full port ball type drain valve, tank brush, stainless steel crumb scoop, and clean-out rod.

  • Part of the 3GR65M series
  • 3 fry pots
  • Capacity per fryer vat: 65-70 lb. (195-210 lb. total)
  • Twin baskets feature plastic-coated handles
  • (4) 6-in. adjustable casters
  • 36 1/4-in. working height
  • Stainless steel cabinet and fry tank
  • Includes tank brush, stainless steel crumb scoop, and clean-out rod
  • 1 1/4-in. full port ball type drain valve

  • Millivolt thermostat controls
  • Temperature range: 200-400 degrees F
  • Hi-limit shutoff
  • Combination gas shut-off valve and pilot system

  • Motor and pump circulate compound at 8 gal. per minute
  • 18-ga. stainless steel filter pan
  • Stainless steel filter mesh screen
  • Boil Out ByPass function
  • 1 1/4-in. port ball type drain valve
  • Interlock switch

  • Twin baskets: 9 1/4 in. W x 13 1/4 in. D x 6 in. H
  • Fry tanks: 19 1/4 in. W x 14 in. D
  • Overall: 63 in. W x 30 1/8 in. D x 46 1/4 in. H
  • 6 A, 1/3 HP
  • 115 V/60 Hz/1 ph
  • Natural gas powered
  • 450,000 BTU

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 150000
Capacity (lbs) 210
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 3
Oil Capacity (lb) 210
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series 3GR65M Series
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 63
Weight 904.00
