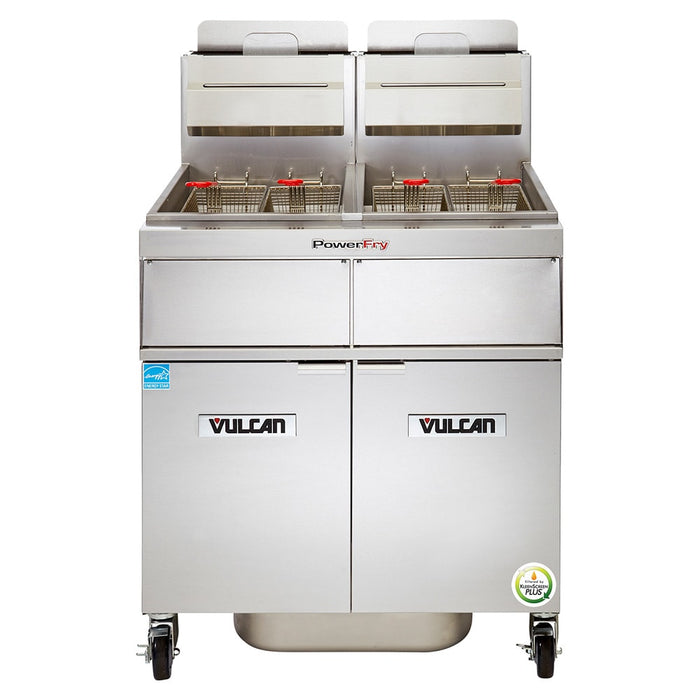

Vulcan 3TR65DF Gas Fryer - (3) 70 Lb Vats, Floor Model, Natural Gas

SKU 3TR65DF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$49,776.00
$49,776.00 - $49,776.00
Current price $49,776.00

To prevent scorching while conserving energy , the Vulcan 3TR65DF natural gas fryer features a SoftStart® electronic ignition that lowers energy output to 240,000 BTU per hour during startupa€”half of the unit's overall BTU output. This three-battery unit can hold 65 to 70 pounds of oil per vat, and its KleenScreen PLUS® filtration system stains oil through a stainless steel mesh screen to remove particulate and sediment. To cook fries, mozzarella sticks, chicken, fish, and other breaded meats, it can create temperatures between 200 and 390 degrees Fahrenheit. Its ThreePass® heat transfer system evenly distributes heat throughout oil with 72 percent thermal efficiency and 60 percent cooking efficiency. For accuracy, employees can utilize its two countdown timers that can display actual or compensating time to account for temperature fluctuations.

Overall, the Vulcan 3TR65DF gas fryer measures 63 inches wide by 30 1/8 inches deep by 47 1/4 inches high. Because its cabinet and fry tank are made of stainless steel, it's durable and corrosion resistant. To hold the included 9 1/4-inch-wide by 13 1/4-inch-deep by 6-inch-high twin baskets, its fry tanks measure 19 1/2 inches wide by 14 inches deep. This unit sits on 6-inch casters, so it can be wheeled out of the way for cleaning the floor underneath. To further simplify cleaning, it includes a tank brush and clean-out rod and features an auto boil-out mode.

  • Part of the PowerFry3® series
  • 3 fryers
  • Per fryer capacity: 65-70 lb. (195-210 lb. total)
  • (4) 6-in. adjustable casters
  • Stainless steel cabinet and fry tank
  • Twin baskets feature plastic-coated handles
  • Maintains cooking temperatures with just 5,083 BTU per hour when idle
  • Includes tank brush and clean-out rod

  • Temperature range: 200-390 degrees Fahrenheit
  • Solid-state digital control with melt cycles
  • 2 countdown timers can track compensating or actual time
  • ThreePass heat transfer system
  • SoftStart electronic ignition system

  • KleenScreen PLUS filtration system
  • 18-ga. stainless steel filter pan
  • Stainless steel filter mesh screen
  • 1 1/4-in. port ball type drain valve
  • Auto boil-out mode
  • Interlock switch

  • Twin baskets: 9 1/4 in. W x 13 1/4 in. D x 6 in. H
  • Fry tanks: 19 1/2 in. W x 14 in. D
  • Overall: 63 in. W x 30 1/8 in. D x 47 1/4 in. H
  • 6 A, 1/3 HP
  • 115 V/60 Hz/1 ph
  • Natural gas powered
  • 240,000 BTU

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 80000
Capacity (lbs) 210
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 3
Oil Capacity (lb) 210
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 63
Weight 916.00
