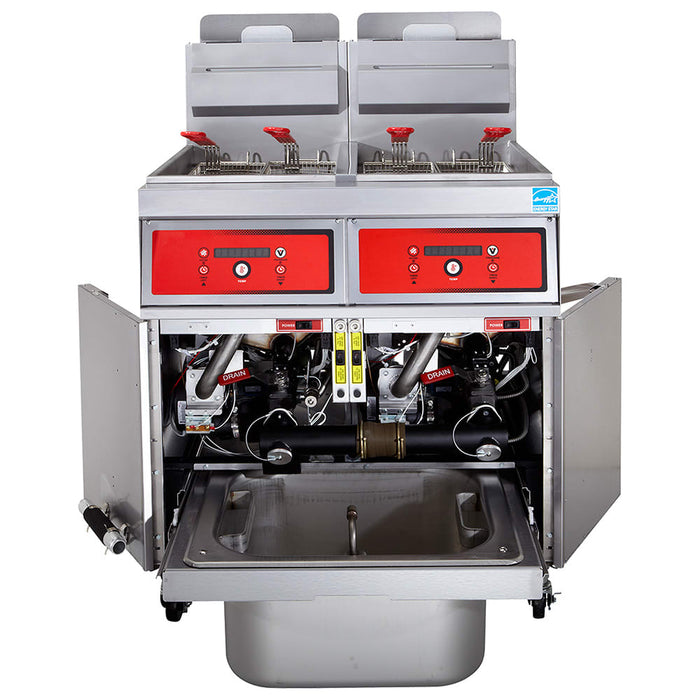

Vulcan 3VK45CF Gas Fryer - (3) 50 Lb Vats, Floor Model, Natural Gas

SKU 3VK45CF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$56,569.00
$56,569.00 - $56,569.00
Current price $56,569.00

To maximize throughput of shrimp, chicken, dumplings, mozzarella sticks, and fries, the Vulcan 3VK45CF PowerFry5® commercial gas fryer is built with three 50-pound-capacity frypots. Each vat comes with twin fryer baskets that contain breaded foods during frying, while their plastic-coated handles lend a secure grip and protect against heat transfer. For quick heating and reduced lag times during recovery, this unit features a FivePass® heat transfer system that yields 66 percent cooking efficiency and 78 percent thermal efficiency. The SoftStart® ignition system heats oil by outputting 35,000 BTUs per hour, aiding in saving energy and extending the oil life. Once the desired temperature is reached, the idle temperature mode only outputs 4,251 BTUS per hour to maintain the heat, further enhancing energy efficiency.

To streamline operation, each fryer has corresponding computer controls comprised of temperature adjustment from 200 to 390 degrees Fahrenheit, three melt modes, 10 menu timers, options to cook with compensating time or actual time, and a digital display; menu items can be uploaded onto the unit with a USB interface. The KleenScreen PLUS® filtration system positioned on a pull-out drawer in the fryer's base can be activated with a push of a button to promote frequent oil filtration. Its stainless steel filtration pan can hold 70 pounds of oil, while its stainless steel mesh filter screen filters particulate from two sides, establishing a filtration area as large as 350 square inches. To quicken the filtration process, its 1/3-horsepower pump and motor circulate oil at 8 gallons per minute, and the oil-return tube guides filtered shortening back to the frypots once the filter drawer is closed.

Staff can comfortably work at this Vulcan 3VK45CF high-efficiency commercial fryer because its 46 1/2-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall structure establishes a 36 1/4-inch working height. To endure high-volume use, its stainless steel construction resists rusting, scratching, and denting; it's also simple to wipe clean to maintain a sanitary workstation. Because it's mounted on four smooth-rolling casters, it can be repositioned for cleaning or maintenance, and during use, two of its casters can be locked to secure it in place.

  • Part of the PowerFry5 series
  • 3-battery freestanding unit with (3) 50-lb. fry tanks
  • SoftStart ignition system saves energy and minimizes scorching
  • FivePass heat transfer system yields 66 percent cooking efficiency and 78 percent thermal efficiency by uniformly distributing heat throughout oil
  • Set heat maintained with energy-efficient idle temperature mode
  • Flue temperature remains below 500 degrees F at maximum production rate
  • Hi-limit shutoff mechanism
  • Made of durable stainless steel
  • 6 fryer baskets with plastic-coated handles (2 per frypot)
  • (4) 6-in. adjustable casters (2 with locks)
  • Includes clean-out rod for drain and tank brush
  • 1 1/4-in. port ball-type drain valve
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • (3) 70,000 BTU

  • Electronic ignition
  • 3 melt modes
  • Operating temperature range: 200-390 degrees F
  • Digital character display in Fahrenheit or Celsius
  • Can cook with compensating time or actual time
  • 10 menu timers display product name and cook time
  • Items can be programmed offline using USB interface (software included)

  • Stainless steel mesh filter establishes 270-350-sq.-in. filtration area
  • Seamless, lightweight 18-ga. stainless steel filtration pan with 70-lb. oil capacity
  • Pump and motor circulate oil at 8 GPM
  • 1-touch button initiates filtration cycle
  • Drain valve interlock switch
  • Hands-free oil-return tube

  • 46 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
  • 7 A, 1/3 HP
  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • Powered by natural gas
  • 1 1/4-in. NPT common rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 70000
Capacity (lbs) 150
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 3
Oil Capacity (lb) 150
Oil Capacity/Fryer (lb) 50
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 46.5
Weight 717.00
