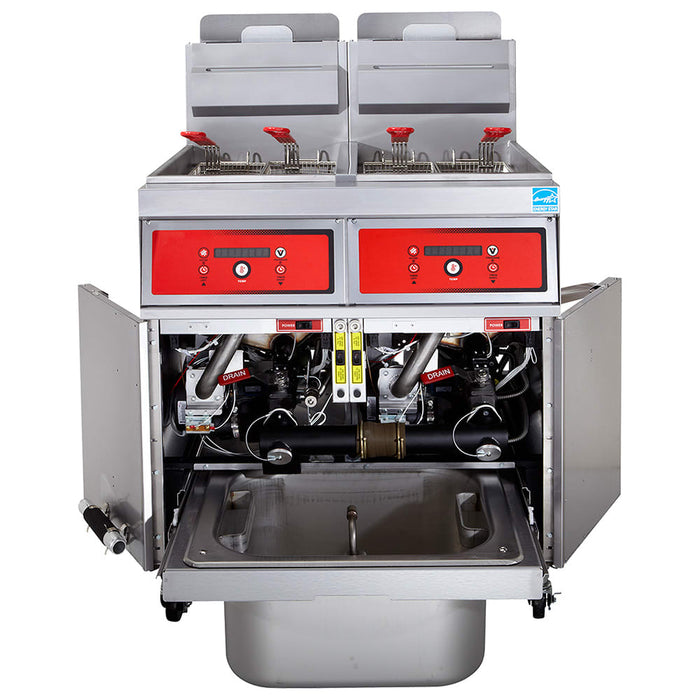

Vulcan 3VK85DF Gas Fryer - (3) 90 Lb Vats, Floor Model, Liquid Propane

SKU 3VK85DF-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$56,943.00
$56,943.00 - $56,943.00
Current price $56,943.00

The Vulcan 3VK85DF commercial gas fryer is built with three frypots that can each hold 90 pounds of shortening. Because each vat has independent controls, staff can independently set each frypots' temperature between 200 and 390 degrees Fahrenheit, choose from three melt modes, program two countdown timers, or initiate cooking with actual or compensating time to accommodate specific cooking requirements. Operators can quickly glance at the digital displaya€”which provides temperature readouts in Fahrenheit or Celsiusa€”to ensure they're set to the correct temperature. As part of the PowerFry5® series, its FivePass® heat transfer system effectively guides heat throughout oil to enhance thermal and cooking efficiency, and its SoftStart® ignition system saves energy by outputting 135,000 BTUs per hour to quickly heat oil upon startup. Once the unit reaches the set temperature, the idle temperature mode only outputs 18,894 BTUs per hour to maintain the heat.

For enhanced user comfort, this 63-inch-wide 30 13/100-inch-deep by 47 1/4-inch-tall unit establishes a 36 1/4-inch cooking height. Each frypot includes two fryer baskets with plastic-coated handles to minimize heat transfer and reduce the risk of users' hands getting burned. Its durable stainless steel body resists denting, scratching, rusting, and corroding to prolong its service life throughout high-volume kitchen use. When it needs to be moved for cleaning or maintenance, operators can simply push it to position because it's fitted with four 6-inch casters, and two of its casters can be locked for stability when the unit is in use.

To expedite maintenance routines, users can quickly initiate a filtration cycle with the Vulcan 3VK85DF high-efficiency gas fryer's KleenScreen PLUS® filtration system by pushing a button. Its drain interlock switch automatically turns off the burners as oil is drained, and the pump and motor circulate hot oil at 8 gallons per minute. The stainless steel mesh filter screen removes debris from both sides and can establish a filtration area as large as 350 square inches. As much as 110 pounds of oil can be drained into the stainless steel filtration pan, which is positioned on a pull-out drawer for easy access. The oil-return tube can direct filtered oil back to the tanks once the filter drawer is closed.

  • Part of the PowerFry5 VK85 line
  • 3-battery freestanding unit comprised of (3) 90-lb. frypots
  • 36 1/4-in. working height
  • Durable, rust-resistant stainless steel frypots, cabinet, and fryer baskets
  • 6 fryer baskets with plastic-coated handles (2 baskets per frypot)
  • (4) 6-in. adjustable casters (2 with locking mechanisms)
  • SoftStart ignition system outputs 135,000 BTUs per hour to quickly heat oil upon startup
  • FivePass heat transfer system yields 65 percent cooking efficiency and 78 percent thermal efficiency
  • Idle temperature mode outputs only 18,894 BTUs per hour to maintain desired heat
  • Flue temperature doesn't exceed 500 degrees F at maximum production rate
  • Hi-limit shutoff mechanism
  • Ships with tank brush and clean-out rod
  • 1 1/4-in. full-port ball-type drain valve
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • (3) 90,000 BTU

  • Matchless electronic ignition
  • Fahrenheit or Celsius digital character display
  • Operating temperature range: 200-390 degrees F
  • 3 melt modes
  • 2 countdown timers
  • Automatic boil-out mode
  • Can cook with compensating time or actual time

  • Assembled on a pull-out drawer base for accessibility
  • Stainless steel mesh filter screen can establish a filtration area as large as 350 sq. in.
  • Push-button filtration cycle activation
  • Pump and motor circulate oil at 8 GPM
  • Drain valve interlock switch
  • Stainless steel filtration pan with 110-lb. capacity
  • Hands-free oil-return tube

  • 63 in. W x 30 13/100 in. D (50 1/4 in. D when doors are opened) x 47 1/4 in. H
  • 7 A, 1/3 HP
  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • Powered by LP gas
  • 1 1/4-in. NPT common rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 90000
Capacity (lbs) 270
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 3
Oil Capacity (lb) 270
Oil Capacity/Fryer (lb) 90
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 63
Weight 968.00
