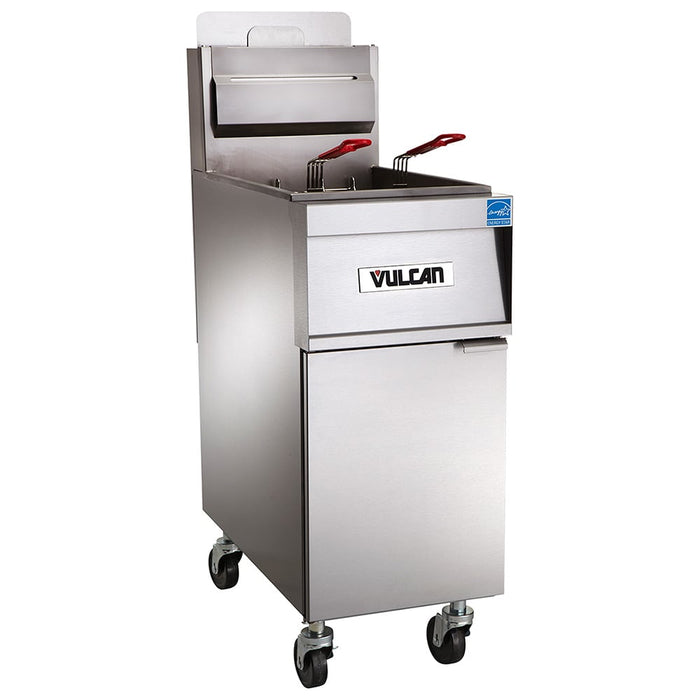

Vulcan 4TR65CF Gas Fryer - (4) 70 Lb Vats, Floor Model, Liquid Propane

SKU 4TR65CF-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$66,953.00
$66,953.00 - $66,953.00
Current price $66,953.00

The Vulcan 4TR65CF PowerFry3® high-efficiency gas fryer is a freestanding four-battery unit with four 70-pound-capacity vats. For user comfort, this 84-inch-wide by 30 1/8-inch-deep by 47 1/4-inch-tall fryer provides an ergonomic 36 1/4-inch working height and includes twin fryer baskets for each frypot. The baskets' handles are coated with plastic to minimize heat transfer when staff lift them from the hot oil. For lasting rust-resistant durability, the cabinet and vats are made of stainless steel. This fryer is fitted with four 6-inch castersa€”two of which can be lockeda€”for simple transport.

To streamline operation, each vat is built with computer controls. Users can upload 10 menu timers directly onto the unit or via a USB (software included). The frypots' temperatures can also be manually set from 200 to 390 degrees Fahrenheit, and staff can choose from three melt modes and select to cook with compensating or actual time. To ensure the vats are programmed to the correct settings, they each feature a digital character display with readouts in Fahrenheit or Celsius. Once temperatures and timers are set, the SoftStart® ignition system heats oil quickly while outputting only 80,000 BTUs per hour to save energy. To maximize efficiency, its ThreePass® heat transfer system evenly circulates heat throughout oil. The idle temperature mode maintains set temperatures by outputting only 5,083 BTUs per hour.

Designed to be used twice a day, the Vulcan 4TR65CF commercial floor-model fryer's KleenScreen PLUS® filtration unit can be activated with the push of a button. The drain interlock switch will automatically turn off the burners during draining, and the pump and motor circulate oil at 8 gallons per minute to expedite the filtration process. The stainless steel mesh filter screen filters from two sides, creating a filtration area as large as 350 square inches. As much as 110 pounds of oil can be held in the stainless steel filter pan, and the oil-return tube directs filtered oil back to the vats without user interference.

  • Part of the PowerFry3 and TR65 series
  • Freestanding unit with 4 batteries
  • (4) 70-lb. frypots
  • 36 1/4-in. working height
  • Durable, rust-resistant stainless steel cabinet and frypots
  • 8 fryer baskets with plastic-coated handles
  • SoftStart ignition system outputs 40,000 BTUs per hour while heating oil
  • ThreePass mechanism yields 72 percent thermal efficiency and 60 percent cooking efficiency
  • Idle temperature setting maintains set temperatures by outputting only 5,083 BTUs per hour
  • Flue temperature doesn't exceed 750 degrees F at maximum production rate
  • Hi-limit shutoff feature
  • Tank brush and clean-out rod included
  • 1 1/4-in. full-port ball-type drain valve
  • (4) 6-in. adjustable casters (2 with locks)
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • (4) 80,000 BTU

  • Operating temperature range: 200-390 degrees F
  • Digital character display can be set to Fahrenheit or Celsius
  • 10 menu timers display product name and cook time
  • Items can be programmed offline using a USB interface (software included)
  • Electronic ignition
  • Can cook with compensating time or actual time
  • 3 melt modes

  • Fitted on a pull-out drawer assembly
  • Seamless 18-ga. stainless steel filter pan with 110-lb. oil capacity
  • 1-touch button activates motor and pump
  • Motor and pump circulate oil at 8 GPM
  • Stainless steel mesh filter establishes a filtration area as large as 350 sq. in.
  • Drain valve interlock switch shuts off burners when drain valve is opened
  • Hands-free oil-return tube

  • 84 in. W x 30 1/8 in. D x 47 1/4 in. H
  • 6 A, 1/3 HP
  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
  • Powered by LP gas
  • 1 1/4-in. NPT common rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 70000
Capacity (lbs) 280
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 4
Oil Capacity (lb) 280
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry3®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 84
Weight 1136.00
