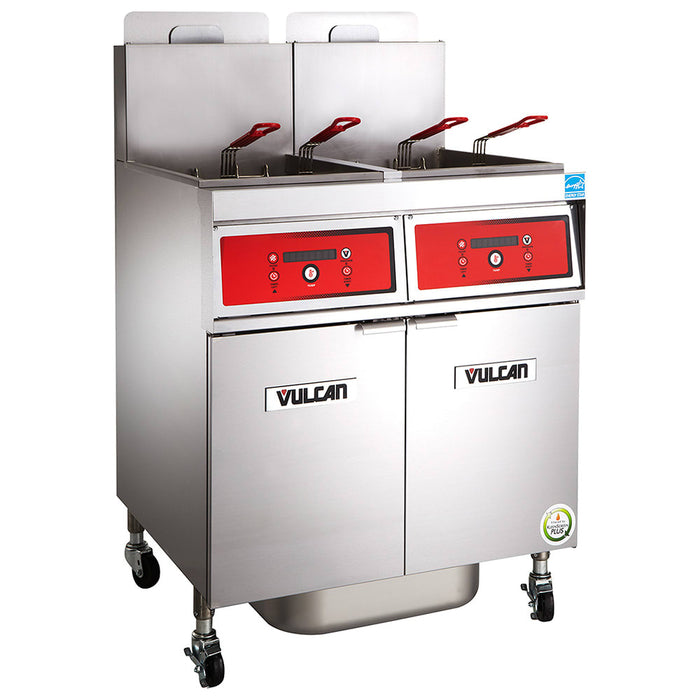

Vulcan 4VK65CF Gas Fryer - (4) 70 Lb Vats, Floor Model, Natural Gas

SKU 4VK65CF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$73,106.00
$73,106.00 - $73,106.00
Current price $73,106.00

Part of the PowerFry5® series, the 4VK65CF gas fryer is a four-battery unit powered by natural gas and featuring an integrated KleenScreen Plus® filtration system. This high-efficiency fryer has four fry tanks that hold 65 to 70 pounds of oila€”to maintain oil quality throughout business hours, its filtration system pumps 8 gallons of oil per minute. For ample coverage and screening, its stainless steel mesh screen filters an area between 270 and 350 square inches. To streamline cleaning after back-to-back frying, it has a 1 1/4-inch drain valve, tank brush, and clean-out rod.

The Vulcan 4VK65CF gas fryer maintains temperatures between 200 and 390 degrees Fahrenheit, and to adjust these temperatures, it has programmable computer controls. For a quick startup that also conserves energy, its SoftStart® ignition quickly heats the frypot while compensating with a lower BTU rate. Once it reaches set conditions, idle temperatures are maintained with just 4,802 BTU an hour. Its FivePass® heat transference system yields 68 percent cooking and 78 thermal efficiency to produce high volumes of breaded goods while reducing operating costs. To minimize fires should this unit exceed its temperature range, it has a hi-limit shut off.

  • Part of the PowerFry5 series
  • (4) 65-70-lb.-capacity vats
  • Twin baskets with plastic handles in each frypot (8 total)
  • Stainless steel cabinet and fry tank
  • Adjustable casters (2 swivel locking & 2 non-locking)
  • 1 1/4-in. full port ball type drain valve
  • Includes tank brush and clean-out rod
  • 47 1/8-in. working height
  • SoftStart ignition system
  • FivePass heat transfer system
  • (4) 80,000 BTUs

  • Temperature control: 200-390 degrees F
  • 10 menu timers
  • Offline USB programming
  • Digital display in Fahrenheit or Celsius
  • Hi-limit shutoff

  • Motor and pump circulate compound at 8 GPM
  • 18-ga. stainless steel filter pan
  • Stainless steel filter mesh screen
  • Boil-out bypass function
  • Interlock switch shuts off burners when oil draining starts

  • Tank size: (4) 19 1/2 in. W x 14 in. D
  • Baskets: (8) 9 1/4 in. W x 13 1/4 in. D x 6 in. H
  • Overall: 84 in. W x 30 1/8 in. D x 47 1/8 in. H
  • 120 V/60 Hz/1 ph, with NEMA 5-15 P
  • 7 A, 1/3 HP motor
  • Powered by natural gas
  • 1 1/4 NPT common rear gas connection

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 320000
Capacity (lbs) 280
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 4
Oil Capacity (lb) 280
Oil Capacity/Fryer (lb) 70
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 84
Weight 1136.00
