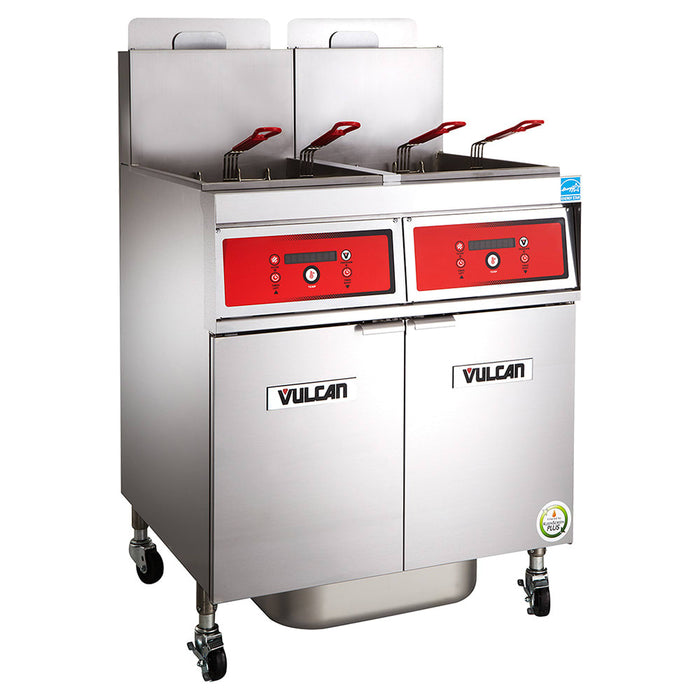

Vulcan 4VK85AF Gas Fryer - (4) 90 Lb Vats, Floor Model, Natural Gas

SKU 4VK85AF-NG
Original price $0.00 - Original price $0.00
Original price $0.00
$64,402.00
$64,402.00 - $64,402.00
Current price $64,402.00

A four-battery unit, the 4VK85AF gas fryer can hold 85 to 90 pounds of oil per frypot. For fluid, quick heating while conserving energy, its SoftStart® ignition system outputs 35,000 BTU per hour, and when the fryer reaches desired temperatures, it can maintain the heat with just 6,298 BTUs when idle. Its FivePass® heat transference system uniformly distributes heat to prevent scalding. This high-efficiency fryer is integrated with KleenScreen Plus® filtration to extend oil life and reduce premature refilling. Its 1/3-horsepower motor and pump work in tandem to circulate frying compound at 8 gallons per minute; for ample screening, its stainless steel filtration mesh screen covers 270 and 350 square inches.

This fryer is powered by natural gas and operated with independent solid-state analog controls that are located behind the door of each cabinet. Temperatures can be adjusted between 200 and 390 degrees Fahrenheit, and this unit has user-selectable fat melt modes to provide additional flexibility. Should it exceed safe temperatures, its hi-limit shut-off cuts off the burners.

The Vulcan 4VK85AF gas fryer measures 84 inches wide by 34 3/8inches deep by 47 1/4 inches high. Its fry tank and cabinet are constructed of durable stainless steel, which is ideal for high-intensity back-of-house kitchens. Each frypot includes metal twin baskets that feature plastic-coated handles to reduce heat transfer to employees' palms, and to maneuver this heavy-duty unit as needed, it sits on four 6-inch casters. For precise cleaning, a tank brush and clean-out rod are included.

  • Part of the PowerFry5® series
  • 85-90-lb. capacity per frypot
  • 4 frypots
  • 8 fry baskets with plastic-coated handles (2 per vat)
  • Stainless steel cabinet and fry tank
  • Adjustable casters (2 swivel locking & 2 non-locking)
  • 1 1/4-in. full port ball type drain valve
  • Includes tank brush and clean-out rod
  • SoftStart ignition system quickly heats oil at reduced BTU rate
  • FivePass heat transfer system
  • (4) 90,000 BTUs

  • Temperature range: 200-390 degrees F
  • Fat-melt modes are user selectable
  • Hi-limit shut off

  • Motor and pump circulate compound at 8 gal. per minute
  • 18-ga. stainless steel filter pan
  • Two-sided stainless steel mesh filter
  • Boil-out bypass function
  • 1 1/4-in. port ball type drain valve
  • Interlock switch

  • Tank size: (4) 19 1/2 in. W x 18 1/4 in. D
  • Baskets: (8) 8 3/4 in. W x 16 3/4 in. D x 6 in. H
  • Overall: 84 in. W x 34 3/8 in. D x 47 1/4 in. H
  • 120 V/60 Hz/1 ph, with NEMA 5-15 P
  • 7 A, 1/3-HP motor
  • 1 1/4 NPT common rear gas connection
  • Powered by natural gas

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 90000
Capacity (lbs) 360
Food Type Breaded
Frypot Style Tube Type
Gas Type NG
Heat Gas
NEMA 5-15P
Number of Fry Pots 4
Oil Capacity (lb) 360
Oil Capacity/Fryer (lb) 90
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 84
Weight 1236.00
