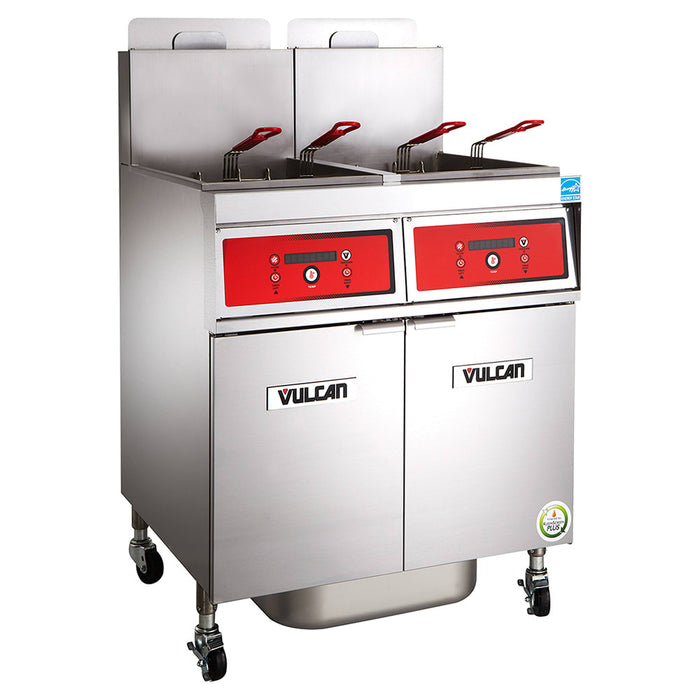

Vulcan 4VK85CF Gas Fryer - (4) 90 Lb Vats, Floor Model, Liquid Propane

SKU 4VK85CF-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$73,845.00
$73,845.00 - $73,845.00
Current price $73,845.00

The Vulcan 4VK85CF gas fryer features ten buttons, which are programmable through an offline USB interface (software included). Using its digital display, operators can set product names and time-frame-specific menu timers. This unit maintains set temperatures between 200 and 390 degrees Fahrenheit and features three melt modes; its digital display shows these temperatures in Fahrenheit or Celsius. With its hi-limit shutoff, it minimizes fire hazards should this unit exceed safe temperatures.

A four-battery unit, each vat holds 85 to 90 pounds of oil, and to streamline high volumes of breaded chicken, pork loin, fish, or shrimp, its FivePass® heat transfer system yields 65 percent cooking and 78 percent thermal efficiency. Ideal for conserving energy during start up, its SoftStart® ignition outputs 35,000 BTU per hour per vat to initially heat the oil. Once it reaches desired temperatures, it can maintain the heat with just 6,298 BTU per hour when idle.

The Vulcan 4VK85CF gas fryer measures 84 inches wide by 34 3/8 inches deep by 47 1/4 inches high, and its KleenScreen Plus® filtration system can be used to purify 270 square inches. Its stainless steel construction reduces dents and other irregularities to the structure, and to contain food as it's fried, each frypot includes twin metal baskets with plastic-coated handles that minimize heat transfer. This heavy-duty fryer sits on four 6-inch casters for smooth maneuvering.

  • Part of the PowerFry5® series
  • 85-90-lb. capacity per frypot
  • 4 vats
  • Twin baskets with plastic-coated handles (2 per frypot)
  • Stainless steel cabinet and fry tank
  • Adjustable casters (2 swivel locking & 2 non-locking)
  • 1 1/4-in. full port ball type drain valve
  • Includes tank brush and clean-out rod
  • Energy-efficient SoftStart ignition system quickly heats oil
  • FivePass heat transfer system evenly disperses heat into oil
  • (4) 90,000 BTUs

  • Temperature can be set between 200 and 390 degrees F
  • 10 menu timers
  • Offline USB programming
  • Digital display in Fahrenheit or Celsius
  • Hi-limit shutoff

  • Motor and pump circulate compound at 8 gal. per minute
  • 18-ga. stainless steel filter pan
  • Stainless steel filter mesh screen filters from two sides
  • Boil-out bypass function
  • 1 1/4-in. port ball type drain valve
  • Interlock switch shuts off burners during filtration

  • Tank size: (4) 19 1/2 in. W x 18 1/4 in. D
  • Baskets: (8) 8 3/4 in. W x 16 3/4 in. D x 6 in. H
  • Overall: 84 in. W x 34 3/8 in. D x 47 1/4 in. H
  • 120 V/60 Hz/1 ph, with NEMA 5-15 P
  • 7 A, 1/3-HP motor
  • 1 1/4 NPT common rear gas connection
  • LP gas powered

Specifications

Manufacturer Vulcan
Baskets 2
BTU per Fryer 90000
Capacity (lbs) 360
Food Type Breaded
Frypot Style Tube Type
Gas Type LP
Heat Gas
NEMA 5-15P
Number of Fry Pots 4
Oil Capacity (lb) 360
Oil Capacity/Fryer (lb) 90
Product Gas Fryers
Product Type Cooking Equipment
Rating Best
Series PowerFry5®
Special Features Casters Included - Uninstalled
Type Floor Model
Warranty 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in) 84
Weight 1236.00
