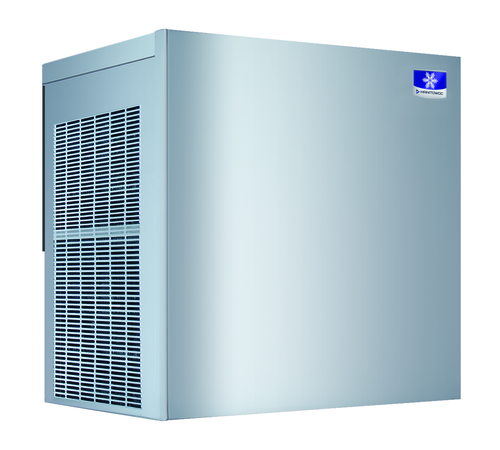

Manitowoc Ice RNP0620A 22" Nugget Ice Machine Head - 591 lb/24 hr, Air Cooled, 115v/1ph
The Manitowoc RNP0620A nugget ice machine produces 591 pounds of ice when ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. This unit dispenses chewable nugget-style ice, which is ideal for cooling soft drinks or crafting smoothies. For keeping internal conditions optimal, this nugget machine utilizes R290 refrigerant to minimize impact to the ozone layer. It flaunts a stainless steel exterior that's durable and corrosion resistant, and to extend its product life, it features high-load stainless steel bearings.
Overall, the Manitowoc RNP0620A ice machine head measures 22 inches wide by 235/8 inches deep by 26 inches high. It has a 3/8-in. water inlet and 1/2-inch drain to dispose of melted ice. When users install this unit, it requires a top and side clearance of 8 inches and back clearance of 5 inches. Because its condenser is self-contained, installation is simplified.
Ice Maker, nugget style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 591 lb/24 hours at 70°/50° (451 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R290A, 1 HP, NSF, cULus, CE, cETLus
*Image may not depict product color, inclusions or accessories.
Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
Important Prop 65 information for California residents.
Specifications
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 591 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.63 |
| Height (in) | 26 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 210.00 |
