Berner CHD10-3096E 96" Heated Air Curtain - (3) Speeds, White, 208v/3ph

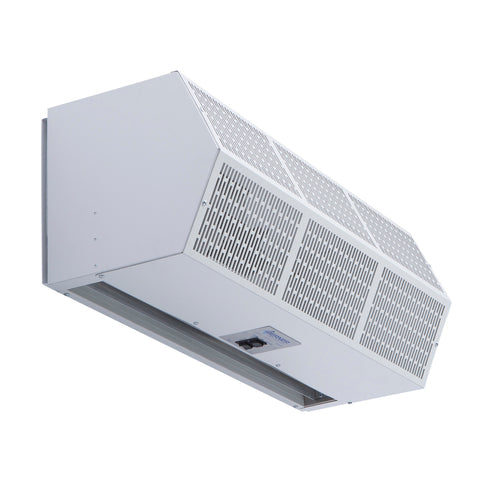

Heated with electricity to provide versatility, the Berner CHD10-3096E air curtain is equipped with a venturi open helical element with point suspension, which helps reduce the risk of thermal overload. Its galvanized steel frame provides sturdy support so it can endure high temperatures over time. The unit features an aluminum exterior cover finished in white for a cohesive look with surroundings. To create a heated or ambient air barrier, its three 1/2-horsepower motors have three adjustable speeds. For accessibility, the unit's heat can be turned on or off with a factory-powered switch. Designed for installation on a 10-foot-maximum door, it measures 1017/8 inches wide by 1453/100 inches deep by 149/100 inches high.
Commercial Series High Performance Air Curtain, 96" long, electric heat, (3) 1/2 hp three speed motors, for door height up to 10-feet high, aluminum housing with white finish, indoor/outdoor, 35.0kW, cULus, MADE IN USA
*Image may not depict product color, inclusions or accessories.
Important Prop 65 information for California residents.
Specifications
| Manufacturer | Berner |
| Color | White |
| Hertz | 60 |
| HP | 0.5 |
| Length (in) | 96 |
| No. of Speeds | 3 |
| Number of Motors | 3 |
| Phase | 3 |
| Product | Air Curtains |
| Product Type | Facility Maintenance |
| Series | Commercial Series |
| Temperature | Heated |
| Type | Heated |
| Voltage | 208 |
| Warranty | 2-year Limited Against Defects in Material & Workmanship |
| Weight | 210.00 |
