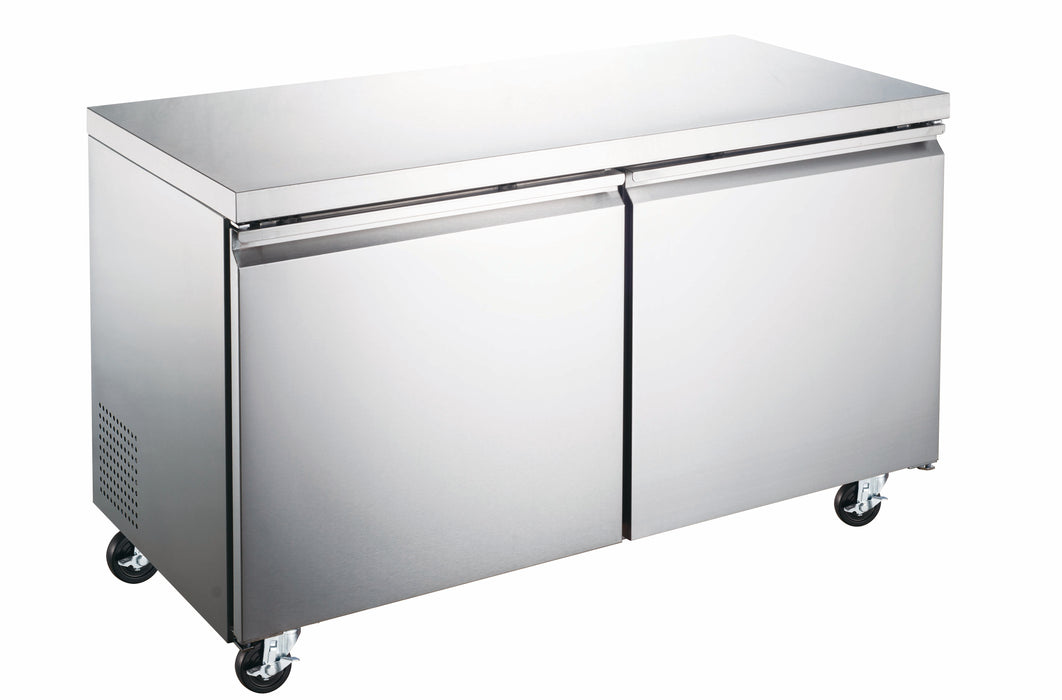

Compass PUC48 - 47 1/4" W Undercounter Freezer W/ (2) Section & (2) Door, 115v

The Compass PUC48F Undercounter Freezer is engineered to deliver reliable freezing performance for demanding commercial kitchen environments. This two-section undercounter freezer features durable stainless steel construction and self-contained refrigeration, making it ideal for restaurants, bars, cafeterias, and foodservice operations that require convenient frozen storage beneath work surfaces. With precise temperature control ranging from -8°F to 0°F and eco-friendly R290 refrigerant, the PUC48F maintains optimal freezing conditions while maximizing accessibility and operational efficiency.

Superior Freezing Performance

• Temperature Range -8°F to 0°F - Maintains optimal freezing temperatures for safe food storage
• 1/4 HP Compressor - Reliable self-contained refrigeration system
• R290 Refrigerant - Eco-friendly hydrocarbon refrigerant with low environmental impact
• Programmable Digital Display - Easy temperature monitoring and control with self-diagnostic capability
• Solid State Thermostat - Precise temperature regulation for consistent performance

Durable Commercial Construction

• Stainless Steel Exterior - Commercial-grade stainless steel for durability and professional appearance
• Aluminum Interior and Back - Corrosion-resistant aluminum construction for long service life
• Two-Section Design - Independent storage compartments for organized frozen inventory
• 47.25-Inch Width - Compact footprint fits standard undercounter applications

Convenient Access & Operation

• Self-Closing Doors - Two solid doors with self-closing mechanism for energy efficiency
• 90-Degree Stay-Open Feature - Doors remain open past 90 degrees for easy loading and unloading
• Full-Width Handles - Bent-metal handles provide comfortable grip and durability
• PVC Coated Shelves - Two heavy-duty wire shelves with protective PVC coating

Easy Maintenance & Mobility

• Easy-to-Access Condenser - Slide-out condenser simplifies cleaning and maintenance
• Cool Air Intake - Efficient airflow design for optimal refrigeration performance
• Factory-Installed Casters - Four swivel casters for easy positioning and repositioning
• Front Brake Casters - Two locking front casters ensure stability during operation

Electrical Specifications

• 115V/60Hz/1-Phase Operation - Standard electrical requirement for easy installation
• 3.1 Amp Draw - Energy-efficient operation
• NEMA 5-15P Plug - Standard plug type for convenient connection
• 10-Foot Power Cord - Extended cord length for flexible placement

Ideal Applications

This versatile undercounter freezer is perfectly suited for:

• Full-Service Restaurants - Frozen ingredient storage at point of use
• Bars and Taverns - Ice cream, frozen garnishes, and backup ice storage
• Cafeterias - High-volume frozen food storage beneath prep surfaces
• Hotels - Room service and banquet frozen storage
• Pizza Shops - Frozen dough and topping storage
• Catering Operations - Mobile frozen storage for off-site events
• Bakeries - Frozen dough and ingredient storage

Performance Specifications

• Model: Compass PUC48F
• Configuration: Two-section undercounter freezer
• Width: 47.25 inches
• Doors: Two solid hinged doors with self-closing feature
• Temperature Range: -8°F to 0°F
• Compressor: 1/4 HP self-contained, rear-mounted
• Refrigerant: R290 Hydrocarbon
• Shelves: Two PVC coated wire shelves
• Exterior: Stainless steel
• Interior: Aluminum with aluminum back
• Temperature Control: Solid state thermostat with programmable digital display
• Electrical: 115V/60Hz/1-Phase, 3.1 Amps
• Plug Type: NEMA 5-15P
• Cord Length: 10 feet
• Casters: Four factory-installed casters with two front brakes
• Condenser: Easy-to-access slide-out design

Why Choose the Compass PUC648F?

The Compass PUC648F Undercounter Freezer combines professional-grade freezing performance with practical design features that enhance daily kitchen operations. The self-contained refrigeration system with 1/4 HP compressor maintains precise temperatures between -8°F and 0°F, while the eco-friendly R290 refrigerant ensures efficient, environmentally responsible operation. The programmable digital display with self-diagnostic capability provides easy temperature monitoring and alerts operators to potential issues before they become problems.

Built with commercial-grade stainless steel exterior and corrosion-resistant aluminum interior, the PUC48F withstands the rigors of high-volume foodservice environments. The two-section design with independent solid doors provides organized storage, while the self-closing mechanism with 90-degree stay-open feature balances energy efficiency with user convenience. The full-width bent-metal handles offer comfortable grip and durability for thousands of daily open-close cycles.

Maintenance is simplified through the easy-to-access slide-out condenser design, allowing kitchen staff to perform routine cleaning without specialized tools or extensive downtime. The factory-installed casters with two front brakes provide both mobility for repositioning and stability during operation. The two PVC-coated wire shelves offer adjustable storage options while resisting corrosion and damage from frozen products. With standard 115V electrical requirements and a 10-foot power cord, installation is straightforward in virtually any commercial kitchen layout.

Maximize your kitchen's frozen storage capacity with the Compass PUC48F Undercounter Freezera€”engineered for reliability, built for performance, designed for convenience.
