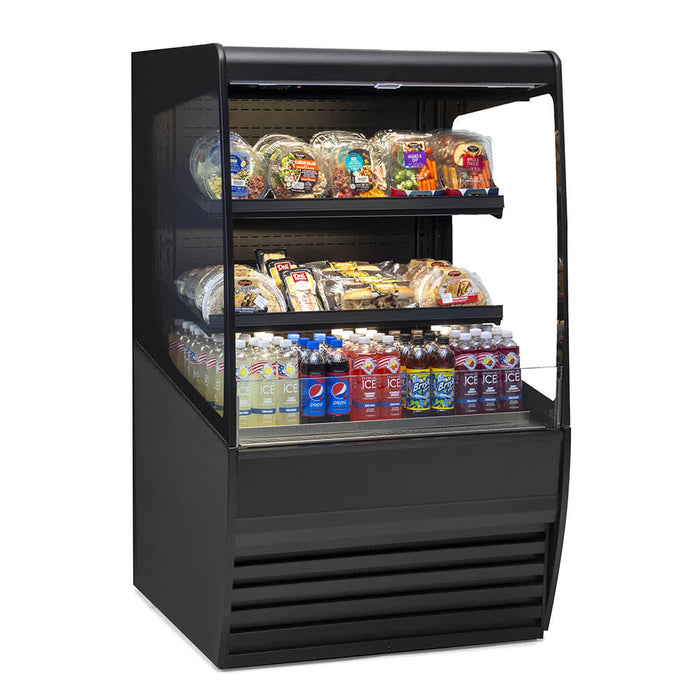

Federal VRSS3660S-SLD 36" Vision Series Vertical Open Air Cooler W/ (3) Levels, 120v
The Federal VRSS3660S-SLD Vision series open-air merchandiser is a vertical, self-service unit designed for slide-in counter installation. With a 36-inch-wide cabinet and square end design, it offers a compact footprint with clear product visibility. The three-level interior includes two adjustable black metal shelves with black price tag molding, which can lie flat or tilt downward at 10 degrees for product presentation. A black interior and stainless steel display deck enhance visual contrast, while tempered glass upper end panels add durability without obstructing sightlines. A 3500K LED top light brightens the display area, and the base frame is constructed of black powder-coated steel with adjustable-height casters to support installation flexibility.
The Federal VRSS3660S-SLD merchandiser operates with a self-contained refrigeration system using R290 hydrocarbon refrigerant. Its temperature is controlled electronically and displayed via a digital thermometer, maintaining a consistent temeprature between 38 and 40 degrees Fahrenheit. A clear coil on-demand defrost system and coated evaporator coil help regulate cooling cycles and resist corrosion. The condenser is designed for rear air intake and discharge, promoting efficient airflow in tight installations.
Vision Series Slide-In Counter Display Cases, self-contained refrigeration, self-service, 36"W x 33"D x 71.6"H, square ends, electronic temperature control, digital thermometer, (2) adjustable black metal shelves with price tag molding, LED top light, coated evaporator coil, black interior, stainless steel display deck, tempered glass upper end panels, black powder coated base frame, adjustable height, R290 refrigerant, 3/4 HP, 120v/60/1-ph, 12.7 amps, NEMA 5-20P, cULus, UL EPH Classified, DOE 2017 Compliant
*Image may not depict product color, inclusions or accessories.
Important Prop 65 information for California residents.
Specifications
| Manufacturer | Federal |
| Color | Specify |
| Compressor Type | Self Contained |
| Depth (in) | 34.45 |
| Design | Vertical |
| Height (in) | 71.62 |
| Hertz | 60 |
| NEMA | 5-20P |
| Number of Levels | 3 |
| Phase | 1 |
| Product | Open Air Merchandisers |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Vision Series |
| Special Features | Adjustable Shelf Angle |
| Special Features | Black Interior |
| Special Features | LED Lighting |
| Special Features | Night Curtain |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 36 |
| Weight | 535.00 |
