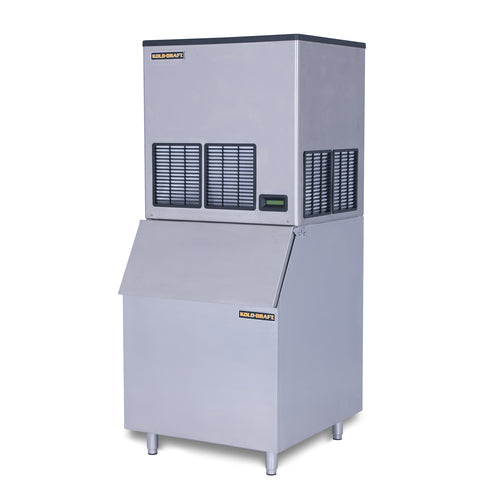

Kold-Draft GTX564AC 30" Full Cube Ice Machine Head - 502 lb/24 hr, Air Cooled, 208-230v/1ph

SKU GTX564AC
Original price $0.00 - Original price $0.00
Original price $0.00
$6,651.00
$6,651.00 - $6,651.00
Current price $6,651.00

The Kold-Draft GTX564AC X-Series large-cube ice machine can produce 502 pounds of ice daily and has a self-contained, air-cooled condenser. Durability is provided by its stainless steel construction, and to save space, it can be stacked with other X-Series ice makers. It uses R404A refrigerant to remove heat from the box and create full-cube ice, which is perfect for bags, tall drinks, craft cocktails, and pitchers. Full cubes melt more slowly than other ice types without taking up as much room as smaller ice types. An LCD display helps staff monitor the operating status, and the plastic top and louvers can be removed. All corners are rounded and can be wiped down quickly.

The Kold-Draft GTX564AC ice maker has a built-in fan and motor that pull cool air through the condenser. Its ice level probe senses when the bin is full and pauses operation to prevent overflow. This ice machine has an innovative horizontal evaporator on a molded water plate as well as separate refrigerated cells that pump in water and freeze it from the outside. Along with ensuring slow-melting ice, this process prevents impurities and minerals from getting trapped. Full-cube ice is larger and stronger than other ice forms.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Ice Maker, cube-style, air-cooled self-contained condenser, production capacity up to 502 lbs/24 hours at 70°/50° (405 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 208-230v/60/1-ph, 9.3 amps, cETLus, Made in USA

*Image may not depict product color, inclusions or accessories.

WARNING: Important Prop 65 information for California residents.

Specifications

Manufacturer Kold-Draft
24 Hr. Production (lb) 502
Compressor Type Air Cooled
Depth (in) 25.7
Height (in) 30.7
Ice Type Full Cube
Phase 1
Product Ice Machine Heads
Product Type Ice Makers & Bins
Rating Better
Refrigerant R404A
Series X
Suggested Use Commercial
Voltage 208/230
Warranty 3-year Parts & Labor; 5-year Parts for Compressor & Evaporator
Water Inlet (in) 0.75
Width (in) 30
Weight 228.00
