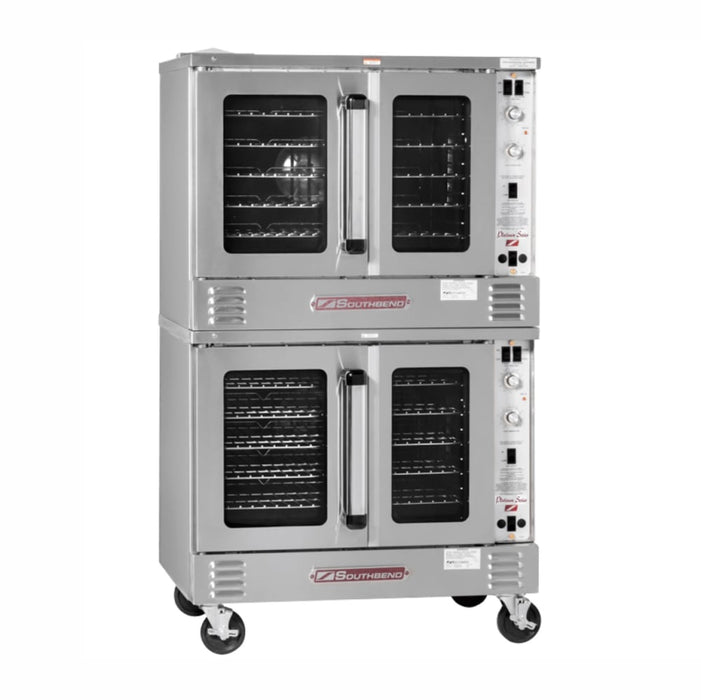

Southbend PCE22B/SD-V Platinum Ventless Bakery Depth Double Full Size Convection Oven - 11kw, 208v/1ph
Overall, the Southbend PCE22B/SD-V bakery-depth double full-size oven measures 38 inches wide by 43 1/2 inches deep by 64 inches high. The double-deck design increases its production capacity and holds five plated racks on 11-position rack guides with 1 5/8-inch spacing. The interior is finished in porcelain enamela€”a heat-insulative material. The stainless steel construction of the front, sides, back, and rear jacket create a durable, corrosion-resistant design. The doorsa€™ handles stay cool to the touch to minimize burn or scald hazards, and the two cavities are simple to see as theya€™re illuminated with high-temperature recessed lights.
A side-mounted control panel is placed away from the Southbend PCE22B/SD-V bakery deptha€™s heating elements. This control panel provides the following functions: an adaptable fan mode, fan speed, and power switch. It reaches between 140 and 500 degrees to cook multiple kinds of products such as meat or pastries. This panel pulls out 17 inches for simple maintenance and service when needed.
Specifications
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 22 |
| Number of Ovens | Double |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1189.00 |
