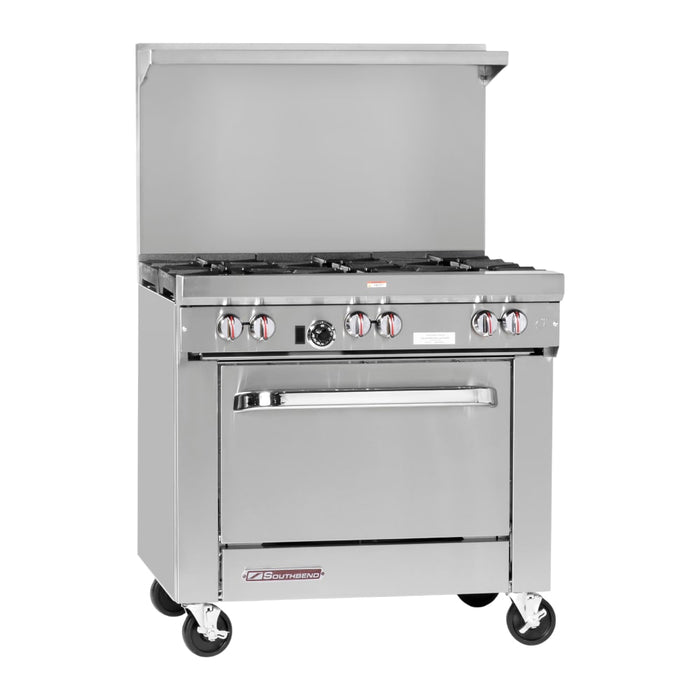

Southbend S36D-1GL 36" 4 Burner Gas Range W/ Griddle & Standard Oven, Liquid Propane
The Southbend S36D-1G LP S-series gas range from has four open-top burners, a 12-inch griddle, and a standard oven. The 36-inch wide range has a 4-inch front rail that protects the user from burns, keeps spills and debris off the knobs, and offers a surface to plate food on. The individual cast iron grate tops are removable, and the rear grate holds a stock pot up to 14-inches. Crumbs are caught with a drawer that sits under the burners, keeping the surface clean. The metal knobs have a red stripe each that makes reading the temperature easier for the user. The lower hinged valve panel provides easy access to gas valves for maintenance.
The oven has a porcelain-enameled interior to prevent corrosion and make it easy to clean. It also includes a rack that is adjustable to two positions. Producing up to 35,000 BTUs, a heavy duty U-shaped burner heats up the oven. The temperature range is 175 to 550 degrees Fahrenheit. If the pilot light goes out, a flame failure safety device shuts off the gas flow. The sides and top of the oven are insulated with block type rock wool with a baffle assembly. The Southbend S36D-1G LP S-series gas range is heated with propane gas.
Specifications
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 24000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | LP |
| Griddle Location | Left |
| Griddle Width (in) | 12 |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 24000 |
| Plate Thickness (in) | 1/2 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | S-Series |
| Standard Oven BTU/hr | 35000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 165000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 535.00 |
