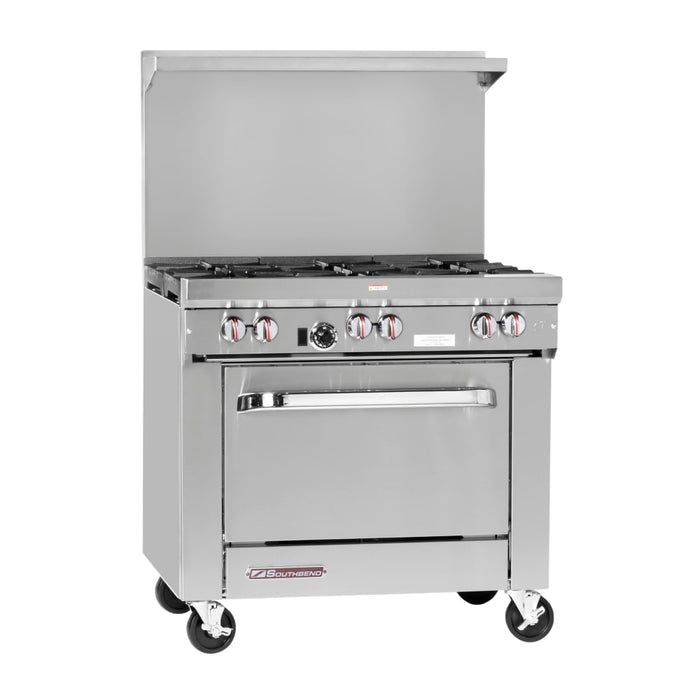

Southbend S36D-3G 36" Gas Range W/ Full Griddle & Standard Oven, Liquid Propane

SKU S36D-3G-LP
Original price $0.00 - Original price $0.00
Original price $0.00
$6,821.00
$6,821.00 - $6,821.00
Current price $6,821.00

The Southbend S36D-3G S-Series gas range has a griddle and one standard oven that is equipped with a heavy-duty, U-shaped burner. Operators can monitor the temperature with a snap-action thermostat, which has an adjustable range of 175 to 550 degrees Fahrenheit. For corrosion resistance, the oven's interior is enameled, and to retain heat, it is insulated with block-type rock wool. This oven can accommodate various product heights because of its removable rack and two-position rack guides.

Constructed of stainless steel, the Southbend S36D-3G gas range has a sturdy front, sides, shelf, and front rail that withstand heavy use. Its 4-inch front rail has welded end caps, while the metal control knobs are striped to ensure the proper temperature setting. The burners are made of painted cast iron, and underneath the burners, crumbs are caught in a one-piece drawer, which is removable for cleaning. For effective heat distribution, its 1/2-inch-thick griddle plate is constructed of steel and has four burners.

Specifications

Manufacturer Southbend
Additional Info Contact Customer Service for altitudes above 2,000 feet
Application Restaurant
Base Standard Oven
BTU / Burner 24000
Burner Configuration Standard
Burner Style None
Burner Type(s) None
Controls Manual
Depth (in) 34
Gas Inlet Size 0.75
Gas Type LP
Griddle Location Full
Griddle Width (in) 36
Heat Gas
Height (in) 59.5
Installation Type Freestanding
Max Temp 550
Number of Burners None
Number of Ovens Single
Plate Thickness (in) 1/2
Product Gas Ranges
Product Type Cooking Equipment
Rack Positions per Standard Oven 2
Racks per Standard Oven 1
Range Configuration Griddle
Rating Better
Series S-Series
Standard Oven BTU/hr 35000
Standard Oven Dimensions 26"W x 26.5"D x 14"H
Total BTU 99000
Vent Backriser w/ hi-shelf
Warranty 1-year Limited Parts & Labor
Width (in) 36
Weight 660.00
